110v 220v Ac Time Delay Adjustable Ambient Light Adjustable Wall Mount Pir Motion Sensor Light Switch 017

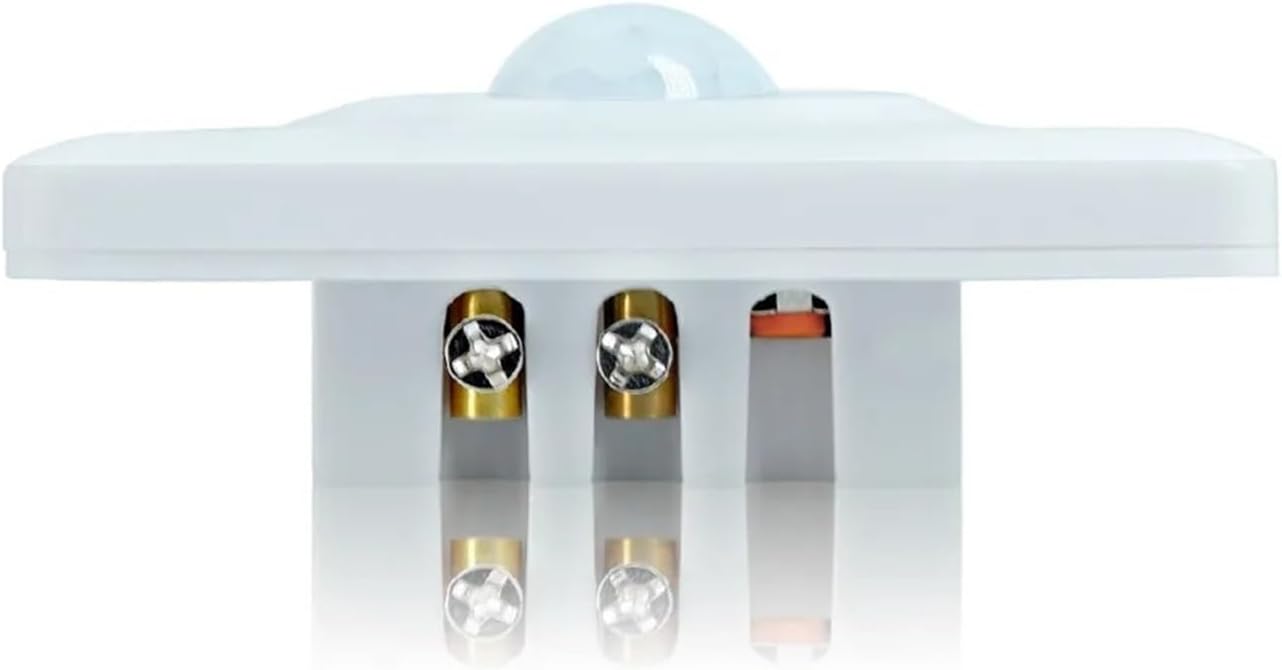

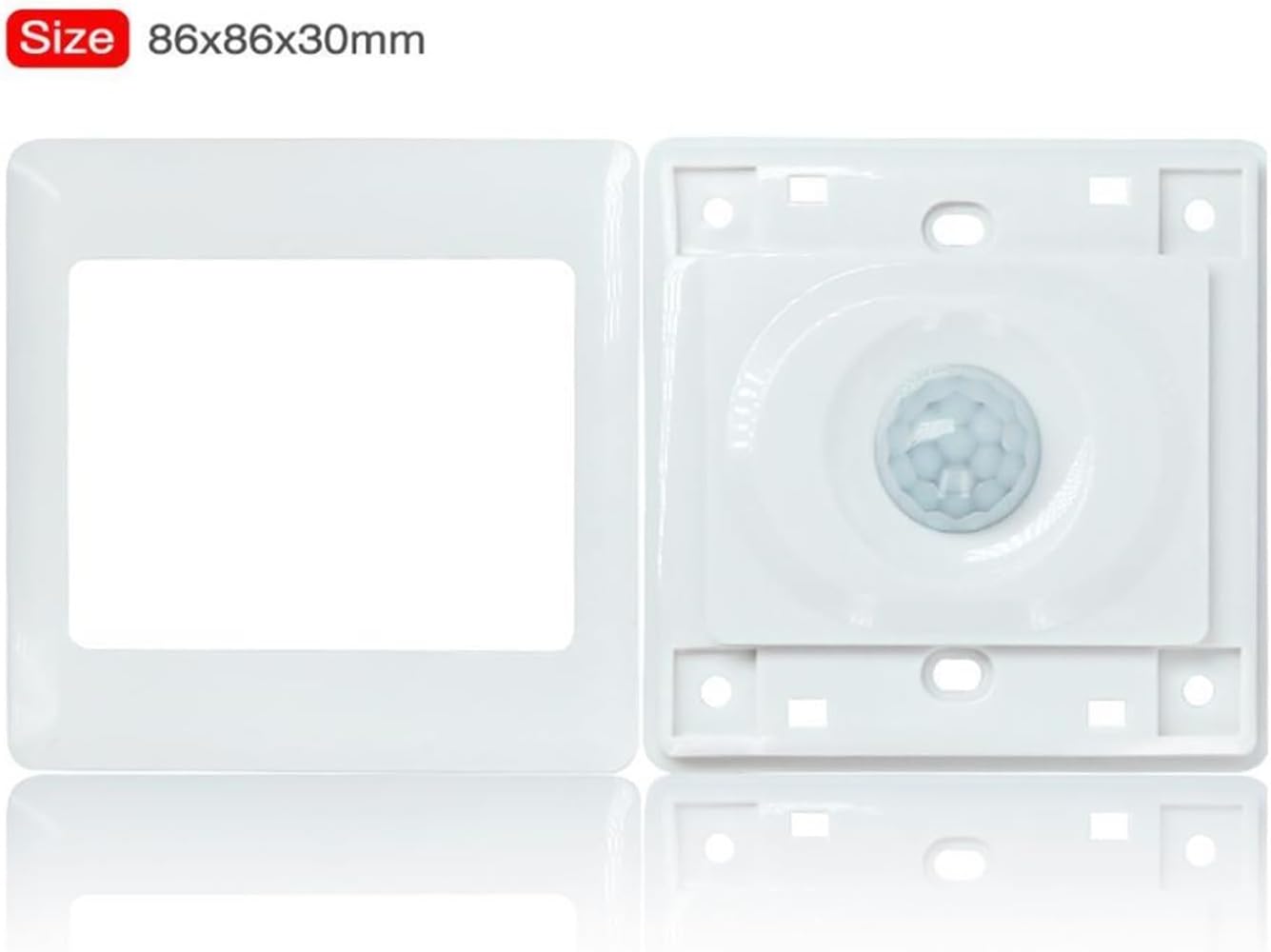

110V 220V AC time delay adjustable ambient light adjustable wall mount PIR motion sensor light switchDescription:The PIR Sensor Switch detects PIR body heat and automatically switches the light ON and turning it OFF again , PIR sensor switch Combined intelligent control and energy saving, it wildly used in aisles, basements, restrooms, etc.Performance Characteristics:1. Main supply live line connect LIN, Null line connect between LOUT and N, without any accessories, internal without .2. The switch suitable for various types of load (all kind of Incandescent lamp, energy saving lamps , fluorescent lamps LED fluorescent lamp), load power200W.3. Adopted specific integrated circuit, stable work, strong anti-interference capability.4. Reliable quality, switch life can reach more than 20 million times.Specification:Operating voltage: 110VAC~250VAC 60Hz<;0.02WLoad power: 1~100W Brightness sensitivity: 5~500lux is adjustableDelay time: 10~350 secs is adjustableInduction distance: 5~7m.Induction angle: about 120 °sensing method:passiveSize: 86*86*30mm (type 86 standard wall switch size)Installation Circuit:Note:1. Installation strictly follow product wiring diagram, do not short circuit.2. Recommend one switch control one load, when the load is too large or to small.3. Keep distance between switch and load more than 0.3 meter, do not exposed to direct sun light ,don't put it in rapid environmental changes(eg: big wind).4. Don't conduct the hot line job, please electrify only after that it has been installed5. The switches will have starting time after connecting the electricity. Means it will have 1-2mins don't work normally after connecting the electricity, that's because all PIR sensor and IC should have starting time.. After 1-2mins, It will work in right way. If normally using, switches will always connect the electricity, so don't need worry about this.6. The infrared switches are used to detect the variance of the difference between the human body temperature and the environment temperature, and the sensitivity will be affected by all kinds of factors such as the environment temperature, the walk speed and direction. ( the induction distance is about 3~5 meters as the environment temperate higher in summer, and about 5~7M in winter as the environment temperate lower in winter, that is normal).7. The switches use the unit doublet probes, when walk from left to right or from right to left, the sensor will be sensitive. But when walk from the front or from top to down or even from bottom to top, the sensor will be insensitive or does not work. To meet the shortfall, the induction field has been increased, the switches have used the circular lens, so that all the four sides of the probe will be sensitive, but the up-down direction is still more sensitive than the right-left direction, therefore, when install the switch, should make the right-left direction to be parallel with the direction of human movement as possible.Material : PlasticSwitch Type : Sensor SwitchModel Number : 017Features : PIR motion sensor switchItem Type : SWITCHESIs Smart Device : NoOrigin : Mainland ChinaOperating voltage : 110VAC~250VAC 50/60Hz<;0.02WLoad power : 1~100WBrightness sensitivity : 5~500lux is adjustableDelay time : 10~350 secs is adjustableInduction distance : 5~7mSensor angle : about 120 °sensing method : passiveSize : 86*86*30mm (type 86 standard wall switch size)

• LGYMSZSS 110v 220v Ac Time Delay Adjustable Ambient Light Adjustable Wall Mount Pir Motion Sensor Light Switch 017
