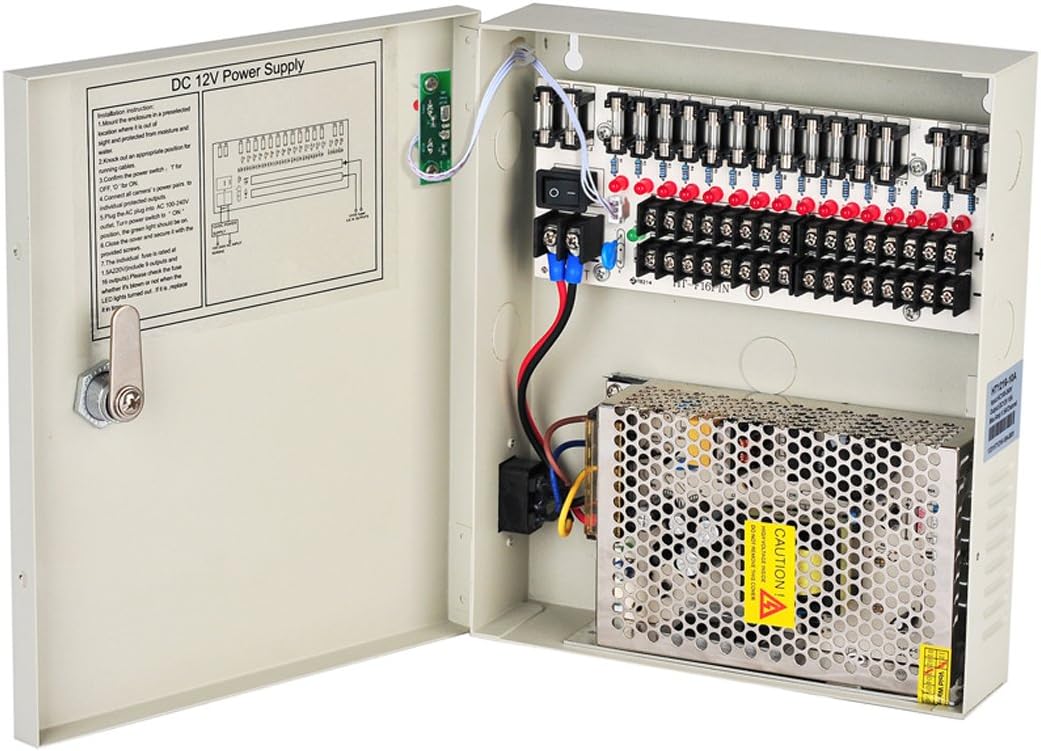

18 Channel Output 12V DC 10A Auto Reset Fuse Distributed Power Supply Switch Box for CCTV DVR Security Camera

1, General Protection: Individual PTC(Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working; 2, Short Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit; 3, High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device; 4, Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state; 5, Application: CCTV Camera, PTZ, IR Illuminators, Video Process,Access Control, etc Input Voltage Range AC90V-264V Input Frequency Range 50Hz-60Hz Output Voltage Range DC12V+/-5% Output Current 10 Ampere Output Power 120 Watt Output Ripple&Noise ≤51MV Output Efficiency ≥81% Output Channel 18Channel Output Fuse Type PTC Output Fuse Rating 1.1A Environment Operatiing Amb.Temp -30℃~45℃ 20%~90%RH Envionment Storage Temp -40℃~85℃ 10%~95%RH Product Dimension 246*208*52mm Product Weight 1.63 Kg Transmission Distance 100M

• Input Voltage : AC100-240, 50/60 Hz
• Out Put Voltage : DC 12 V 18Channel
• Out Put Current : 10A
• Fuse Type : PTC Resetable
• Fuse Rating : 1.1 A - Indoor Use Only
