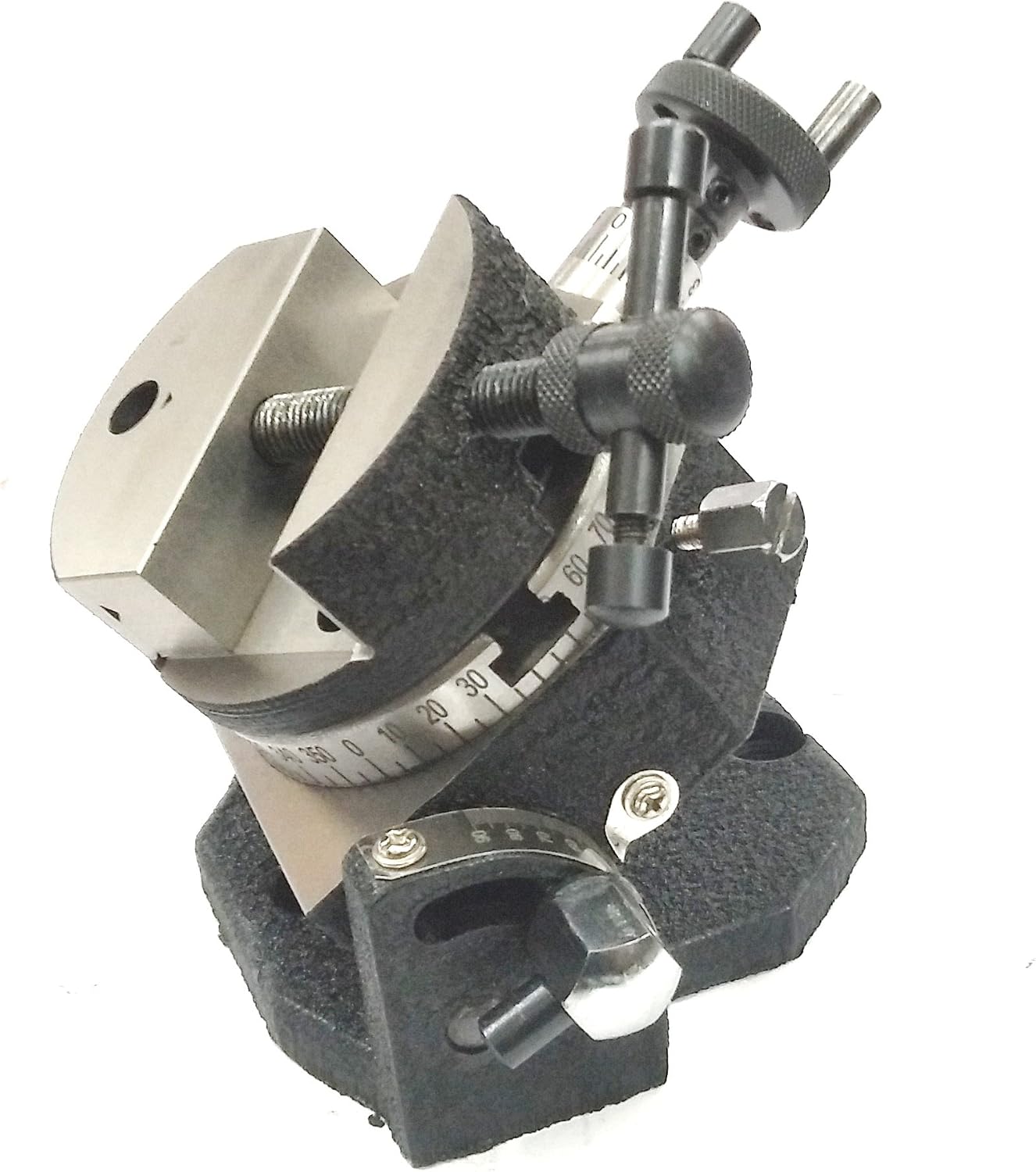

3" Inches/ 80 MM Tilting Rotary Table With Round Vice,er20 Collet Adaptor, Tailstock & Chuck W/Back Plate + Fixing T Nut Bolts- Milling Indexing Tools (With 65 MM 3 Jaws Self Centering Chuck)
Product details
| Management number | 230029919 | Release Date | 2026/05/31 | List Price | $96.00 | Model Number | 230029919 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features to tilts between 0- 90 degrees & can be locked at any position. Table diameter 80 mm . Table is graduated 360 degrees. Worm gear ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 degrees. Center height in vertical position: 2-5/8" (66 mm approx.) without chuck assembly. Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in horizontal & vertical position. Set includes a 65 mm 3 jaws self centering chuck with back plate & t nuts details of vice : round vice dimensions: diameter : 80 mm, jaw width: 54 mm, jaw depth: 20 mm, jaw opening : 32 mm, height 29 mm
- New Precision Quality 3"/ 80 Mm Tilting Rotary Table, Features Tilted & Locked At Any Angle Btw 0- 90 Degrees .
- Supplied With A Round Vice, Er20 Collet Adaptor, A 65 Mm 3 Jaws Self Centering Chuck W/back Plate & Fixing T Nuts Bolts,& Tailstock
- Round Vice Dimensions: Diameter : 80 Mm, Jaw Width: 54 Mm, Jaw Depth: 20 Mm, Jaw Opening : 32 Mm, Height 29 Mm
- Worm Gear Ration Is 1:36, Which Means 1 Handle Rotation Shall Turn The Table By 10 Degrees.
- Can Be Mounted Horizontally And Vertically Both.
| ASIN | B07D3P84CD |
|---|---|
| Capacity | 65 Millimeters |
| Lock Type | Self Centering |
| Brand Name | ASSORTS |
| Handle Type | hand-tightened |
| Manufacturer | ASSORTSMACHINETOOLS |
| Item Diameter | 80 Millimeters |
| Material Type | CASTE IRON BODY & ALLOY TOOL STEEL |
| Compatible Devices | Milling Machine |
| Included Components | ROTARY TABLE, ER20 COLLET ADAPTOR, CHUCK WITH BACK PLATE & FIXING NUTS , TAILSTOCK |
