3 Row Aluminum Radiator for 1955-1959 Chevy Truck Pickup Suburban Apache GMC, Radiators with Electric Fan Shroud Thermostat Kit 1956 1957 1958

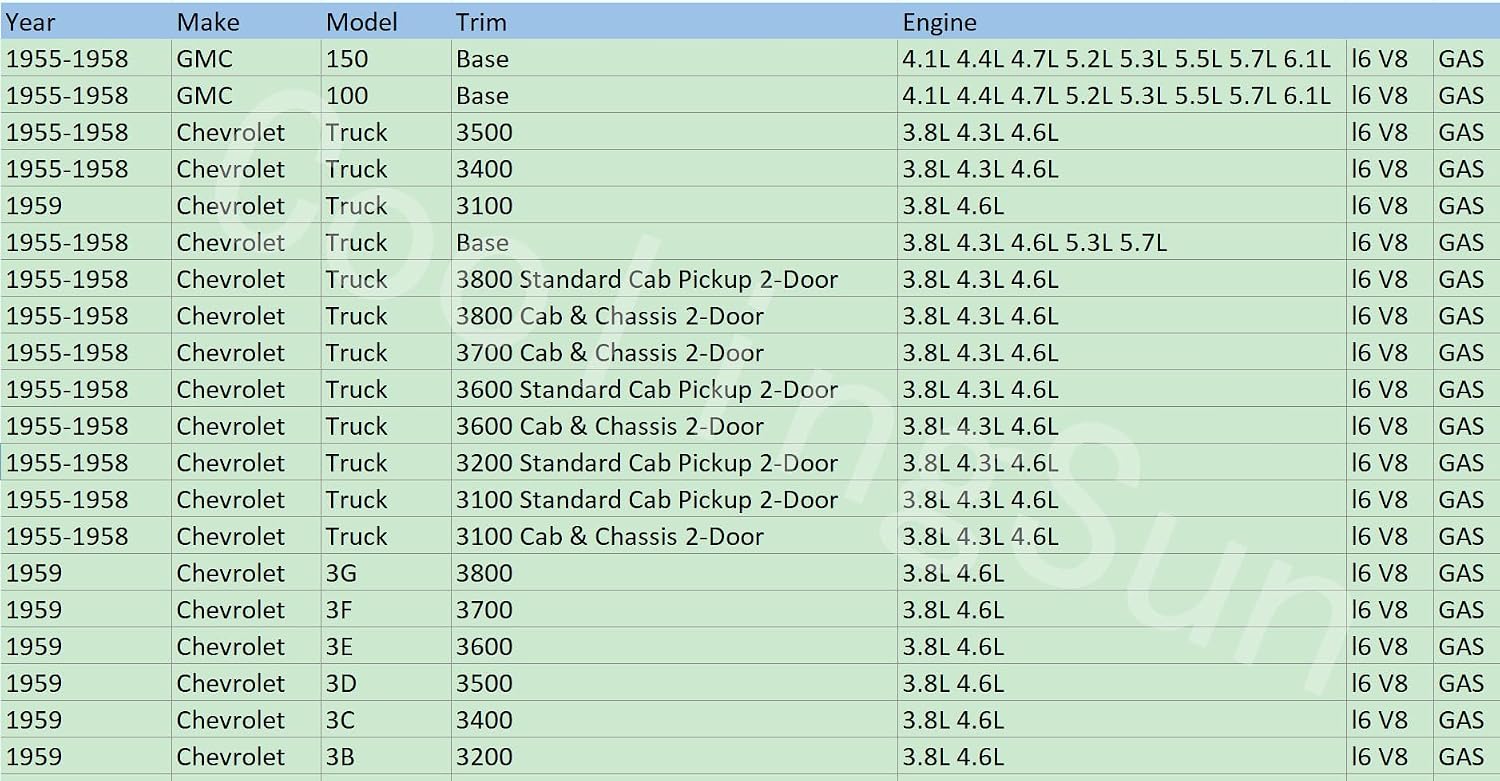

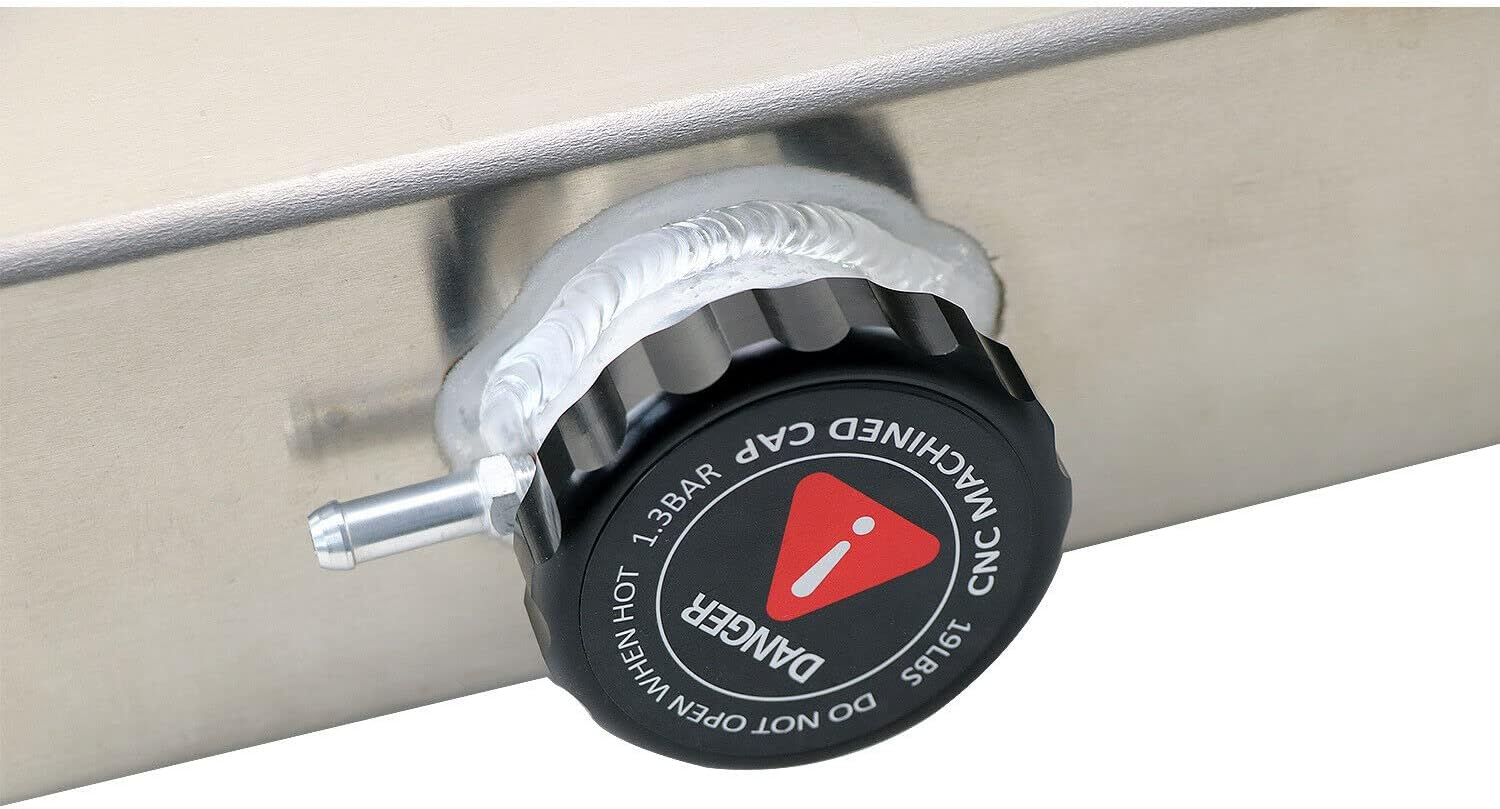

Vehicle Fitment: For 1955-1959 1956 1957 1958 Chevy 3100 TRUCK PICKUP 3.8 l6 4.3 4.6 V8 For 1959 Chevy 3B 3200/3C 3400/3D 3500/3E 3600 /3F 3700/3G 3800 3.8 l6 4.6 V8 For 1955-1958 1956 1957 Chevy Truck 3100 3200 3400 3500 3600 3800 3.8 l6 4.6 5.7 V8 Radiator Details: Type: 3 Core Core Thickness: 1.73" Core/ Tank Material: All Aluminum Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain With Transmission Cooler Transmission: Automatic and Manual Delivery: Local Delivery Fitment Type: Direct Replacement Style: Downflow Performance: Up to 30%-45% Cooling FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16"Fan (Includes mounting kits) 1 X Thermostat Relay KitIf you need detailed installation instructions for fans and relays, please feel free to contact me!COOLINGBEST Radiador: 1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect! 2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. 3. Additional with thermostat

• Direct fit for 1955-1959 Chevy/GMC 100/150 Truck Pickup Apache
• Core size: 19.37”H x 21.57”W x 1.73”T; Overall size: 26.18”H x 26.96”W x 5.62”T; Inlet/ outlet size: 1.5”/ 1.77"（Measurement standard: the direction of the core strip is high）
• Trans cooler specifications: ￠26×205×G1/4（Z）
• Direct OE replacement with drop-in precise fitment and easy installation
• Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality
