4040 CNC Router Machine with Linear Guide & Ball Screw Motion, Achieve ±0.005mm Accuracy for High Precision Metal Aluminum Copper Wood Acrylic PCB Engraving
$870.79
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.osteopathymasters.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$870.79
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.osteopathymasters.com
Free 30-day returns Details
Product details
| Management number | 210156963 | Release Date | 2026/04/02 | List Price | $348.32 | Model Number | 210156963 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Effortless Metal Engraving: Unlock the potential of your desktop with the 4040 CNC Router. Easily machine 2mm aluminum and other materials with precision
- Unique Work Area Design: "Aluminum Alloy Base + MDF Spoil Board" dual-layer structure prevents direct contact between the workpiece and the worktable, effectively reducing platform wear
- Refined Precision: Witness remarkable precision as fine as 0.005 mm. This is powered by our advanced dual linear guide and ball screw system on every axis, delivering superior accuracy, rigidity, and load capacity for metalworking
- Rapid and Precise Closed-Loop Motors: The X, Y, and Z axes are equipped with Nema23-76 closed-loop stepper motors, delivering 2.2 Nm of torque and rapid travel speeds of up to 3500 mm/min. Their exceptional stall prevention capability ensures highly efficient and accurate performance
- Upgraded Φ65mm Trimming Router: Features a specifically upgraded 710W trimming router and an ER11-6mm collet, with 6 speed settings (6000-30000 RPM). It can easily engrave and cut metals like aluminum
- Assembly Time Reduced to 10 Minutes: The main components are designed as pre-assembled modules with a clear cable management. Coupled with detailed assembly and wiring video guides, the installation process is significantly streamlined, effectively reducing complexity

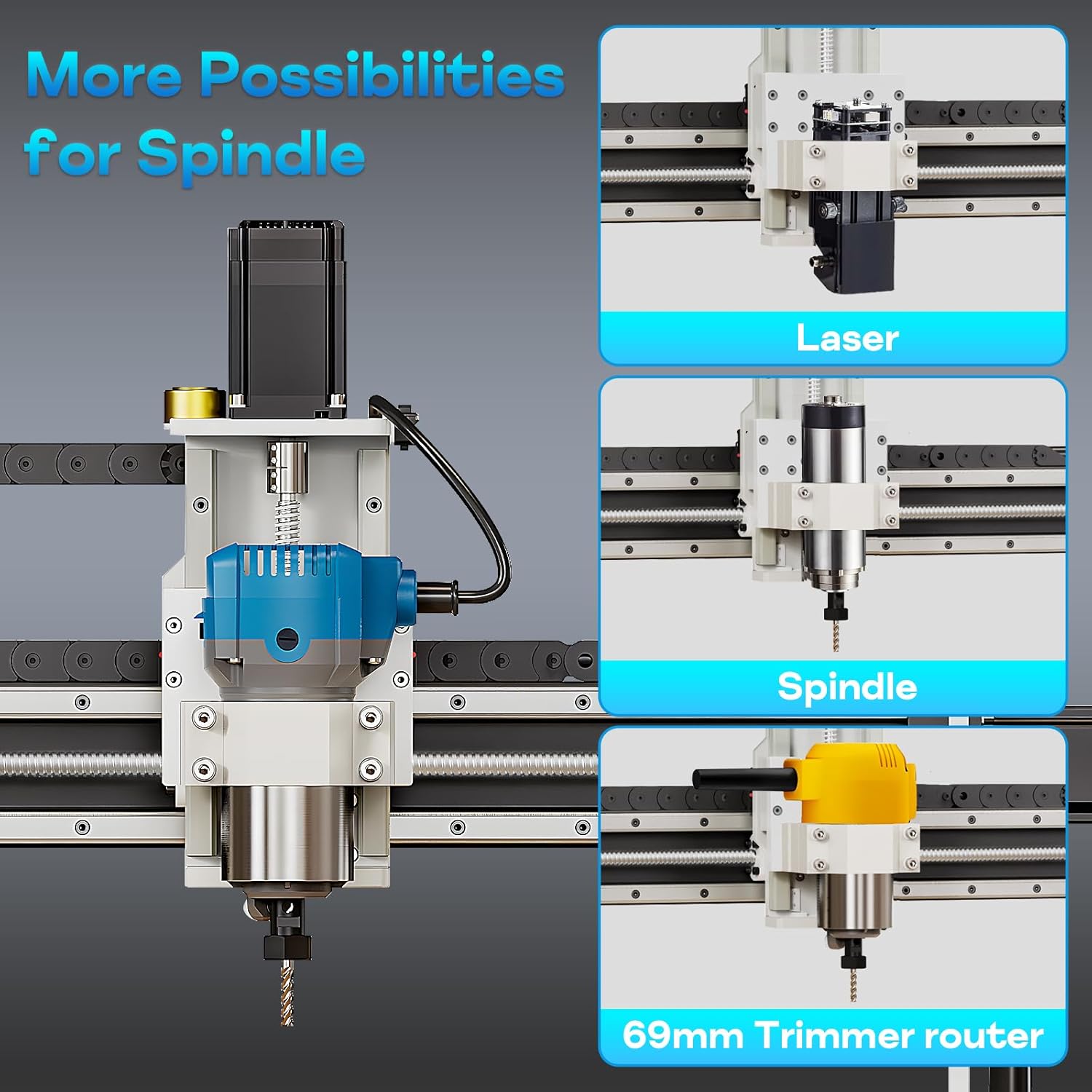

- Expansion Functions: Based on the open-source FluidNC v3.8.4, it features a replaceable dual-core 32-bit driver chip with Wi-Fi support. It offers a wide range of expansion capabilities, including laser output interface, VFD spindle control interface, and support for water-cooled spindles
- Power Supply Notice: Our machine is factory-set to 110V. If using 220V mains, first switch the Power Switch (see control box diagram on main product image) to 220V before powering on—this protects the control box. The included router spindle is 110V only. For safety, we strongly recommend using a step-down transformer to convert your 220V mains power to 110V before connecting either the control box or the spindle
- Superior Configuration: I4040 is a comprehensive upgrade from the I3030, featuring enhanced motor performance and an expanded working travel, resulting in an overall configuration that reaches leading-tier standards in the market
- Friendly Reminder: With its professional-grade design and enhanced performance, this model is well-suited for advanced beginners or users seeking higher precision and build quality
| Voltage | 24 Volts |
|---|---|
| Base Type | Fixed |
| Brand Name | Axiscreat |
| Item Weight | 18.14 Kilograms |
| Manufacturer | Axiscreat |
| Model Number | 4040 |
| Power Source | ac_dc |
| Material Type | Aluminum+Wood |
| Battery Description | Corded electric |
| Manufacturer Part Number | AT-CNC-I4040-2 |
| Maximum Rotational Speed | 30000 RPM |
