63 amp AC110V Automatic/Manual Transfer Switch with LED Display, 50/60Hz 2P 63A ATS Auto Dual Power Outdoor Changeover Switch for Home Generator, L1 Priority Din Rail Mount Selector Transfer Switches
Product details
| Management number | 210751524 | Release Date | 2026/04/02 | List Price | $16.00 | Model Number | 210751524 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- FUNCTIONAL FEATURES: the 63a 110v automatic/manual transfer switch adopts advanced microcontroller technology and is mainly used for automatic transfer of two power sources (such as urban power grid, generators, and solar power supply systems)，it can detect whether the commonly used power source or backup power source is normal. when the main power source (L1) fails or the voltage is abnormal, ATS will automatically switch from the main power supply (L1) to the backup power supply (L2), forming an uninterruptible power supply; when the main power supply (L1) returns to normal, it automatically switches back from the backup power supply (L2) to the normal power supply (L1)

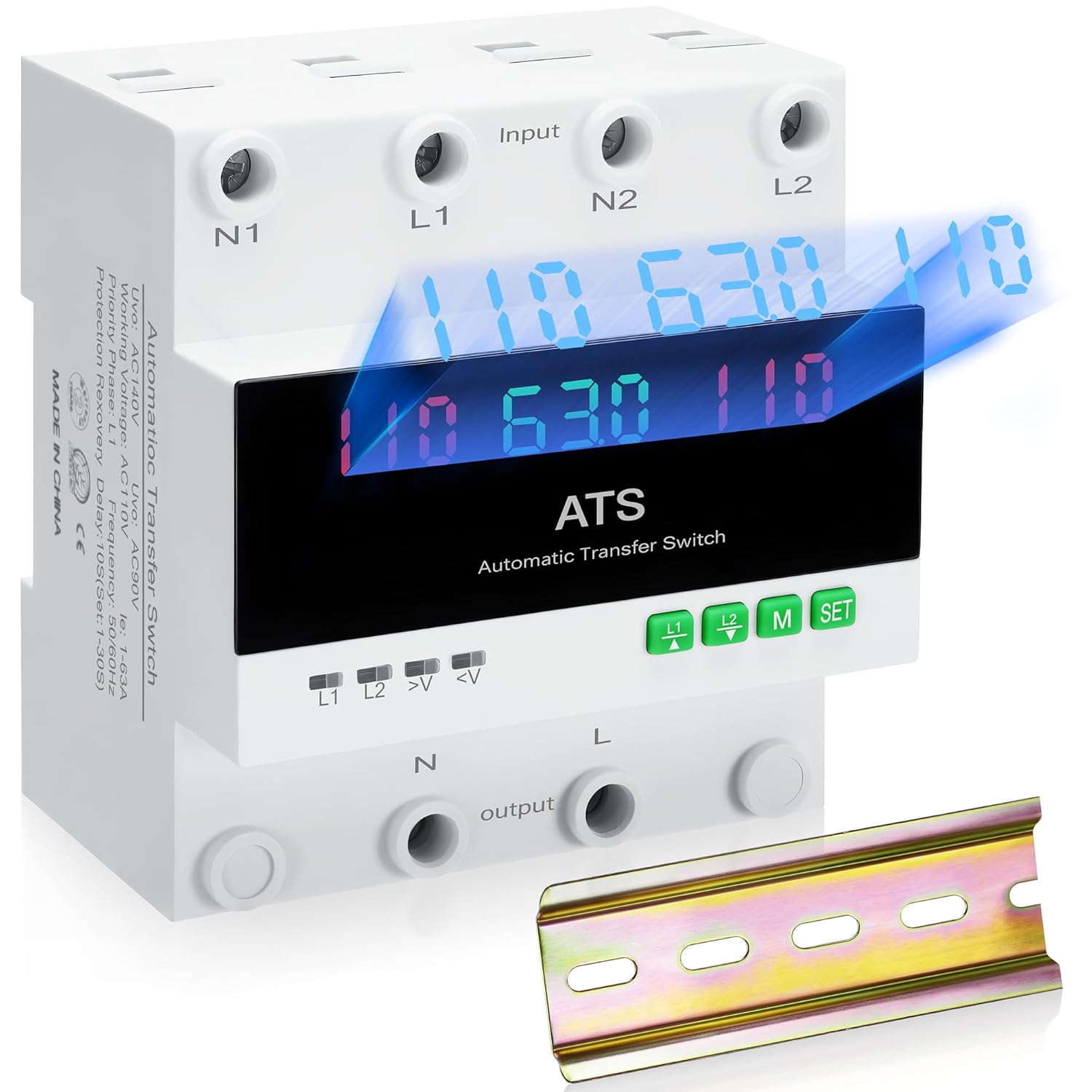

- REAL TIME MONITORING OF LED DISPLAY SCREEN: 2p automatic transfer switch 63 amp is equipped with a high-definition LED display screen and status indicator, which can display the voltage readings of L1 and L2 in real time, output current readings, and clearly and accurately monitor the power status
- VOLTAGE AND CURRENT PROTECTION: the ats generator transfer switch has a built-in safety mechanism package, including overcurrent, overvoltage, and undervoltage protection functions. in case of abnormal current or voltage, it will automatically disconnect the power supply to prevent fire and protect electrical equipment. 110V/50Hz Undervoltage value: 90V, Recovery value: 95V; Overvoltage value: 140V, Recovery value: 130V (± 5V)
- ADJUSTABLE PARAMETERS: 63amp ats automatic transfer switch preset adjustable parameters, including startup power on delay (1s-600s), conversion delay time (1s-600s), overvoltage/undervoltage protection, and overcurrent protection threshold (1a-63a), all of which are adjustable within the specified range. flexible parameter selection can be provided according to specific needs to protect your expensive electrical equipment
- WIDELY APPLICABLE: the 2P dual power manual ATS ensures stable power supply and is ideal for hospitals, low-temperature cold storage facilities, data centers, and solar energy systems. It is suitable for indoor and outdoor generators and can automatically and quickly switch to backup power during periods of power outages
- QUALITY ASSURANCE & WORRY-FREE SUPPORT: This 63A automatic/manual transfer switch is crafted from high-temperature resistant and flame-retardant ABS material, ensuring durability and safety. Its DIN rail design allows for quick and easy installation while maintaining a compact, sturdy form. Backed by a 30-day no-questions-asked return policy and a 3-year warranty, we guarantee complete satisfaction. Should you have any questions or feedback, our customer service team is always ready to assist

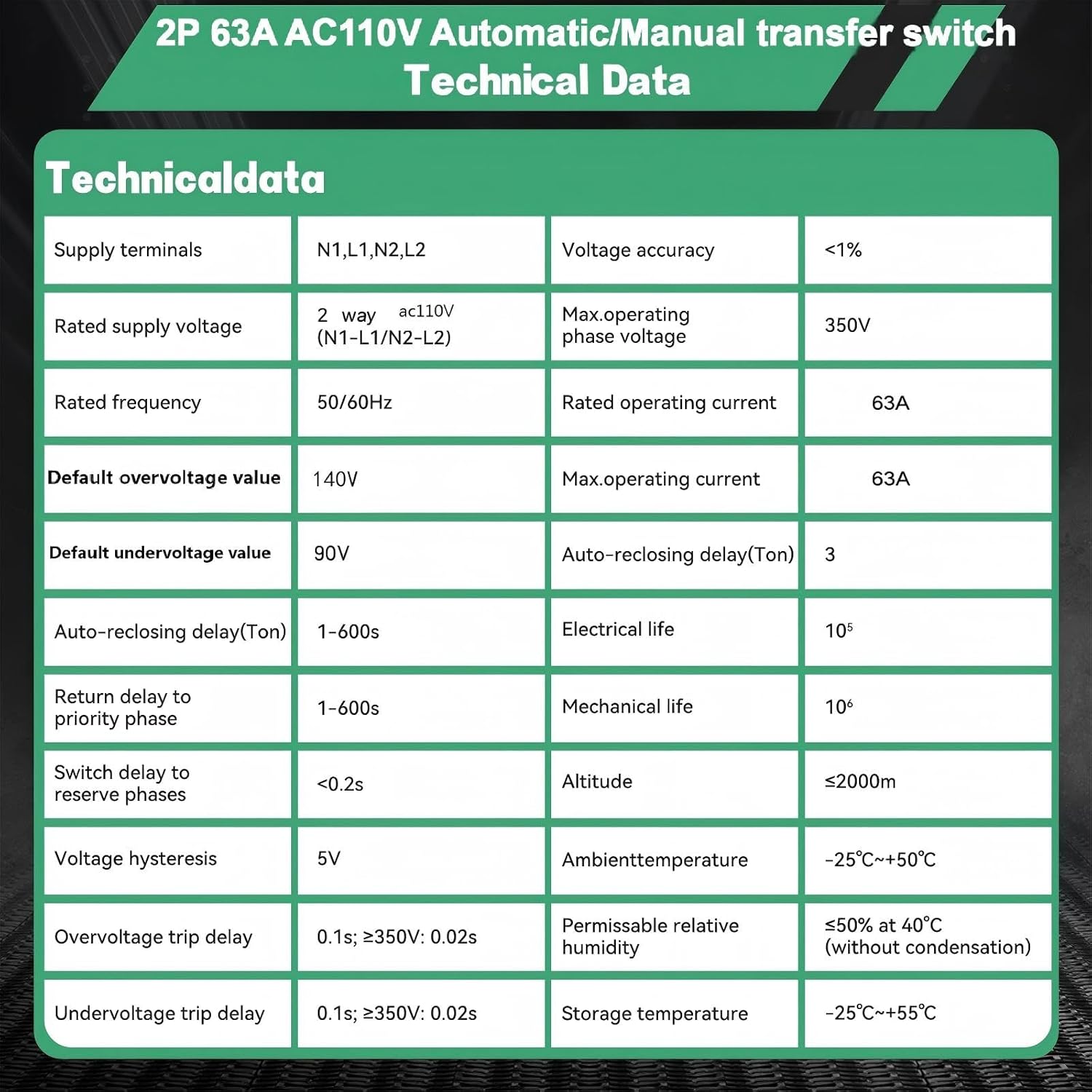

| Model | Automatic/Manual ATS 2P 63A AC110V |
|---|---|
| Terminal | Screw |
| Brand Name | IGEYAPA |
| Switch Type | Toggle |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | IGEYAPA |
| Material Type | Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Crimp |
| Control Method | Push Button |
| Current Rating | 63 Amps |
| Operation Mode | ON-ON |
| Item Dimensions | 4.3 x 3.7 x 2.9 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 110 Volts (AC) |
| Specification Met | CCC, CE, RoHS |
| Included Components | 1PCS*ATS LED Display 63A AC110V+1PCS*35mm DIN rail+1PCS*Instruction manual |
| Number of Positions | 1 |
| Upper Temperature Rating | 122 Degrees Fahrenheit |
| International Protection Rating | IP50 |
