Air Compressor Auto Drain Valve G1/2'' 1.6Mpa Automatic Drainer for Air Storage Tank or Air Dryer

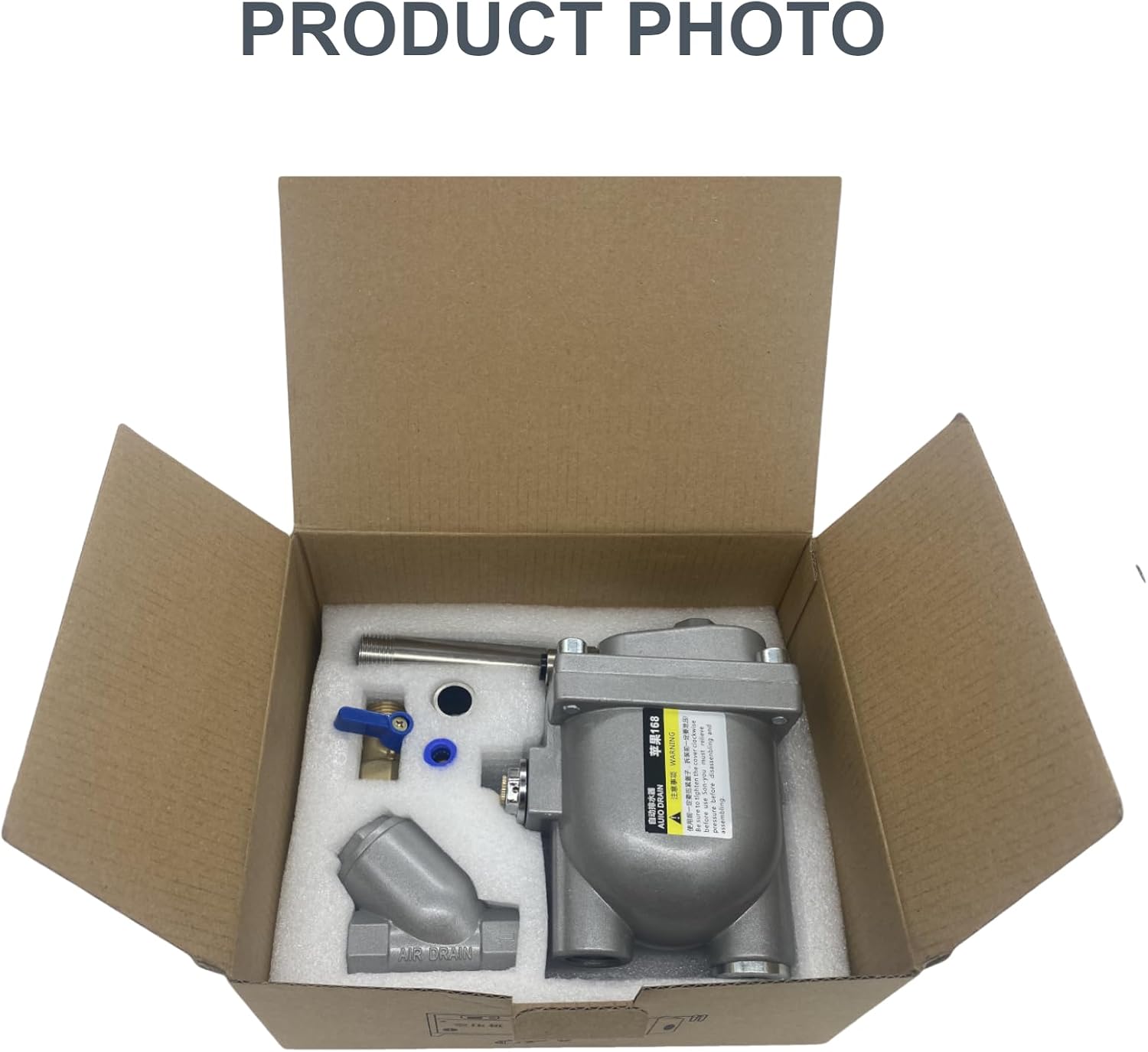

Inspection and maintenance methods: 1. How to disassemble the automatic drain:Screw half a circle counterclockwise and pull up gently, you can clean the internal impurities and oil to prevent clogging.2. No drainage and air leakage check:Firstly check whether there are too much impurities and oil inside, blocking the sealing rubber, which can be unscrewed to clean the dirt inside the cup. Secondly, check whether the stainless steel ball is broken into the water, resulting in no automatic drainage.3. Pre-filtration needs to be manually discharged to avoid clogging without drainage.Specification:Item Type: Air Compressor Drain ValveWater Inlet: G1/2’’, that is, DN15.Drain Outlet: Approx. 8mm / 0.315inPressure: 0-16barMaximum Operating Temperature: 90℃Maximum Displacement: 50L/H. Package List:1 x Air Compressor Drain Valve1 x Drainer1 x Pipe Connecting Fitting1 x Brass Ball Valve1 x 8mm Water Pipe Connection1 x Outlet Female to Male Adapter

• New upgraded drainer, first through the filter to filter and manually drain the sediment, then through the drainer to drain, prevents clogging and leakage.
• The shell is made of aluminum alloy casting with plastic powder coating for corrosion resistance.
• The automatic drainer runs extremely reliably and automatically discharges the condensate and impurities generated inside the compression system at any time to ensure the dryness and cleanliness of the compressed air.
• Applicable for air compressor, air compressor tubes, air storage tank, air dryer and precision filter.
• Only drain but not exhaust, no need to use power, no noise, energy saving, environmental protection, safety.
