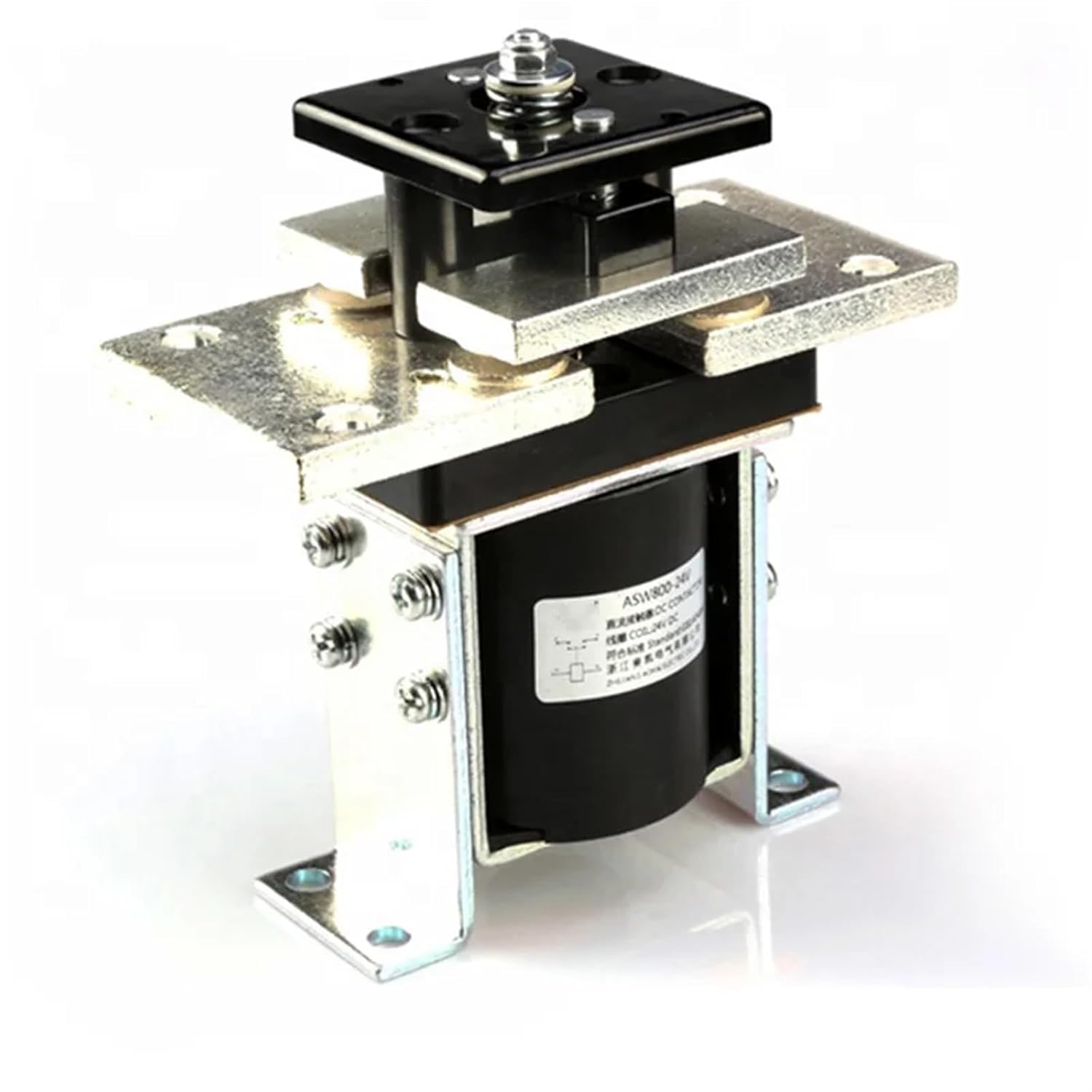

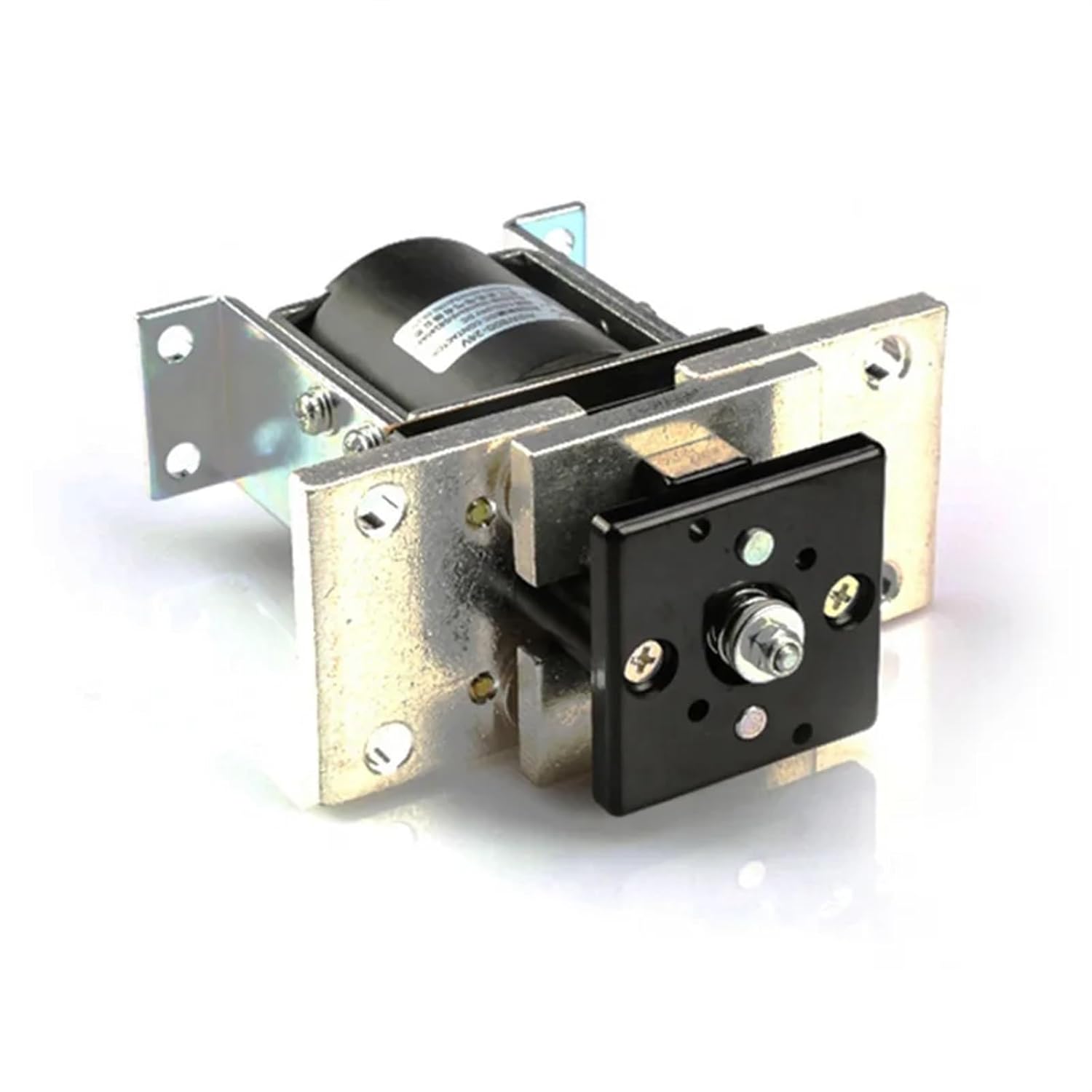

ASW800 120VDC 800A 1NO（Normally Open） Used in Electrical Carrier Solenoid Contactor, SPST IP50 AOKAI DC Contactor 1Pcs(DC24V)

Circuit Breaker PanelsSpecificationCoil Rated Voltage:DC12V, 24V, 36V, 48V etcMain Circuit Rated Current (A): 800AMain Circuit Contact Voltage Drop Of (load:100A):100mVUnder (20±5), Cooling Pull-in Voltage:70% UsUnder (20±5), Cooling Drop-out Voltage:5% Us, 40% UsThe Allowed Range of Coil Voltage: ±20%Pull-in Time (N/O contacts to Close): 30msDrop-out Time (N/O contacts to Open): 20msContact Opening Max. Bounce Period:5msInsulation Resistance: 50MDielectric Strength: 50Hz/60Hz 1500VAC/1minOverload Current: 7Ie, 1sCoil Consumption (W): 15.0WElectrical Life: 20,000 timesMechenical Life: 300,000 TimesWorking Duty: Continuous or IntermittentContacts Type:1NO or 1NCContact Material :AgSnO/Cu or AgCuO/CuAuxiliary Contact Rated Load (Option): 2A/48VDC, 5A/24VDCTechnical Standard:GB14048.4-2010Package Included1 ×DC Contactor Model Number : ASW800Main Circuit Rating Current : 120VMain Circuit Rating Voltage : 120VPhase : 2Number of Pole : 2Electricity Type : DC
