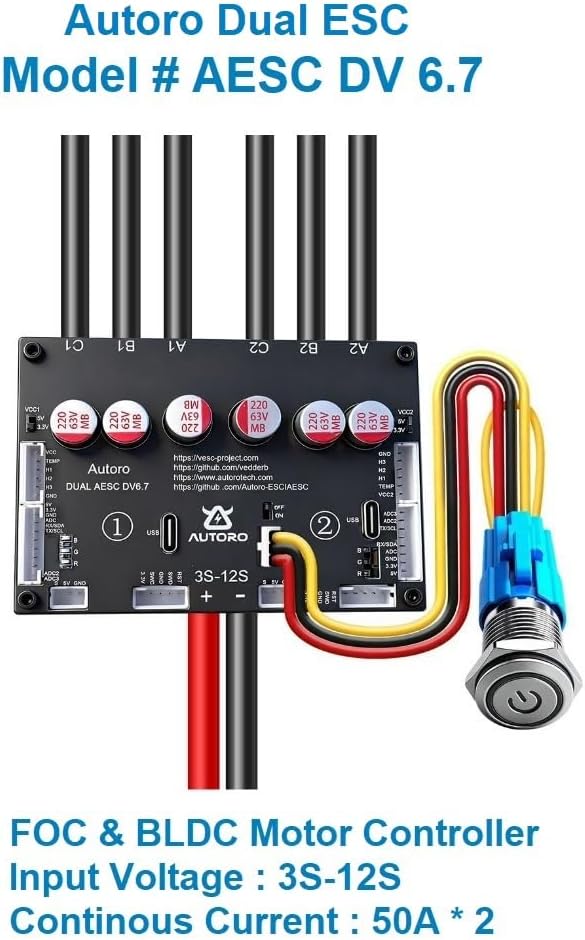

Autoro AESC DV6.7 Dual ESC Sparkless BLDC Motor Controller 12S 100A Based on VESC 6 FOC Speed Controller for DIY Electric Skateboard Scooter Ebike Longboard Robotics, Bluetooth Compatible

Autoro AESC DV6.7 Sparkless Dual ESC - 12S BLDC Motor Controller, 100A Continuous, with Anti-Spark Power SwitchUnlock the Full Potential of Your DIY BuildTired of controllers that overheat, spark dangerously on connection, or come with confusing, manual-dependent wiring? The Autoro AESC DV6.7 Dual ESC is engineered for builders who demand professional-grade performance, uncompromising safety, and ultimate reliability. Built upon the robust Benjamin VESC series architecture, this sparkless BLDC motor controller delivers precise, high-power control for your most ambitious projects—from high-speed electric skateboards and powerful e-bikes to agile scooters and custom robotics.Why the Autoro AESC DV6.7 is the Ultimate Choice for Serious BuildersWe built the DV6.7 from the ground up to solve the common pain points of DIY motor control. Here's how it outperforms the competition:1. Unmatched Power & Cooler Operation: Engineered for Demanding UseSuperior MOSFETs for Maximum Current: Equipped with 6 premium U.S.-made NTMFS5C612NL MOSFETs (1.5mΩ, 235A max). Compared to common 2.4mΩ MOSFETs, this design handles over 57% more current, ensuring stable power delivery under peak load (up to 100A continuous, 150A peak per channel).Advanced Thermal Management System: Features a CNC-machined aluminum heatsink that is 2X larger than standard designs, paired with high-performance 13W/(m·K) thermal paste. This combination dissipates heat 90% faster, drastically reducing overheating risk and extending component lifespan for consistent high-performance in demanding applications like longboard or e-bike builds.2. Built-In Safety & Spark-Free Operation: Connect with ConfidenceIntegrated Anti-Spark Switch: This sparkless ESC eliminates the dangerous arcs and sparks that occur when connecting high-power Li-ion batteries. The included S16 power button provides a safe and convenient ON/OFF switch, protecting your battery connectors and giving you peace of mind.Comprehensive Protection Suite: Your project is safeguarded by multiple built-in protections: low/high voltage cutoff, over-current protection, and MOSFET over-temperature shutdown (activates at 85°C, full cutoff at 100°C).3. Professional, User-Friendly Design: Build Easier, Build SmarterDurable Protective Cover & Clear Silkscreen: A sturdy cover shields the sensitive PCB from dust, moisture, and impacts. Permanent silk-screened labels on the board and cover provide clear, at-a-glance wiring guidance—no need to constantly reference a manual.Rich I/O for Total Flexibility: Comes loaded with interfaces for seamless integration: USB-C, CAN bus, PPM, ADC, SWD debug, sensor ports, and 5V/3.3V outputs. Connect Hall sensors, ABI or AS5047 encoders or interface with other microcontrollers. Compatible with VESC Bluetooth module (sold separately) for wireless configuration and real-time telemetry on your mobile device.4. Silky-Smooth & Versatile Performance: The Heart of Your CreationSilent Sensorless FOC Control: Experience ultra-smooth, quiet operation with advanced Field-Oriented Control (FOC). This BLDC motor controller provides precise torque and speed control, eliminating the whine and vibration of traditional controllers.Wide Compatibility & Control Modes: Perfectly drives BLDC, brushed DC, and IPM motors in both sensored and sensorless modes. Offers four control modes (Current, Duty-Cycle, Speed, Position) plus regenerative braking (for BMS-compatible systems).Easy Setup with VESC Tool: The VESC-compatible design allows for effortless configuration. The VESC Tool software (Windows/macOS/Linux) auto-detects motor parameters and enables real-time data logging for fine-tuning performance. Technical SpecificationsModel: Autoro AESC DV6.7 Sparkless Dual ESCInput Voltage: 11-50.4V (Supports 3S to 12S Li-ion batteries, perfect for 8S ESC and 12S ESC setups)Current Rating: 100A Total Continuous (50A per channel), 150A Peak per channelMax Motor Speed: Up to 150,000 ERPMControl Interface: USB-C, CAN, UART, PPM, ADC, SWD, COMMSupported Sensors: Sensorless, HALL, ABI, AS5047Dimensions: 90 x 64 x 17 mm (3.54" x 2.52" x 0.67")ESC Net Weight: 172.6g (6.09-ounce)Operating Temperature: -20°C to 85°CNote: For dry environments only. This controller is not waterproof. ⚠️ Critical Safety & Setup NotesVOLTAGE WARNING: NEVER use with battery packs exceeding 12S (50.4V).HOT SURFACE: During/after operation, surfaces can exceed 85°C. Always wear heat-resistant gloves when handling.NOT A TOY: Contains high-voltage components. Not for use by persons under 16 years of age.CORRECT WIRING IS ESSENTIAL: Follow the included diagram carefully. Do not short-circuit 3.3V and 5V connections. For ADC throttle control, connect the positive pole to 3.3V, not 5V.SECURE CONNECTIONS: Ensure all solder joints (battery & motor ports) are firm and robust to prevent disconnection. WarrantyBacked by Reliable Support: Your purchase is protected by a 30-day warranty and supported directly by our technical team. As the source manufacturer, we stand behind the quality and performance of every unit, we warmly welcome collaboration with all distributors.Ready to experience professional-grade control? Click Add to Cart and power up your next electric skateboard, scooter, e-bike, or robotics project with confidence!

• 12S Dual ESC - Autoro AESC DV6.7 BLDC Motor Controller supports 3S~12S(11-50.4V Max) Li-ion batteries including 8S ESC; Continuous Current 100A（50A* 2 channels）, Peak 150A/channel for brushless/brushed DC motors and IPM motors in sensored/sensorless modes. The Dual ESC DV6.7 is based on the Benjamin VESC 6 series and VESC-Tool software compatible with USB Type-C port. Auto-detects all motor parameters via VESC TOOL(Support Win/macOS/Linux/Android/iOS).It achieves a maximum motor speed of150,000 ERPM.
• Unrivaled Power & Cooling for Reliable 100A Performance - Dual BLDC ESC upgrade with high-quality ultra-low ESR-Solid capacitorswith 6 × U.S. MOSFETs (1.5mΩ/235A) handle 57% more current than others 2.4mΩ/150A; 2X larger CNC anodized aluminum heatsink + 13W/(m·K) thermal paste (vs. others 3.6W) reduces overheating by 90% than other competitors, preventing overheating and ensuring your foc motor controller handles peak loads reliably for diy electric skateboard/scooter/robots build.
• Upgrade Protection & Rich I/O for Seamless DIY Projects Integration - Built tough for real-world projects. The Autoro AESC DV6.7 DIYskateboard esc with cover shields PCB from impacts/dust, while permanent silk-screened wiring guides make setup intuitive. For ultimate expandability, it boasts a comprehensive suite of ports: USB, CAN bus, PPM, ADC, SWD debug, temperature sensor inputs, and a 5V output. This rich connectivity allows for seamless integration with various components, sensors, and custom electronics in your skateboard, e-bike, scooter, or robotics build.
• Silent FOC Control & Wireless Compatibility - Enjoy ultra-smooth, vibration-free, and quiet motor operation with advanced Sensorless FOC (Field-Oriented Control). This 12S brushless ESC is the ideal powerhouse for DIY electric skateboards, scooters, e-bikes, robotics, longboards, and e-boats. It offers four precise control modes (Current, Duty-Cycle, Speed, and Position) and compatible with VESC Bluetooth module (sold separately) for wireless configuration and real-time telemetry on your mobile device.
• Smart Auto-Tuning & Easy Diagnostics - Get up and running quickly. The Autoro AESC DV6.7 electric speed controller auto-detects all motor parameters in seconds using the open source platform VESC-Tool software (supports Windows, macOS, Linux, Android, and iOS). This eliminates complex manual setup. Clear LED diagnostic indicators provide instant visual feedback for easy troubleshooting, saving you time and simplifying maintenance.
• Comprehensive Protection & Direct Manufacturer Support - Your investment is safeguarded by a full suite of protections, including Over/Under Voltage cutoff, Over-Current protection, and MOSFET Over-Temperature shutdown (85°C). Its mini size and lightweight (3.54 x 2.52 x 0.67inch, 6.09-ounce) allow installation in tight spaces. You buy with confidence, backed by factory direct Support from the Autoro technical team as we are the source manufacturer.
