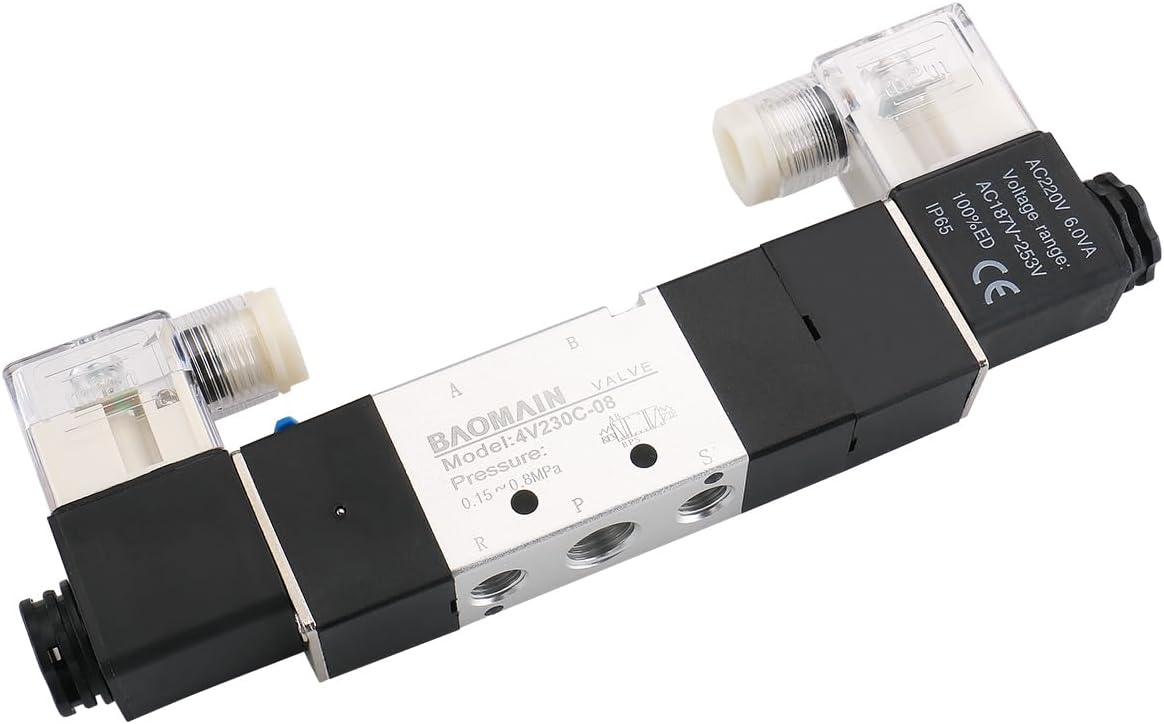

BAOMAIN 4V230C-08-6P Pneumatic Solenoid Valve Manifold Set 3 Position 5 Way PT 1/4 Air Control Valve 6-Station Block for Industrial Automation Systems AC 110V

Straightforward Installation and Setup Logic:Manifold Assembly: The 6 individual 4V230C-08 valves are pre-mounted onto the 6-Station base. Ensure the gasket between the valve and the base is correctly seated.Air Connection: Connect the main compressed air supply to the "P" port (Inlet) of the manifold base using the included PT 1/4 fittings.Output Connection: Wire the "A" and "B" ports to your pneumatic cylinders. The 3-position closed center logic allows the cylinder to hold its position when the solenoids are de-energized.Exhaust Management: Install the provided brass mufflers into the "R" and "S" ports on the base to reduce operational noise and prevent dust from entering the system.Electrical Wiring: Ensure a stable AC 110V power source is connected to the coil terminals. The transparent indicator covers will light up when the solenoids are active.Safety, applicability, lightweight form factor.For remote electric control fluid conduit in the valve opening and closing.Please note that the gas flow direction and the takeover tooth type is correct installation.With solenoid operated for control appropriate flow and direction, provide great performance.Great body for a long lifespan, perfect for electrically driven pneumatic power control.

• PRECISE DIRECTIONAL CONTROL - Features 4V230C-08 series valves with a 3-position 5-way closed center configuration, providing superior control over air flow direction and cylinder positioning in complex pneumatic circuits.
• INDUSTRIAL SAFETY CERTIFICATION - This integrated valve assembly is CE certified and designed for high-frequency operation, ensuring reliable performance and stable electromagnetic response for factory automation environments.
• INTEGRATED 6 STATION DESIGN - Equipped with a robust 6-Station aluminum manifold base, including mufflers and quick fittings, significantly simplifying installation and organizing multiple air lines within control cabinets.
• TECHNICAL OPERATING RANGE - Optimized for an operating pressure range of 0.15-0.8MPa (21-114 PSI) and powered by a high-efficiency AC 110V coil, capable of handling demanding continuous work cycles without overheating.
• RUGGED CONSTRUCTION & STABILITY - Constructed with a premium aluminum alloy valve body and high-quality seals to ensure a long service life, minimal air leakage, and consistent performance for electrically driven pneumatic power control.
