Cutting Cooling Spray Pump, Mist Coolant Spray Pump Kit for CNC lathe Milling Drilling Machine

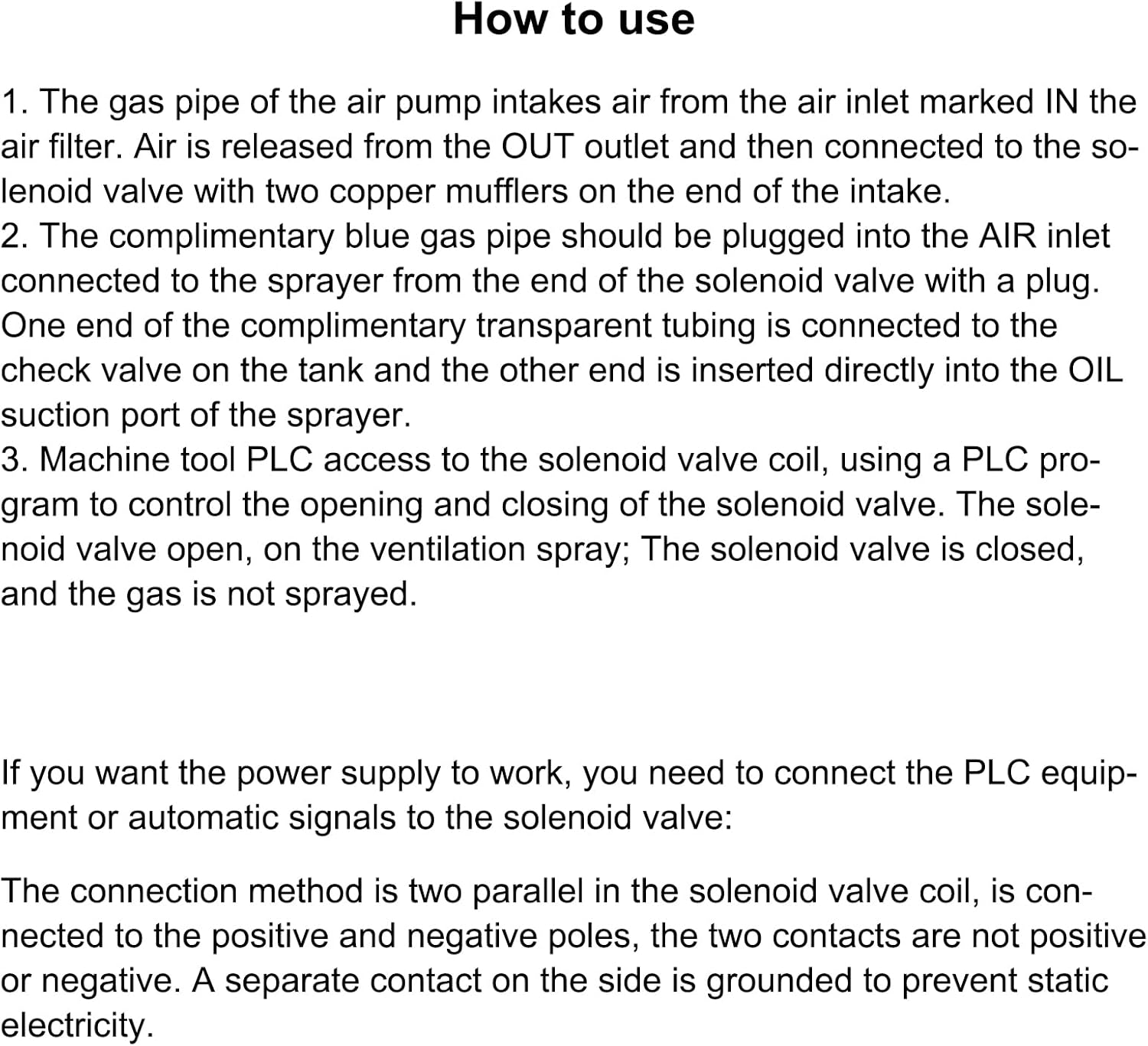

How to use:1. The gas pipe of the air pump intakes air from the air inlet marked IN the air filter. Air is released from the OUT outlet, and then connected to the solenoid valve with two copper mufflers on the end of the intake.2. The complimentary blue gas pipe should be plugged into the AIR inlet connected to the sprayer from the end of the solenoid valve with a plug. One end of the complimentary transparent tubing is connected to the check valve on the tank and the other end is inserted directly into the OIL suction port of the sprayer.3. Machine tool PLC access to the solenoid valve coil, using PLC program to control the opening and closing of the solenoid valve. Solenoid valve open, on the ventilation spray; The solenoid valve is closed, and the gas is not sprayed.(If you want the power supply to work, you need to connect the PLC equipment or automatic signals to the solenoid valve:The connection method is two parallel in the solenoid valve coil, is connected to the positive and negative poles, the two contacts are not positive or negative. A separate contact on the side is grounded to prevent static electricity.Product Parameter: Size: Tank: 24.1*19.5*12.5cm（9.49*7.68*4.92inch）The electromagnetic valve: 11.8cm（4.65in）Air filter: 19.5cm（7.68in）Weight: 2.45kg（5.4lb）Material: Fuel tank: resin materialFuel tank cover: A3 ironSprayer, solenoid valve: aluminum alloyAir filter: iron shell + engineering plasticProduct Features：1、Sprayable medium: water, alcohol, coolant, engine oil, kerosene, cooking oil.2、No water pressure required, 1KG air pressure can be sprayed.Packing List：Pneumatic cooling spray*2Solenoid valve*1Air filter*1

• No water pressure is required, 1KG air pressure can be sprayed.
• Sprays Various Mediums: This pump is designed to spray water, alcohol, coolant, engine oil, kerosene, and even cooking oil, offering versatility in application.
• Note: Customers need to prepare their own air compressor (air pressure 2KG-8kg) for connection, ensuring a seamless setup process.
• Packing List: The package includes two pneumatic cooling sprays, one solenoid valve, and one air filter, providing all the necessary components for immediate use.
• Versatile Application: This YS-BPV-3000 Cutting Cooling Spray Pump is suitable for various metal cutting and engraving machines, including CNC lathe, milling drill, and more.
