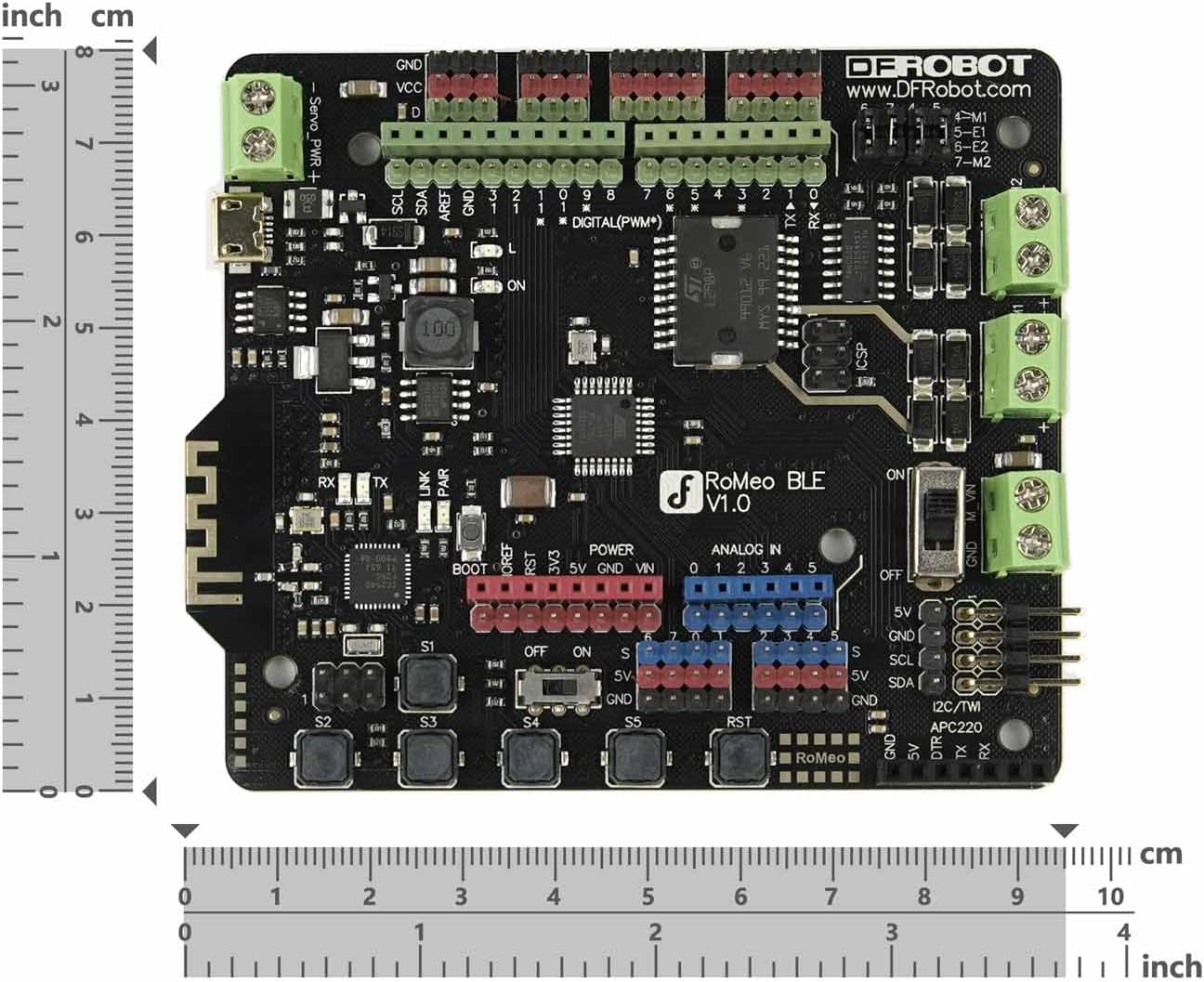

DFRobot Romeo BLE - Arduino Robot Control Board with Bluetooth 4.0

Description:Romeo is an All-in-One Arduino compatible microcontroller especially designed for robotics applications from DFRobot. It benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with your Arduino-comaptible shields. The integrated 2 way DC motor driver and wireless socket allows you to start your project immediatly without the need for an additional motor driver.This RoMeo BLE controller inherits all functions of Romeo all-in-one controller, on the basis of which it integrates Bluetooth 4.0 wireless communication function. You can describe it as a control board specially designed for robot applications, carrying the gene of Bluetooth 4.0 and being compatible with Arduino.With Romeo BLE, all DFRobot's mobile platforms and robots can now be played with iOS devices with the newest app "GoBle". Enjoy!Specification:Microcontroller: ATmega328PBootloader: Arduino UNOOn-board BLE chip: TI CC2540Transmission range: 70m in free spaceSupport bluetooth remote update the Arduino programSupport Bluetooth HIDSupport iBeaconsSupport AT command to config the BLESupport Transparent communication through SerialSupport the master-salve machine switchSupport usb update BLE chip program14 Digital I/O ports6 PWM Outputs (Pin11, Pin10, Pin9, Pin6, Pin5, Pin3)8 10-bit analog input ports3 I2CsTwo way H-bridged Motor Driver with 2A maximum current5 ButtonsSupport Male and Female Pin HeaderIntegrated sockets for APC220 RF ModulePower Supply Port: USB or DC2.1External Power Supply Range: 5-23VDC output: 5V/3.3VAuto sensing/switching external power inputSize: 94mm x 80mmShipping List:Romeo BLE (Arduino Compatible Atmega 328) x1
