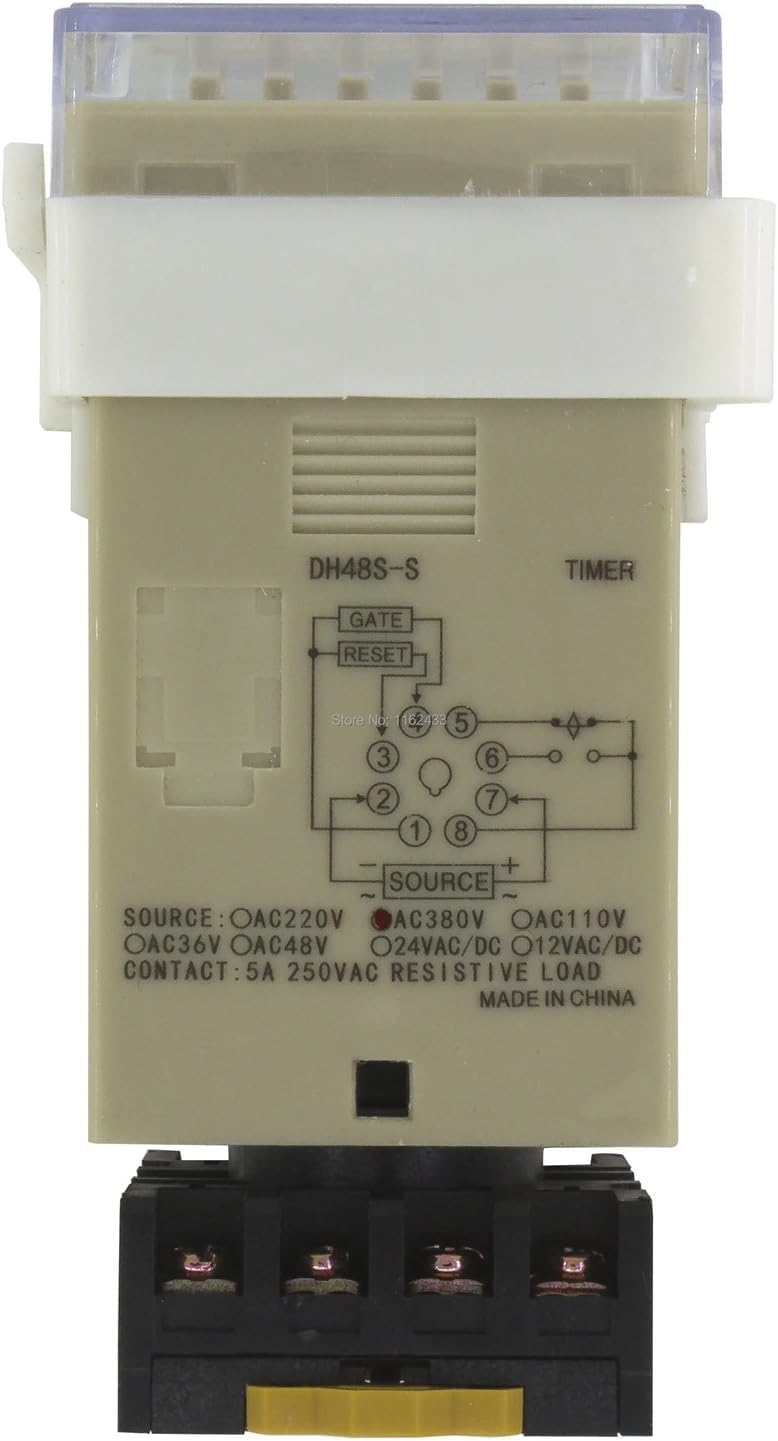

DH48S-S AC 380V 36V Repeat Cycle SPDT time Relay with Socket delay Timer with Base (Size : 36VAC)

Stop Signal RelaysDH48S series digital time relayfinglaiContact form and delay timeModel numberContact formDelay timeRelated productDH48S-1ZOn-delay SPDT1m-99h99m; 1s-99m99s; 0.01s-99.99sOrderDH48S-2ZOn-delay DPDT1m-99h99m; 1s-99m99s; 0.01s-99.99sOrderDH48S-2ZHOn-delay SPDT with SPDT instantaneous1m-99h99m; 1s-99m99s; 0.01s-99.99sOrderDH48S-SRepeat cycle SPDT0.1s-99hVisiting...DH48S-S-2ZRepeat cycle DPDT0.1s-99hOrderfinglaiDH48S-S time relay model number legendDH48S-SParent Model NumberQuality-U: Usual quality-H: Supply voltage220VAC: 220VAC110VAC: 110VAC24V: 24VAC/DC12V: 12VAC/DC380VAC: 380VAC36VAC: 36VACfinglaiGeneralModel numberDH48SSupply voltage36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/VdcTolerance-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltagePower consumption2W maxSetting methodDial switchIndication method8-segment 4-digital displayExternal dimensions48x48x97.4 mmPerforate dimensions4510x4510 mmContact rating3A@250Vac, 5A@28VdcRepeat accuracy±0.3%, ±0.05 secSetting error±0.5%, ±0.05 secTermination8 pinsMountingPanel, din railMatched socketPF083A, PF083A-EMechanical life1x106Electrical life1x105Operating temperature0 to 50 °C (32 to 122 °F)Operating humidity95% RH max, non-condensingAlias nameDH48S digital timerfinglaiDH48S-S time relay related productsNoModel NumberQualitySupply VoltageRelated Product1 DH48S-S-U220VAC(110VAC, 24V, 12V)Usual quality220VAC; 110VAC; 24VAC/DC; 12VAC/DCOrder2 DH48S-S-U380VAC(36VAC)Usual quality380VAC; 36VAC
