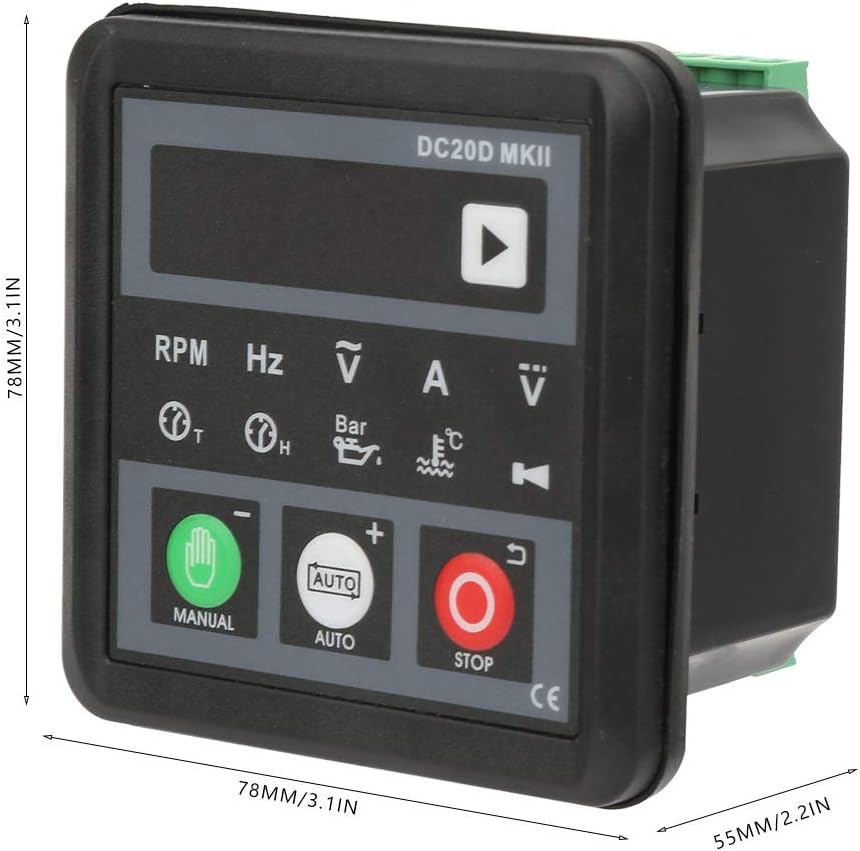

Generator Control, DC20D DC 8-36V MKII Electronic Generator Remote Control Device for Automatic Start for Generator, Different Engine Types by Selfadjustment

function: Emergency stop Over/under frequency Over/under voltage Low oil pressure Flood temperature Open oil pressure sensor Open water temperature sensor Start Failure Stop Failure Low Water Level Alarm High Oil Temperature Alarm Speed ​​ Loss Alarm Over/Under Speed ​​Alarm Over Current Alarm Low Fuel Level Warning Low battery voltage warning Configuration method: Configuration parameters via buttons on the front of the controller or PC Specification: Condition: Brand New Item Type: Generator Control DC Power Supply: DC 8-36V Power Consumption: 3W Measuring Frequency: 10-70 Hz Input Voltage Range: AC 20-80 V Current measuring range: 0-2000A. Frequency of frequency sensor: 30-9999Hz Output: Fuel relay output: 5A Start relay output: 5A Configurable output1: 2.5A Configurable output2: 2.5A Excitation output: 1A Size: Approx. 78mm * 78mm * 55mm / 3.1 * 3.1 * 2.2in Panel cutout: Approx. 67mm * 67mm/2.6 * 2.6in level: Splashproof after installation. Operating temperature: -30℃ -70℃ Storage conditions: -40℃ - 85℃ Panel: Chinese/English Optional Package list: 1 * Controller 2 * Mounting screws 1 * Interface wiring Note: 1. Please allow slight errors due to manual measurement. Thank you for your understanding. 2. Monitors are not calibrated the same. Item color displayed in photos may be slightly different from the actual item. Please take the real one as standard.

• DC20D is a module for engines or generators.
• It is with the functions of auto start/stop, and alarm display. The DC power and operating situation is displayed on the front panel.
• The status of the engine and generator can be easily checked.
• Over-frequency, low frequency, over-voltage, under-voltage, low oil pressure, high temperature, low water level, low oil level, charging error, overtime stop, emergency stop alarm system as well as low battery voltage can be displayed in time.
• The output uses a relay that can withstand large output current and can adjust system parameters according to the button to meet the application in different .
