Hamilton Champion Swivel Caster Part# S-CH-63FSB 6" x 3" Forged Steel Wheel with 3/4" Precision Ball Bearing - 4,000 lbs Capacity - USA Made
Product details
| Management number | 228701871 | Release Date | 2026/05/31 | List Price | $132.00 | Model Number | 228701871 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Hamilton Champion Swivel Caster with 6" x 3" Forged Steel Wheel with 3/4" Precision Ball Bearing This listing is for a 6" diameter by 3" tread width Rigid Caster. Manufactured in the USA by Hamilton Casters this comes with a Forged Steel wheel with a 3/4" Precision Ball Bearing. This caster holds 4,000 lbs per caster. Rollability: Durability: Floor Preservation: Quiet Operation: Type:Forged Steel Material:Forged Steel Relative Capacity:Very High Cushioning (Resilience):Low Impact Resistance:High Moisture Resistance:High Abrasion Resistance:Very High Relative Cost:High Low Temp. Range (F):-40 High Temp. Range (F):320 Chemical Resistance:Medium Load Capacity (lbs.) @ 3 mph4000 Wheel Diameter (in.)6 Wheel Face (in.)3 Overall Height (in.)8 Swivel Offset (in.)2.25 Wheel Type: Forged Steel Replacement Wheel: W-630-FSB-3/4 Mounting Plate (in.)5 1/4 x 7 1/4 Mounting Bolt (in.)0.5 Caster Rig Type: Forged Steel Caster Color/Finish: Battleship Gray Wheel Color/Finish: Clearcoat Weight (lbs.)36.0000 NoteThe four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster. Bolt Hole 1 (in.)3 3/8 x 5 1/4 Bolt Hole 2 (in.)4 1/8 x 6 1/8 Swivel or Rigid caster: Swivel Mounting Plate Length (in.)7.25 Mounting Plate Width (in.)5.25
- Wheel Diameter: 6"
- Overall Height: 8"
- Load Capacity (lbs.) @ 3 mph 4,000
- Mounting Plate Size: 5 1/4 x 7 1/4

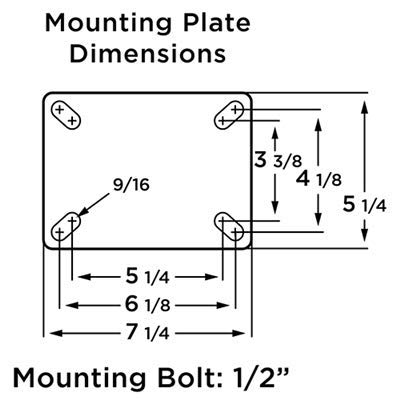

- Bolt Hole Pattern: 3 3/8 x 5 1/4 slotted 4 1/8 x 6 1/8
| UPC | 733569757510 |
|---|---|
| ASIN | B08HPCJQL6 |
| Color | Silver |
| Model | HD-S-CH-63FSB |
| Brand Name | CasterHQ |
| Unit Count | 1.0 Count |
| Caster Type | Swivel |
| Item Weight | 36 Pounds |
| Part Number | HD-S-CH-63FSB |
| Wheel Width | 2 Inches |
| Manufacturer | Hamilton Casters |
| Load Capacity | 4000 Pounds |
| Material Type | Forged Steel |
| Mounting Type | Plate Mount |
| Surface Recommendation | Multi-Surface |
