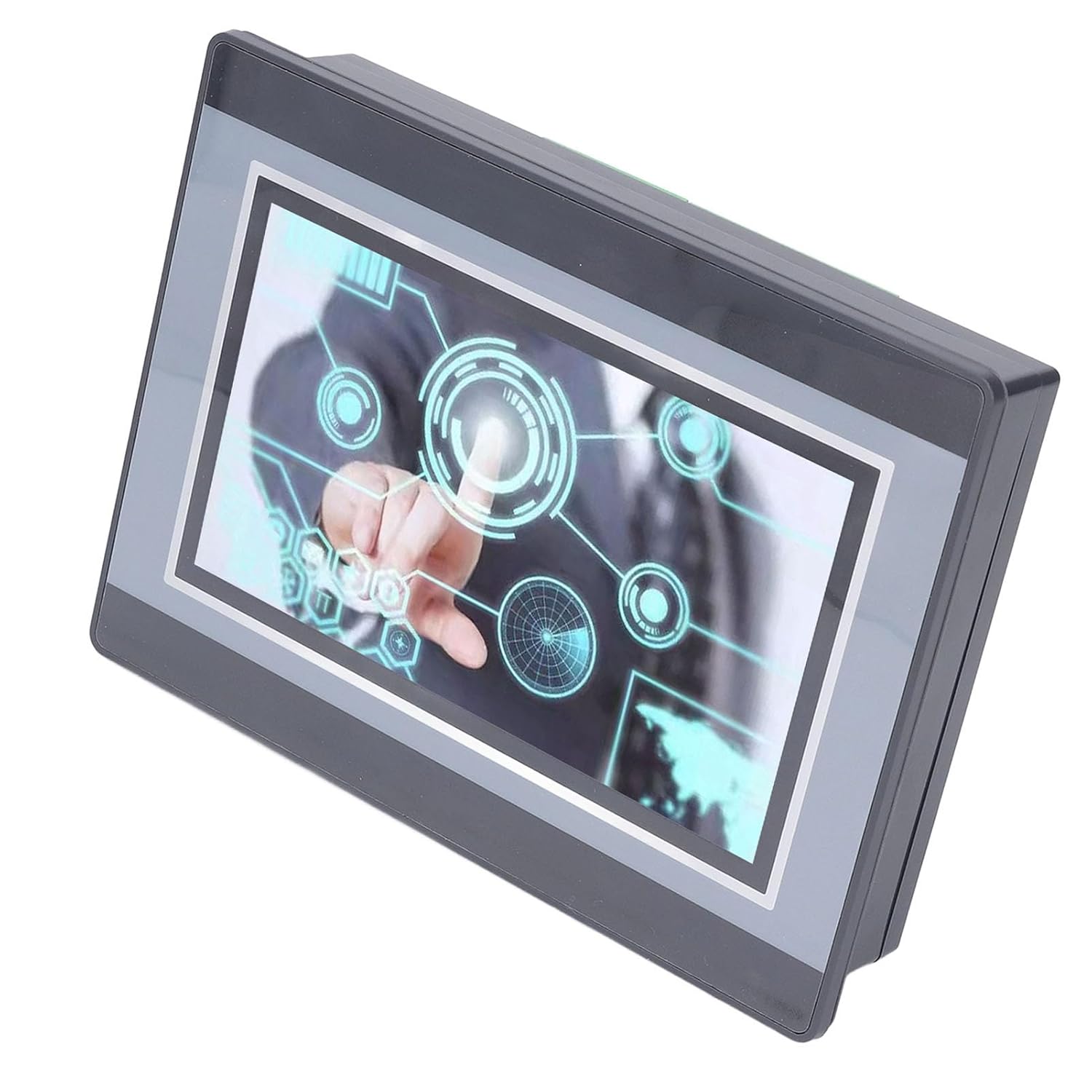

HMI PLC Control Board, 7in TFT LCD Touch Screen Relay Output 12 in 8 Out All in One Machine with 32 bit 240MHz ARM9 Processor, for FX3U WSB7020R

1. [HMI PLC All in One] Equipped with 32 bit 240MHz ARM9 processor and 128M NAND FLASH memory, compatible with for FX3U 20 40 48MRT. The touch screen has low power consumption, fast running speed, and ​. 2. [7in TFT LCD Display] Featuring 800x480px resolution, 260,000 colors, and 400 cd/m2 brightness with backlit display, providing easy observation of status. The 4 wire industrial resistive touch screen ensures durability with 4H surface hardness. 3. [Simple Installation] With a hole size of 190x135 mm and complete with screws and fixing accessories, the HMI PLC all in one machine can be directly installed without hassle. 4. [HMI Programming] Use for HMI Studio 5.1 software for programming, download for HMI program using a USB male to male cable. 5. [PLC Download and Programming] The download speed is 38.4Kbps, you can directly use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported). Spec: Item Type: HMI PLC Material: ABS Model: WSB7020R Size: Approx. 202x148x51mm / 7.95x5.83x2.01in Opening Size: Approx. 190x135mm / 7.48x5.31in Display Screen: 7 inch TFT LCD Resolution: 800x480px Color: 260,000 Download Speed: 38.4Kb Input Points: 12 Output Points: 8 Output Type: Relay Output Current: 5A Load: 24V High Speed Count: 6/3K Pulse Output: None Analog Input: Default 3AD 0-10V 3AD 0-20MA AD0 AD1 Analog Output: 20A 0-10V Clock: Supported How to Use: Follow the instructions in the electronic manual (universal electronic manual). packing list: 1 x HMI PLC 4 x Installation Screws 4 x Fixing Brackets

• [HMI PLC All in One] Equipped with 32 bit 240MHz ARM9 processor and 128M NAND FLASH memory, compatible with for FX3U 20 40 48MRT. The touch screen has low power consumption, fast running speed, and .
• [7in TFT LCD Display] Featuring 800x480px resolution, 260,000 colors, and 400 cd/m2 brightness with backlit display, providing easy observation of status. The 4 wire industrial resistive touch screen ensures durability with 4H surface hardness.
• [Simple Installation] With a hole size of 190x135 mm and complete with screws and fixing accessories, the HMI PLC all in one machine can be directly installed without hassle.
• [HMI Programming] Use for HMI Studio 5.1 software for programming, download for HMI program using a USB male to male cable.
• [PLC Download and Programming] The download speed is 38.4Kbps, you can directly use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).
