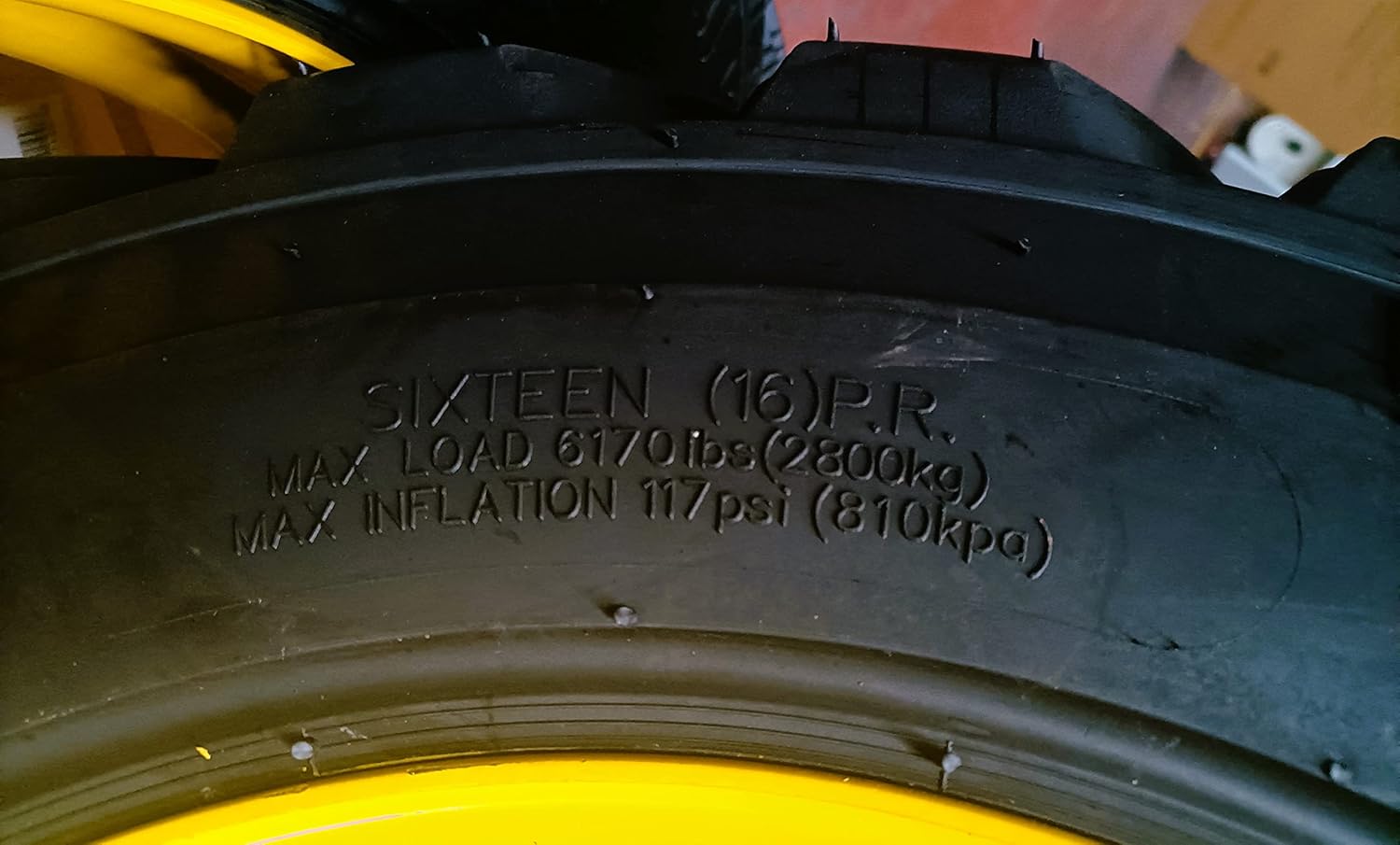

HORSESHOE 10-16.5 16PLY R-4 Extra Thick Rim-Guard Wall Super Heavy Duty LRH Tires mounted on 16.5x8.25 Lug 8X8" Yellow(CT) Steel rims w/Brass Valve Stem & Stem Protector 10X16.5 16.5-8.25 (4)

HORSESHOE 10-16.5 10x16.5 Tires/wheels Mounted on Yellow (CT) Steel Rim for Caterpillar - CAT Skid Steers Replacement on Left Side & Right Side of Front or Rear Position HORSESHOE 8x8" lug pattern OEM Skid Steer wheels (Rim) size 16.5x8.25" with valve stem protector and brass valve stems installed Very Brand New manufacture in Dec. 2022 Not retread, blems or seconds Skid Steer Loader Tires/Wheels Assembly Extra Thick Rim-Guard Wall Protect Skid Steer Machines Wheel (Rim) Perfectly!

• 10-16.5 10x16.5 Skid Steer Tires Mounted to 16.5x9.75 - 8x8" Bolt Lug Pattern Rim Yellow (CT) for Caterpillar - CAT replacement on Left Side and Right Side both available (Please Note: This 4-Pack Listing Item Include 2 Sets Left Side Tires/Wheels Assemblely Plus 2 Sets Right Side Tires/Wheels Assembly) ;
• [FEATURES] 16 Ply Rating Super Heavy Duty H Load (LRH Max Load 5570 Pounds @115 psi Cold), Off-The Road & Not For Highway Service, Compatiable fits many skid steer machines including Caterpillar - CAT 216 & 226, etc., and will also fit many other machines (please inquire if interested).
• [TIRE SIZE] 30.67" oval diameter, 9.81" section width, 23/32" tread depth (18/32nds deep in center - 28/32nds deep towards the outside); [RIM SIZE] 16.5" diameter, 8.25" rim standard width, Wheel is an 8 lug X 8" bolt pattern and takes a 10-16.5 tire size, Rim Bolt holes are 3" apart center to center and 8" across center to center; Disk center pilot hole (Bore) is 6", Front Offset: 7" - Center mounting dish sets in about 7 inches from front edge (valve stem side) of wheel;Tire with Rim-Guard extra thicker wall and Wheel/Rim with Brass Valve Stem & Stem Protector.
• [FITMENT] This 8-lug rim design with a 6" center bore (hole) and 8" lug pattern fits most skid steers such as CAT, Daewoo, Gehl, John Deere, Mustang, Bobcat, Case, New Holland, Kubota, Scat Trak & Thomas made most of their machines with an 8-lug rim, The main difference is the offset does vary between the different manufacturers but most of the rims do interchange (If you're not sure if these will fit your machine, please message us your machine model and we'll try to let you know).
• [PATTERN] R-4 T168 Improved traction performance pattern designed with low bar angle for less slippage than conventional tread directional and self-clean out designs resulting in reduced soil disturbance and rutting, which is capable of durability promotes a secure load durability and a high load capacity standard off-road applications. This classic tread pattern is suitable for the most popular use and not recommended for heavy-duty commercial applications or continuous hard surface wear.
• The 10-16.5 tire features a 16PR tread & sidewall construction, which is a great enabler to reinforce structure maintains the tire's optimal shape under the load and driving pressure affecting it;
• [ATTENTION] Before place an order, please confirm all dimensions: 10-16.5 / 10x16.5 tire size, 6" center pilot hole (Bore) and 8x8" bolt pattern, Front Offset is about 7", etc. fits your skid steer machines to avoid wrong purchase, Any questions please contact us before ordering.
• Attention! Before place an order, please confirm all dimensions (10-16.5 tire size, 6" center pilot hole and 8x8" bolt pattern,etc. Any questions please contact us befor ordering) required by your skid steer machines to avoid wrong purchase & return;
• RETURN POLICY: Please note, we DO NOT offer free returns. If you choose to return the tires for a reason besides us sending the wrong tires, you will pay shipping both ways, plus a restocking fee. Please make sure you have the right size OR please inquiry us if you have any questions before ordering!
