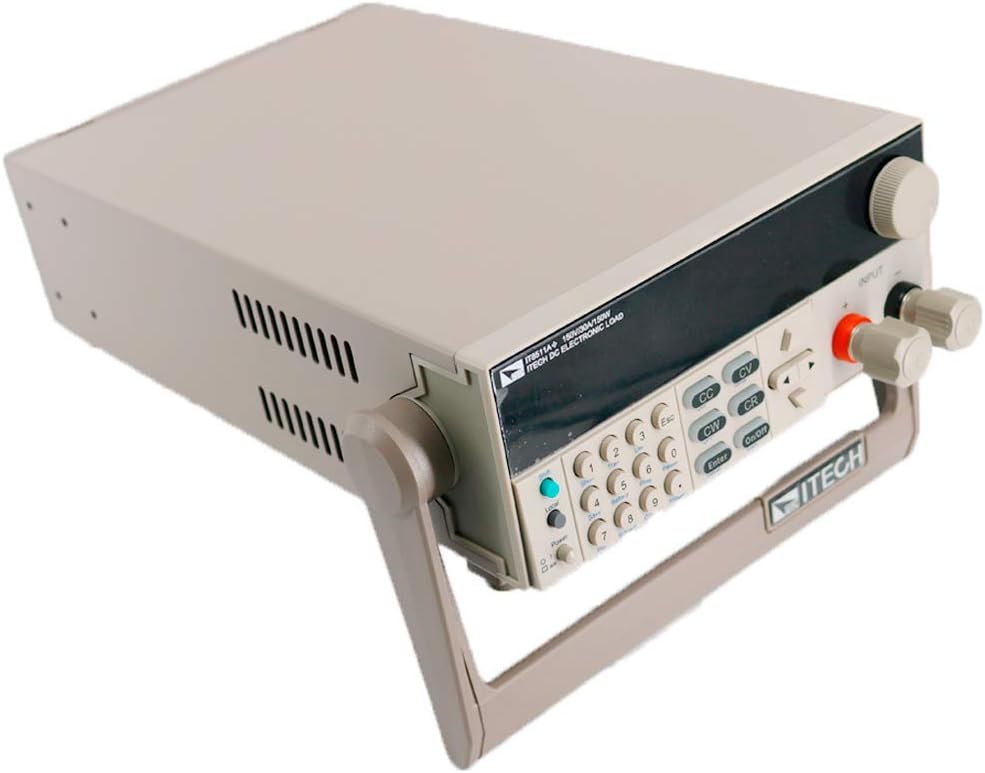

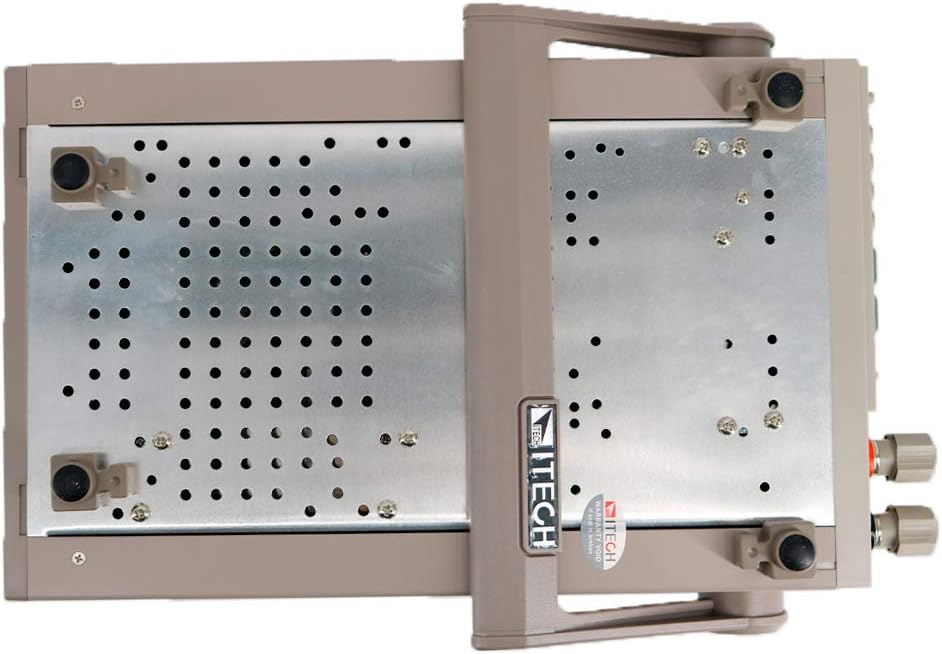

IT8511A+ Single Channel Programmable DC Electronic Loads 150V 30A 150W Short Circuit Battery Tester

IT8500+ series (150W~3000W) single-channel programmable DC electronic loads are designed for middle &high-end applications.They can be offered as multiple solutions according to customer's design and testing requirements.The user can perform online voltage measurements and adjustments or simulate short circuit test using the simple keypad on the front panel. IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies, batteries,DC - DC converters,battery chargers,provides user the best testing solution.FeaturesDynamic mode:up to 10KH Resoulution of voltage and current:0.1mV/0.1mA Four working modes:CV/CC/CR/CP Remote sensing function Battery test,automatic test,OPP test,OCP test funcitions. Storage for 100 sets Short-circuit function Current monitoring funciton Power off memory functio With rotary coding switch to make an easy operationFunctions&AdvantagesIT8500+ series electronic loads have remote sense terminal on rear panel.Remote sense function can be used to compensate for voltage drops(up to 1V) due to resistance from test leads connected to your device under test(DUT),thus providing more accurate output voltage.

• 150V/30A/150W DC Electronic load IT8511A+ single-channel programmable DC electronic loads
• Dynamic mode: up to 10kHz
• Resolution of voltage and current: 0.1 mV / 0.1 mA
• Four working modes: CV/CC/CR/CP
• Highlight VFD display
