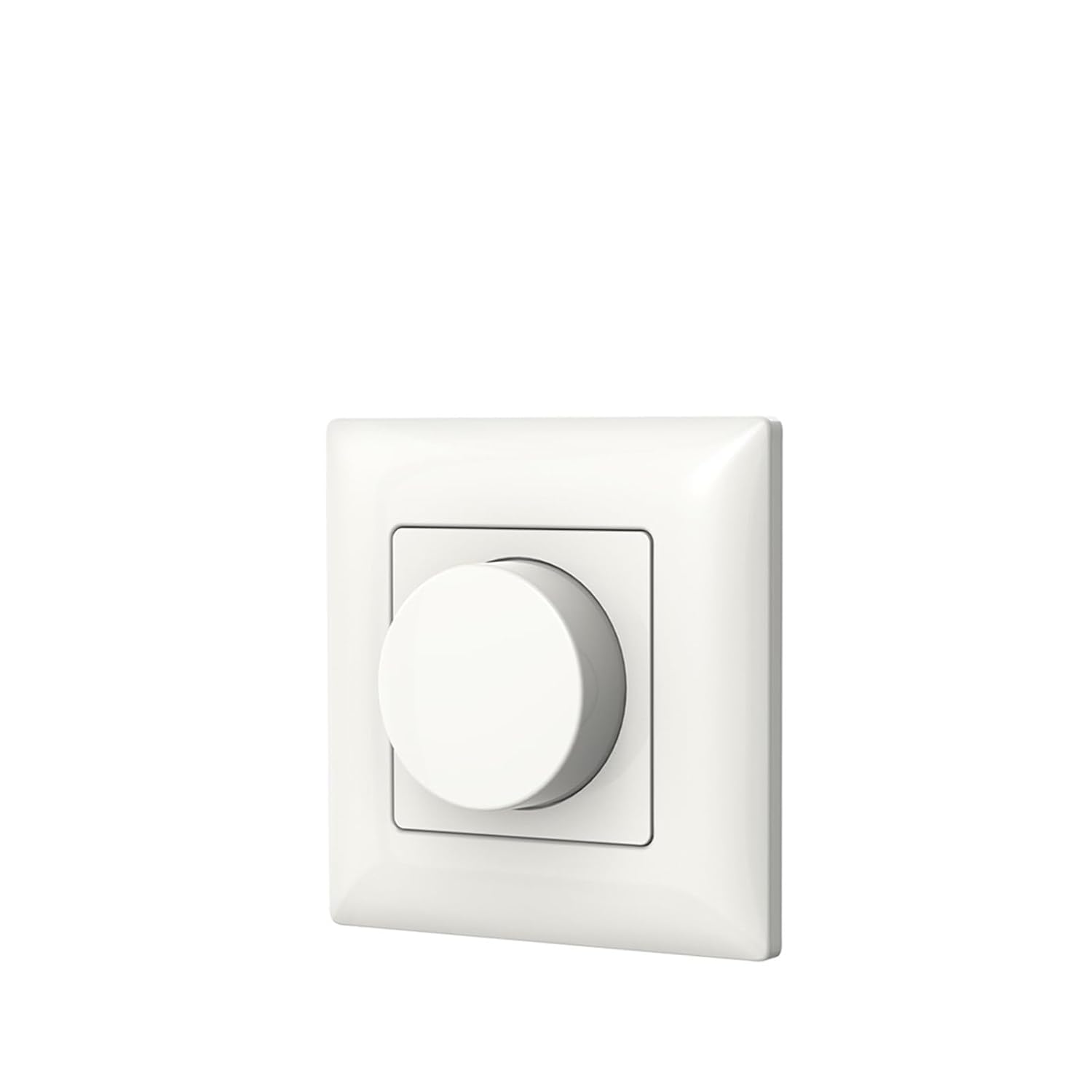

LED Dimmer Switch 12V 24V PWM Touch Remote Control 36V 48V Dimming Controller for Single Color Light Strips(LSD-RU4 Remote Only)

Low-Voltage TransformersLED Dimmer Switch 12V 24V PWM LED Touch Remote Control 36V 48V Dimming Controller for Single Color LED Light StripsDC12-48V/stepless dimming/wireless remote control/Push Dim/four-channel PWM frequency/linear or logarithmic dimmingfeature:Paired with Lisxchda’s dimming remote control,One controller can support up to 10 remote controls.Automatic transmission function: the controller automatically transmits signals to another controllerThe control distance of the controller is 30m.Synchronize across multiple controllers.Connecting an external button switch can realize on/off and dimming functions.Logarithmic or linear dimming curve available.PWM frequency 250Hz, 500Hz, 2kHz or 8kHz optional.Easy to place in standard wall junction box behind push button switch.Specification:Product name: radio frequency LED dimmerModel A: LSD-V1-H/P+R11; Model B: LSD-V1-H/P+PK1; Model C: LSD-V1-H/P+R1-1; Model D: LSD-V1-H/ P+RU4; E type: LSD-V1-H/P+RU8; F type: LSD-V1-H/P+RT8; G type: LSD-V1-H/P+ relayInput: DC 12-48VWorking temperature: -20-60℃Maximum load current: 6A/channel (1 channel)Maximum output power: 12V maximum 72W, 24V maximum 144W, 36V maximum 108W, 48V maximum 144WPulse width modulation frequency: 250Hz, 500Hz, 2kHz, 8kHzremote control frequency: MHzremote control distance: 30MCompetition Guide:This dimmer can be matched with various single-zone or multi-zone dimming remote controls.Option 1: Use the controller’s DIP switchesmatch:To change the DIP switch setting, immediately press the on/off key (single zone remote control) or defense zone key (multi-zone remote control) on the remote control.Option 2: Use power-ups1. Pairing: Turn off the power, then turn the power back on. Quickly press the remote control switch button 3 times within 5 seconds after turning it on. The light flashes 3 times to indicate successful pairing.2. Delete: Turn off the power, then power on again. Quickly press the remote control's on/off key or zone key 5 times within 5 seconds after turning it on. The light flashes 5 times to cancel the link.
