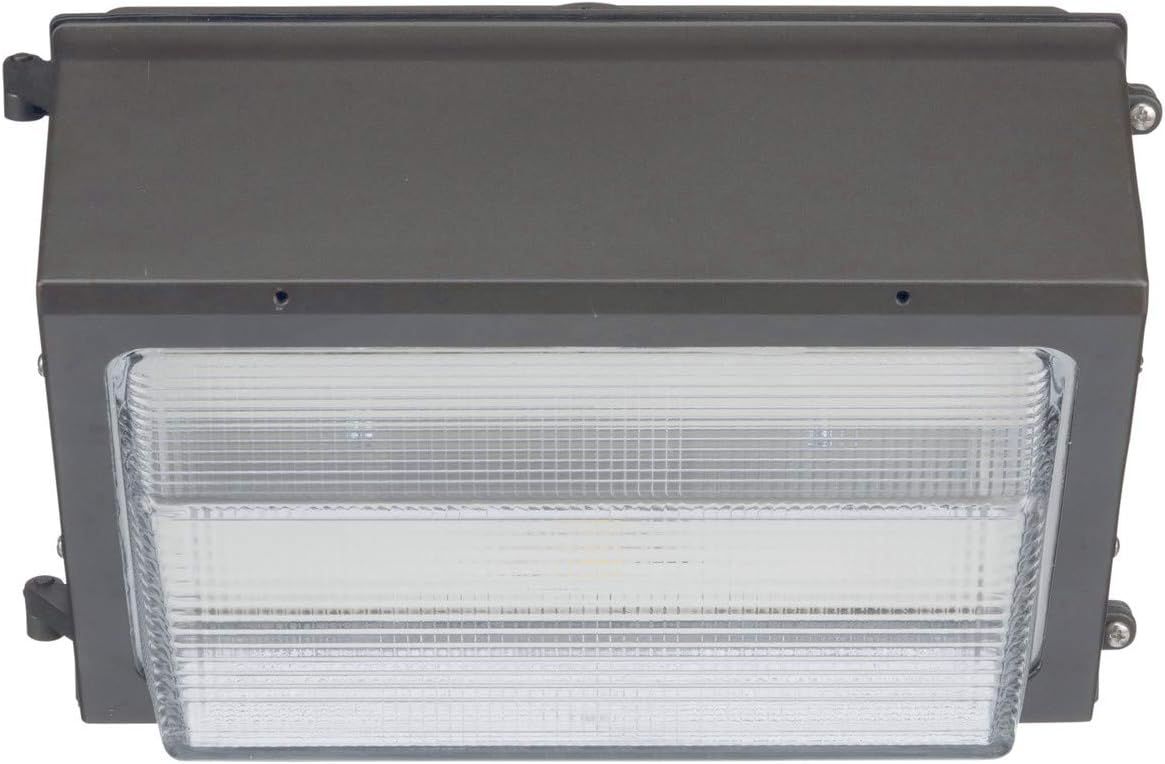

Lithonia Lighting TWR1 LED ALO 40K MVOLT DDBTXD Adjustable Lumen Output, 13-Inch, Dark Bronze

The TWR1 LED luminaire is powerful yet energy efficient, capable of replacing up to a 250W metal halide luminaire while saving up to 86% in energy costs. Offering an expected service life of more than 20 years, the TWR1 LED eliminates frequent lamp and ballast replacements associated with traditional technologies. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWR1 LED ALO luminaires can replace anything from 70W to 250W metal halide luminaires.

• INTENDED USE - The TWR1 LED combines traditional wall pack design with high-output LEDs to provide an energyefficient, low maintenance LED wall pack suitable for replacing up to 250W MH fixtures. The traditional shape helps maintain building aesthetics when replacing only a portion of your building’s wall packs. TWR1 LED is ideal for outdoor applications such as carports, loading areas, driveways and parking areas
• CONSTRUCTION - Rugged cast-aluminum housing with bronze polyester powder paint for lasting durability. Door is hinged on the side so door swings out of the way during installation and service. Castings are sealed with a one-piece gasket to inhibit the entrance of external contaminants. MVOLT driver operates on any line voltage from 120-277V (50/60Hz). All luminaires have 6kV surge protection. Rated for outdoor installations, -40ºC minimum ambient. Please consult factory for surge rating of photocells.
• OPTICS - High-performance LEDs maintain up to 90% of light output at 100,000 hours of service life (L90/100,000 hours). Prismatic glass lens designed for superior lighting distribution, uniformity and fixture spacing. See Lighting Facts label and photometry reports for specific fixture performance.
• INSTALLATION - Designed for wall mounting above four feet from ground. Housing is configured for mounting directly over a standard 4” outlet box (by others) or for surface wiring via any of three convenient 1/2” threaded conduit entry hubs.
