MECCANIXITY 2PCS 3A 22MM 7/8" Momentary Mushroom Head Push Button Switch 12V 24V 120V 250V AC Black 1NO Waterproof IP65 SPST Domed Round 2 Screw Foot Switch
Product details
| Management number | 229751279 | Release Date | 2026/05/31 | List Price | $5.12 | Model Number | 229751279 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

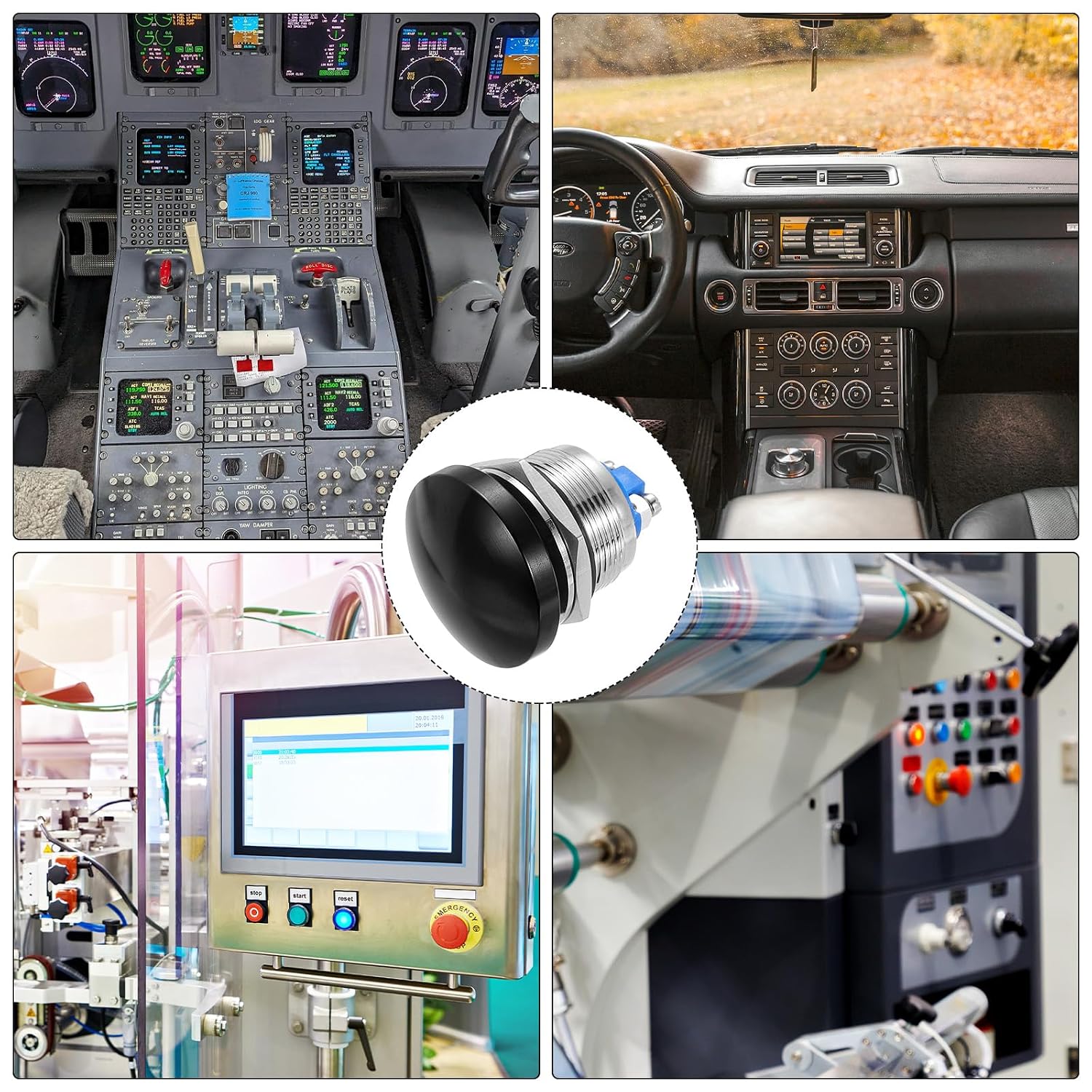

- The Mushroom Head Push Button Switch usually used to control the on-off of the circuit, by pressing the button to change the on-off state of the circuit, commonly seen in the need for high security occasions, such as elevators, cranes, etc., this switch can be used as an emergency stop button, used to quickly cut off the power or control signal in an emergency
- Product Name: Mushroom Head Push Button Switch; Button Material:Metal Mounting size: 22mm/0.9 Inch; Total size: 30.5 x 35mm/1.2 x 1.4 Inch; Pin number: 2P(1NO); Poles : SPST; Waterproof Level: IP65 Action Type: Momentary; Rated Current: 3A; Rated Voltage: 5V/12V/24V/24V/110V/120V/250V DC/AC; Button Color: Black; Package Content: 2 x Switches, 2 x Hexagon Fastening Nut, 2 x Rubber Seal Ring
- 1.Good Quality sealing ring prevents water from entering; 2.Durable stainless steel shell button material; 3.Suitable for a variety of electronic devices and household appliances
- Prepare necessary installation tools, such as screwdrivers and wrenches. Strip the insulation layer off the wires and connect the wires to the corresponding wiring terminals. Secure the button switch to the wall or device
- Please follow the wiring instructions carefully to avoid any electrical risks
| ASIN | B0DB28CKZ9 |
|---|---|
| Color | Black |
| Terminal | Screw |
| Brand Name | MECCANIXITY |
| Unit Count | 2.0 Count |
| Part Number | mef240521ee001012 |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | MECCANIXITY |
| Actuator Type | Push Button |
| Material Type | Metal |
| Mounting Type | Surface Mount |
| Connector Type | Screw Terminal |
| Control Method | Touch |
| Current Rating | 3 Amps |
| Operation Mode | manual |
| Controller Type | Push Button, Ring |
| Number of Items | 2 |
| Contact Material | Metal |
| Operating Voltage | 12 Volts |
| Specification Met | Ip65 |
| Number of Positions | 2 |
| International Protection Rating | IP65 |
