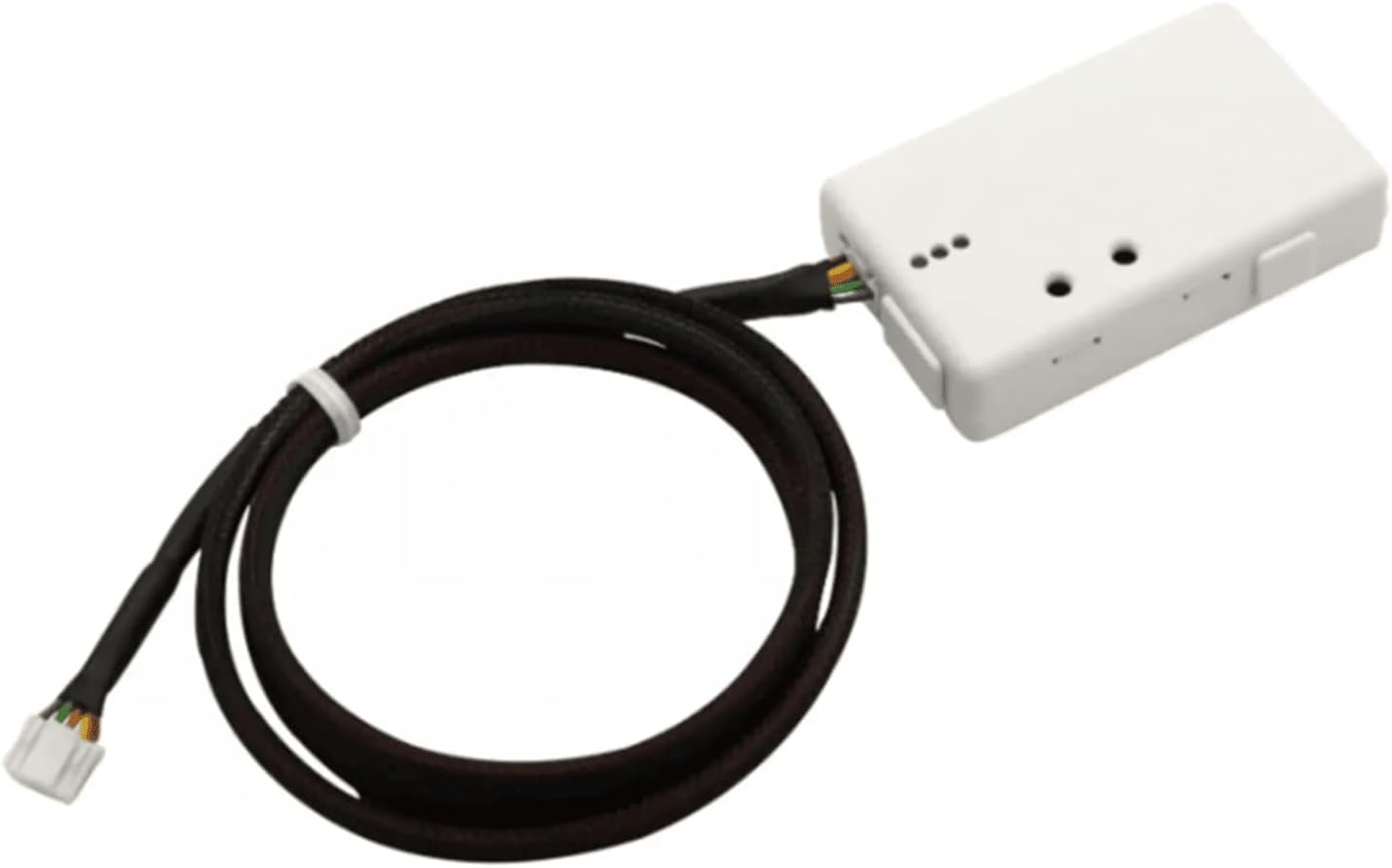

Mitsubishi Electric PAC-USWHS002-WF-2 Wireless Interface Control 2 – Wi-Fi Adapter for M-Series & P-Series Mini Split Systems

The Mitsubishi Electric PAC-USWHS002-WF-2 Wireless Interface 2 is the latest generation of the Kumo Cloud Adapter, designed to bring smart control and wireless access to your Mitsubishi mini-split systems. With this Wi-Fi adapter, you can remotely monitor, control, and schedule your indoor units through the intuitive Kumo Cloud mobile app or web interface. This updated version supports simultaneous use with the MHK1 remote controller (and MHK2), providing greater flexibility in control options. Due to specific power requirements, only select indoor units—SEZ, SVZ, SLZ, MVZ, P-Series, and City Multi—can power both the MHK1 and the Wireless Interface 2 at the same time. Please verify compatibility with your indoor unit and refer to the Mitsubishi controller compatibility chart before installation. Once connected via the CN105 port, this compact device allows wireless control using a 2.4 GHz Wi-Fi network only. It is not compatible with 5 GHz networks and can connect only to Wi-Fi channels 1–11. For optimal performance, connect to a 2.4 GHz-only SSID or ensure your dual-band router can manage 2.4 GHz-only devices effectively. The interface also enables voice control via Amazon Alexa and Google Assistant, offering a true smart-home experience. Security is built in, with AES encryption and PSK authentication to protect your network connection. It features a Bluetooth pairing mode, reset button, and three LED indicators for easy setup and diagnostics.

• Control your Mitsubishi Electric mini-split systems remotely using the latest PAC-USWHS002-WF-2 Wireless Interface 2 adapter fully compatible with the kumo cloud mobile app and web platform.
• Easily connect your indoor unit to your home Wi-Fi (2.4 GHz only) and manage system settings such as temperature, fan speed, and operating mode through the kumo cloud app or web browser.
• Supports simultaneous operation with MHK1 and MHK2 controllers. Only compatible indoor units (SEZ, SVZ, SLZ, MVZ, P-Series, City Multi, DKS, AMT, and CKS) can power both devices at the same time.
• Works with Amazon Alexa and Google Assistant for hands-free voice control. Easily adjust your comfort settings using simple voice commands.
• Includes a mode button for Bluetooth pairing, making setup with the kumo cloud app on your smartphone fast and user-friendly.
• Connects to 2.4 GHz Wi-Fi networks only (not compatible with 5 GHz). Supports AES encryption and PSK authentication for secure communication.
• Ideal for use in smart homes, enabling integration into existing automation ecosystems via kumo cloud, Alexa, and Google platforms.
• Small and unobtrusive design makes it easy to install and conceal near the indoor unit without cluttering the space.
• Not compatible with MA remote controllers when used with MHK1. Be sure to check Mitsubishi’s compatibility chart for approved indoor units that can power both the interface and MHK1 or MHK2

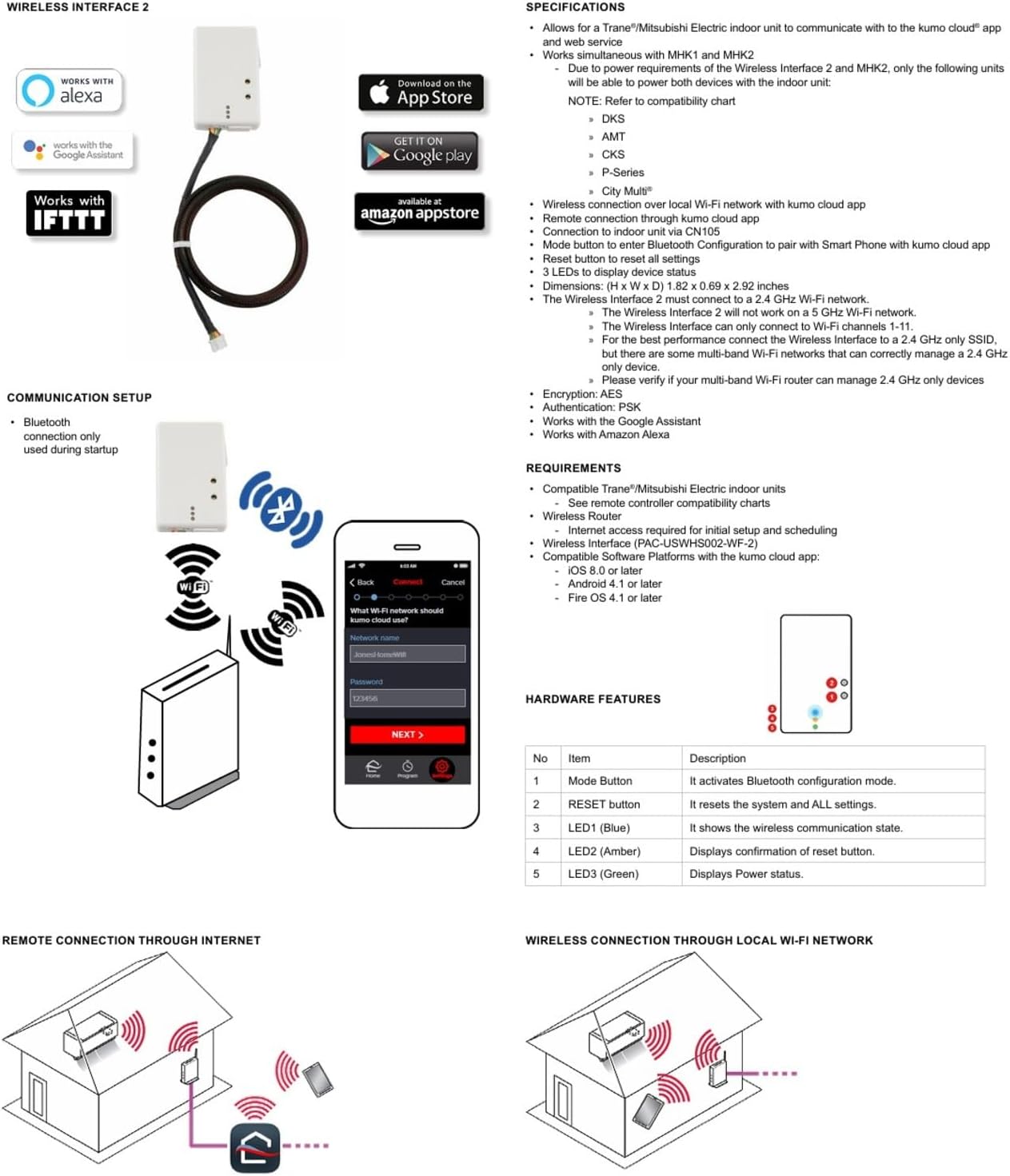

• Connects directly to the indoor unit via CN105 port. Includes reset button, 3 status LEDs, and Bluetooth pairing button for easy configuration and troubleshooting.
