MLX90640-D110 Thermal Imaging Camera Module 32x24 Pixels 110 Degree Field of View I2C Interfaces for RPi ESP32 32x24 Pixels Camera Intrusion Detection

MLX90640-D110 Thermal Imaging Camera Module 32x24 Pixels 110 Degree Field of View I2C Interfaces for RPi ESP32 32x24 pixels camera Intrusion detectionFeatures:Brand new and MLX90640 far thermal sensor array, can detect the radiation energy distributions of objects in the field of view of the lens, after quantification and processing can obtain the surfaces temperature distributions of objects in the field of view, and generate thermal imaging map.Thermal camera module, 32x24, 110 degree field of views, support for RPi, for ESP32 and other main control boards.Temperature sensor module supports I2C interface communication, can be set to fast modes (rate up to 1MHz); noise equivalent temperature difference (NETD) is only 0.1KRMS 1Hz refreshing rate, good noise performances.On board level conversion circuit, for 3.3V/5V working level, programmable frame rate 0.5 to 64Hz (0.25 to 32FPS).Thermal imaging camera module is mainly used for high accuracy non contact object temperature detection, intelligent buildings, intelligent lighting, industrial temperature control, security, intrusion motion detection thermal sensor.Specifications:Working voltage: 3.3V/5VWorking current:＜23mACommunication interface: I2C (address 0x33)Angle of view (horizontal viewing angle x vertical viewing angle): 110× 75.Working temperature:-40℃-85℃Targets temperature:-40℃-300℃Absolute accuracy: 2℃ (room temperature 0 ~ 50℃ rate: 0.5Hz-64Hz (programmable setting)Size:Approx. 28x16mm/1.1x0.63inchFixing hole size: 2.0mmPackage Includes:1x Thermal Imaging Camera ModuleNote:1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

• MLX90640 far thermal sensor array, can detect the radiation energy distributions of objects in the field of view of the lens, after quantification and processing can obtain the surfaces temperature distributions of objects in the field of view, and generate thermal imaging map.
• Temperature sensor module supports I2C interface communication, can be set to fast modes (rate up to 1MHz); noise equivalent temperature difference (NETD) is only 0.1KRMS 1Hz refreshing rate, good noise performances.
• Thermal imaging camera module is mainly used for high accuracy non contact object temperature detection, intelligent buildings, intelligent lighting, industrial temperature control, security, intrusion motion detection thermal sensor.

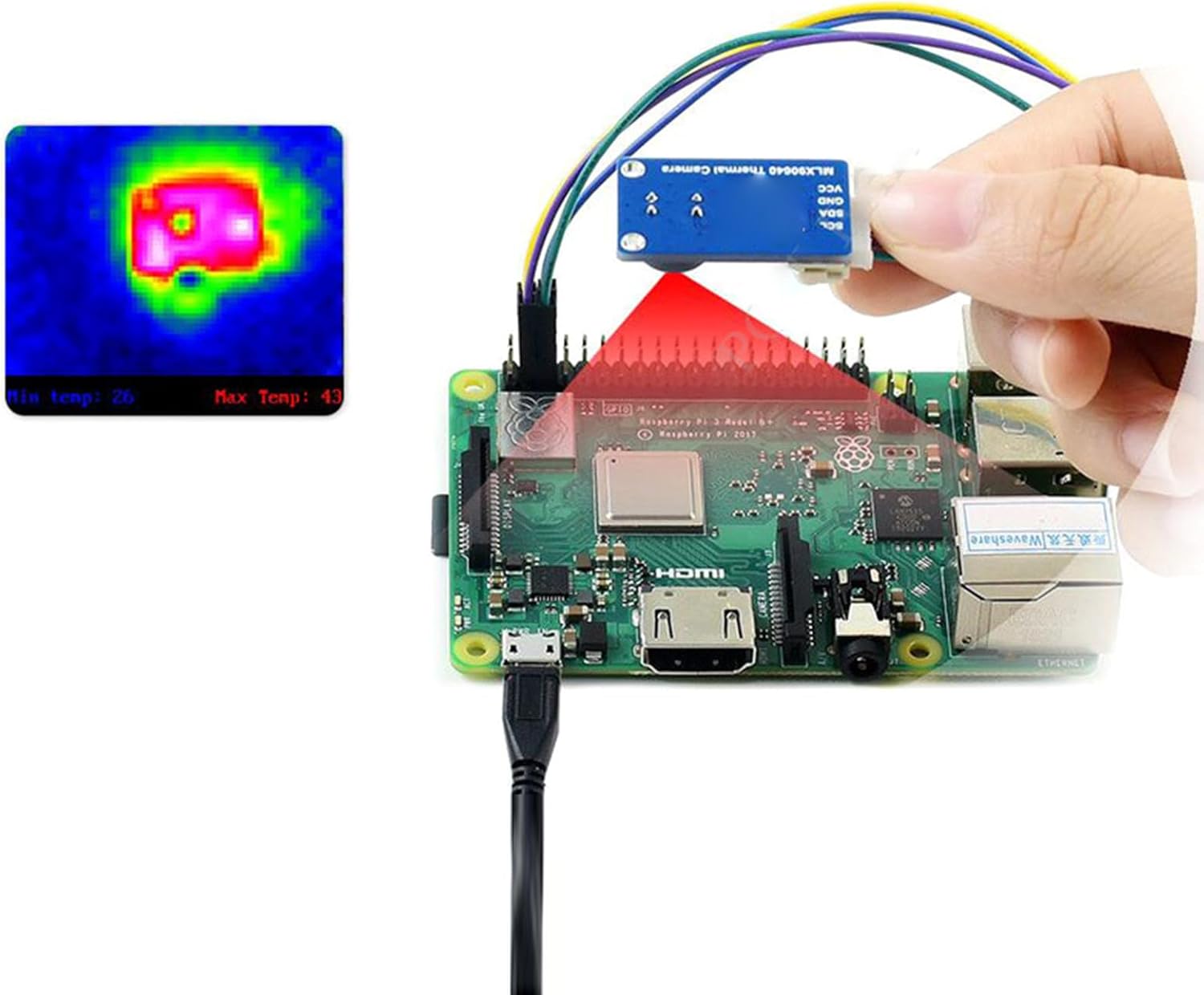

• Thermal camera module, 32x24, 110 degree field of views, support for RPi, for ESP32 and other main control boards.
• On board level conversion circuit, for 3.3V/5V working level, programmable frame rate 0.5 to 64Hz (0.25 to 32FPS).
