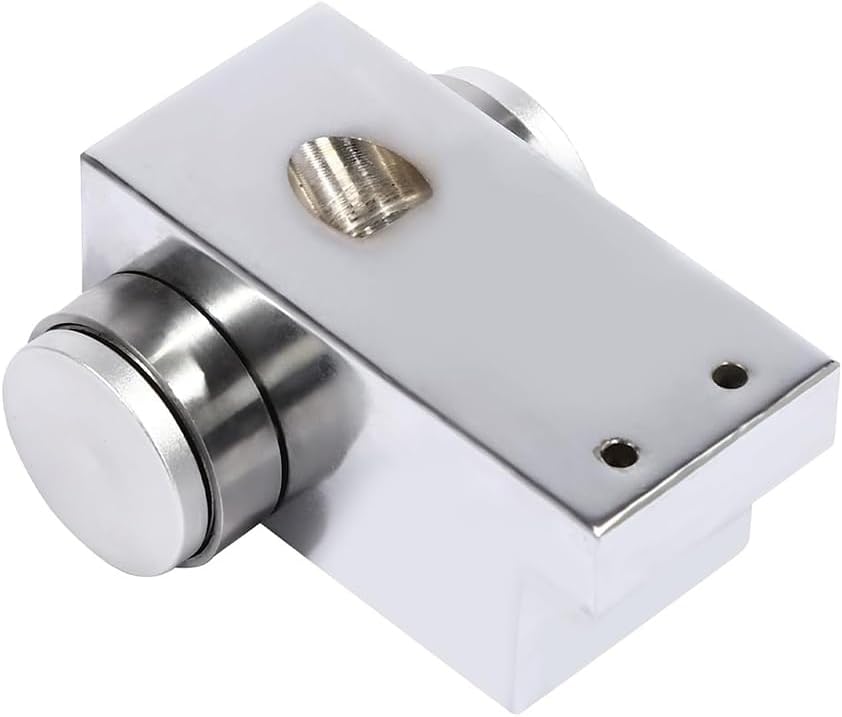

Pencil Hardness Tester Paint Coating Film Scratch Tester Kit with 13Pcs Pencils, 500/750/1000g Weights, Scratch Resistance Test with Carry Box for Abrasion Silver,1

The pencil hardness testing method is a simple and fast coating hardness testing method. Our set includes a complete set of tools required for testing, 13 pencils with varying hardness levels, and three weights that allow you to accurately test the hardness of the coating, helping you obtain the desired result.DetailsAnti-slip Knob: It helps secure or remove the pencil while providing you with an anti-slip grip during the process.Smooth Wheels: It can roll without lagging, making your measurement smoother and quicker.ApplicationThis paint scratch test kit is suitable for laboratories, construction sites, automotive manufacturing, and factories. It can identify the hardness of the coating in any direction.SpecificationColor: SilverMaterial: SteelProcess: ElectroplatingNumber of Pencils: 13Pencil Specification: 6B-HB-6HWeight Specification: 1*500g/1.1lbs(Tool-integrated), 2*250g/0.55lbsPencil Tip Load: 1000g/2.2lbs, 750g/1.65lbs, 500g/1.1lbsWorking Temperature: 23±2°C/73.4±35.6℉Relative Humidity: 50±5%RHAngle between Pencil and Tested Surface: 45 °Tool Box Size: 22*18*6cm/8.66*7.09*2.36inPackage Size: 24*20*6.5cm/9.45*7.87*2.56inGross Weight: 2.45kg/5.4lbsPackage Included1 * Pencil Hardness Tester2 * 250g Weights13 * Pencils1 * Eraser1 * Utility Knife1 * Pad Block1 * English Instruction1 * Tool Box

• High-Quality Construction: Crafted from durable steel with an electroplating ps, ensuring longevity, resistance to cracks, and high performance in all conditions.
• Accurate Measurement: Pencil hardness tester has three different weights(The tool comes with a 500g weight.) and 13 pencils(6B to 6H) can help you accurately measure the ability of the coating to resist deformation.
• Testing Requirement: Keep the pencil lead at a 45° Angle from the test surface and push the test plate at a speed of 0.5-1mm/s for a distance of at least 7mm. After 30 seconds, wipe with an eraser and observe the results
• Thoughtful Design: The inserted pencil exhibits a precise 45° angle and three-point contact with the tested surface, making it easier to push the instrument and complete the testing process
• Application: Our pencil hardness testing kit is suitable for laboratories, construction sites, automotive manufacturing, and factories. It can identify the hardness of the coating in any direction.
