QCAA 32" Push Bar Panic Exit Device Rim Type, ANSI Grade 1 Certified, UL Listed, with Entrance Function Exterior Lever Lock, Matte Black, 1 Set, Made in Taiwan

1. Panic Exit Device Specifications: Hand: Non-Handed Finish: Matte Black Strike: 600 Rigid Strike Standard Latch Bolt: Stainless Steel, 3/4" Throw Dead Latch Bolt: Stainless Steel Dogging Feature: 1/2 Turn Hex Dogging Standard Door Size: Door Width 36" Minimum Stile Width: 3-35/64" (90 mm) Door Thickness: 1-3/4" to 2" Thickness Standard Projection: Push Bar Neutral 2-15/32" (63 mm) & Push Bar Depressed 1-49/64" (45 mm) Mounting Height: 41" from CL to Finished Floor ANSI: Certified ANSI/BHMA A156.3 Grade 1 Standard 2. Panic Exit Device- Features: a) ANSI/BHMA A156.3, Grade 1 b) Non-Handed c) High Shock-Resistant Latching Mechanical Design for Protection from Vandalism d) All Inside Components Being Made of Either High Rust-Resistance Alloy or Heavily Electro-Plated Steel, No Corrosion Concerned 3. Outside Lever Trim Features: a) Entrance Function b) Known Market Branded C Keyway, 6 Pins c) Applicable for Door Thickness 35 mm to 55 mm d) 2 Solid Brass Nickel Plated Keys Included e) 1 Reinforcing Plate for Extra Reinforcement to Outside Lever Trim f) Matte Black Finish >

• Length of Panic Exit Device: 32"
• Applicable for 30" to 36" Wide Doors, Cut to Size Doable
• ANSI Grade 1 certified & UL listed; with Dogging Hex Key
• with Entrance Function Outside Lever Trim: Applicable for Door Thickness 35mm ~ 50mm; with 1 Reinforcing Plate; with 2 Keys;

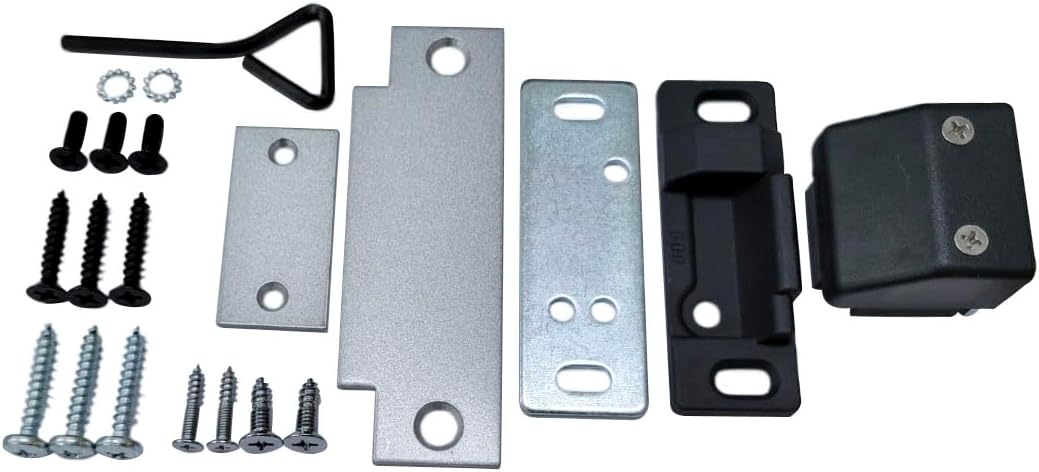

• Mounting Accessories and Hardware Included; Template and Installation sheet included
