RATTMMOTOR 3" 4-Jaw K12-80mm Self-Centering Lathe Linkage Chuck 6600R/Min 40N.m 10KN, Precision Machining Center Wood Metal Lathe Chuck 16mm Through-Hole for CNC Router Engraver Milling Machine
Product details
| Management number | 224863398 | Release Date | 2026/05/09 | List Price | $25.60 | Model Number | 224863398 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅【K12-80mm chuck 3”】1 Chuck disk body + one pair of positive jaws and one pair of negative jaws + 3pcs M6 screws + one locking wrench; Maximum speed: 6600R/Min; Maximum input torque: 40N.m; Maximum static clamping force: 10KN; Weight: 1.9KG; Packing size: 160*160*140CM.
- ✅【Chuck clamping range】Chuck Diameter: 80mm; Internal jaw clamping range: 2-22mm; Internal jaw jamming range: 25-70mm; External jaw clamping range: 22-63mm; Through Hole: 16mm; Screws: M6; Screw Center Distance: 66mm; Positioning: 55mm.
- ✅【Strong versatility】Suitable for a variety of mechanical equipment, high clamping force, small concentricity error, repeatable positioning accuracy ≤ 0.03mm, suitable for high-precision machining.
- ✅【Chuck through hole 16mm】Center through-hole, wide range of use, can be processed bar and other parts, can replace the jaws, the use of connecting flange, easy to use.

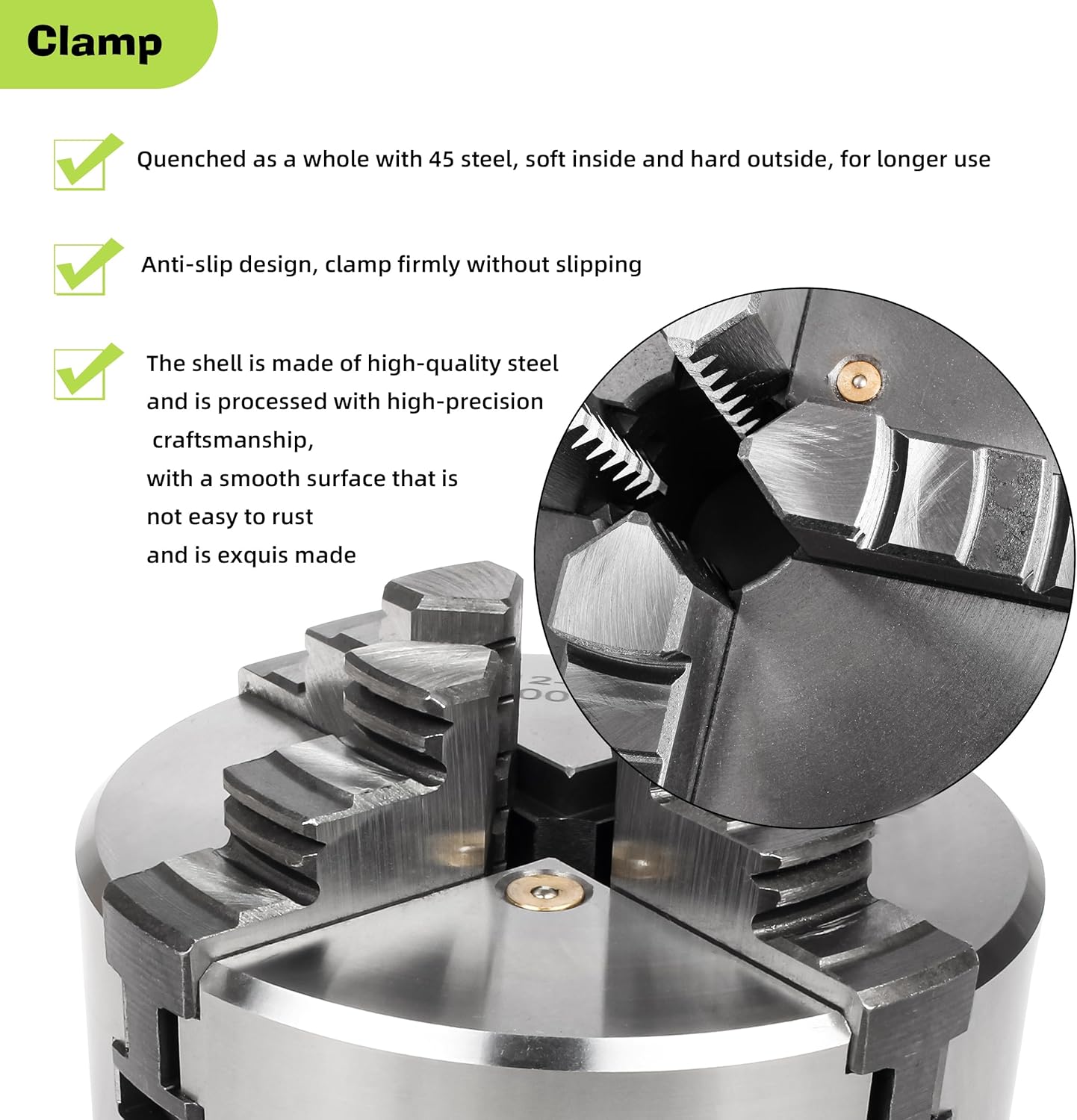

- ✅【Forward and reverse chuck jaws】Jaws are made of No.45 steel hardened as a whole, soft inside and hard outside, more durable to use; jaws with non-slip design, stable clamping without slipping. The shell is made of high-quality steel, processed by high-precision technology, with smooth surface, not easy to rust, and fine workmanship.
| UPC | 769135311862 |
|---|---|
| ASIN | B07Z8VY8X5 |
| Capacity | 22 Millimeters |
| Lock Type | Self Centering |
| Brand Name | RATTMMOTOR |
| Unit Count | 1.0 Count |
| Handle Type | manual wrench, none |
| Item Weight | 2.02 Kilograms |
| Thread Size | 6mm |
| Manufacturer | RTM |
| Model Number | K12-80 |
| Item Diameter | 80 Millimeters |
| Material Type | Stainless Steel |
| Compatible Devices | Lathe |
| Included Components | Chuck Key |
| Manufacturer Part Number | K12-80 |
