RD51160 160KG High Torque Digital Servo Motor Dual-Shaft CNC Aluminum Robot Arm Servo for Robotics RC Vehicles DIY Projects(160kg 270°)

Product Name： RDS51160-24V (RED) Product Description： 24V 160kg Robot Digital Servo 1.Environmental Conditions: ●Storage Temperature Range: -30°C to 80°C ●Operating Temperature Range: -15°C to 70°C ●Operating Voltage Range: 19.2V to 25.2V 2.Mechanical Specifications: ●Size: 65 × 30 × 48 mm ●Weight: 163 g ●Gear Ratio: 357 ●Bearing: Double bearing ●Connector Wire: 300 ± 5 mm ●Motor: 3-pole(s) 3.Electrical Specifications: Operating Voltage: 19.2V, 24V, and 25.2V Idle Current (at stopped): ●4mA at 19.2V ●5mA at 24V ●6mA at 25.2V Operating Speed (at no load): ●0.24 sec/60° at 19.2V ●0.21 sec/60° at 24V ●0.19 sec/60° at 25.2V Stall Torque (at locked): ●155 kg-cm at 19.2V ●170 kg-cm at 24V ●185 kg-cm at 25.2V Stall Current (at locked): ●3.8A at 19.2V ●4.2A at 24V ●4.5A at 25.2V 4.Control Specifications: ●Control System: PWM (Pulse Width Modulation) ●Pulse Width Range: 500 ~ 2500 µsec ●Neutral Position: 1500 µsec ●Running Degree: 180° or 270° (when 500 ~ 2500 µsec) ●Dead Bandwidth: 3 µsec ●Operating Frequency: 50 ~ 330 Hz ●Rotating Direction: Counterclockwise (when 500 ~ 2500 µsec)

• High Torque Capability: Delivers up to 185 kg.cm of stall torque at 25.2V, good for heavy-duty applications such as robotic arms, large-scale automation, and RC vehicles
• Fast Speed and Precision: Features a speed of 0.19 sec/60° at 25.2V, providing rapid and precise movements for applications requiring quick response times and accuracy

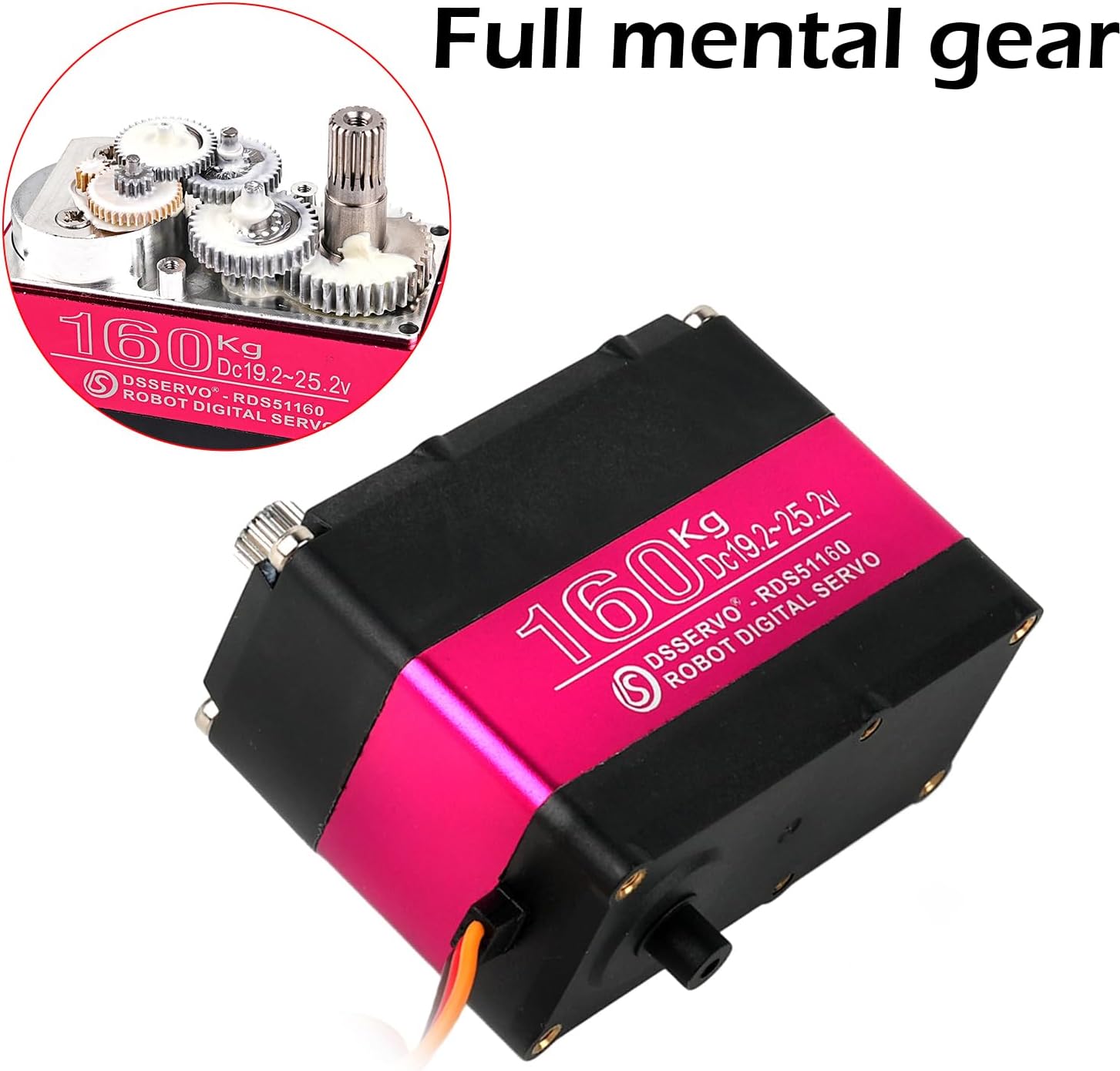

• High quality materials: Built with high-precision steel gears and a CNC aluminum housing, ensuring stable performance and longevity even under high-stress operations
• Versatile Compatibility: Compatible with a wide range of control systems, for Futaba, JR, for SANWA, for Hitec, for Arduino, making it good for robotics, for PTZ cameras, and DIY projects

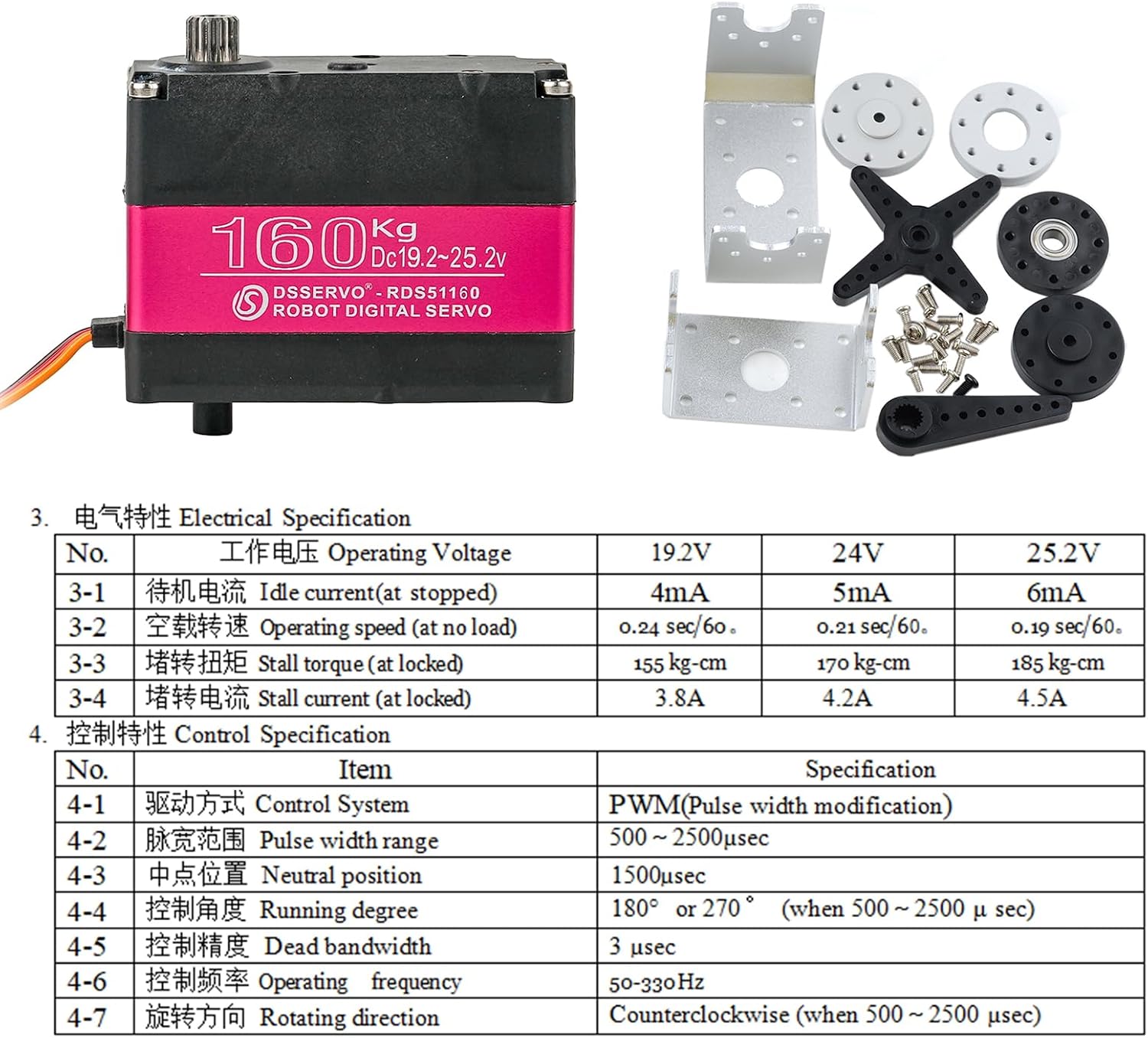

• Complete Installation Kit: Includes two mounting brackets, two aluminum circle discs, and a set of plastic accessories, providing everything needed for quick and easy installation
