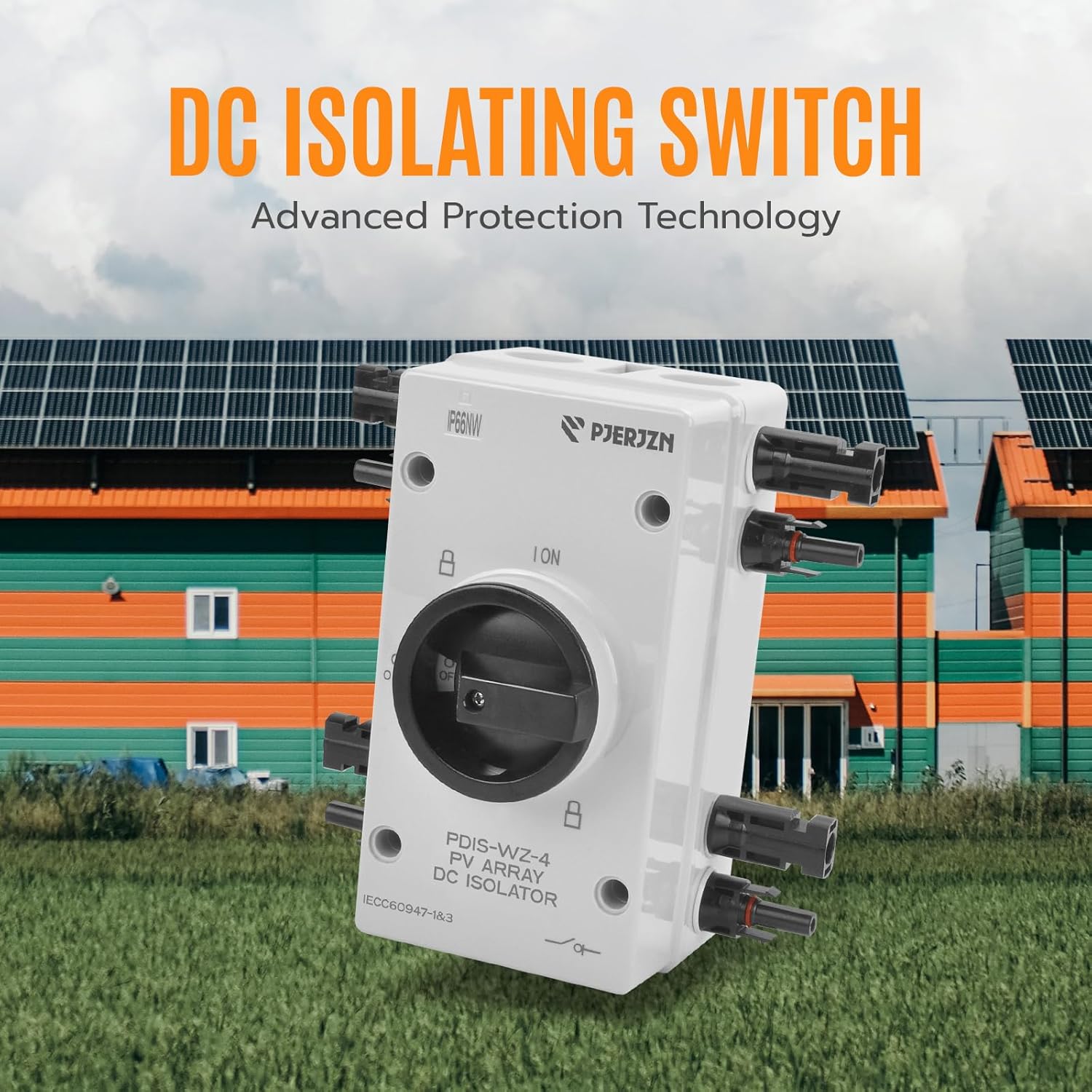

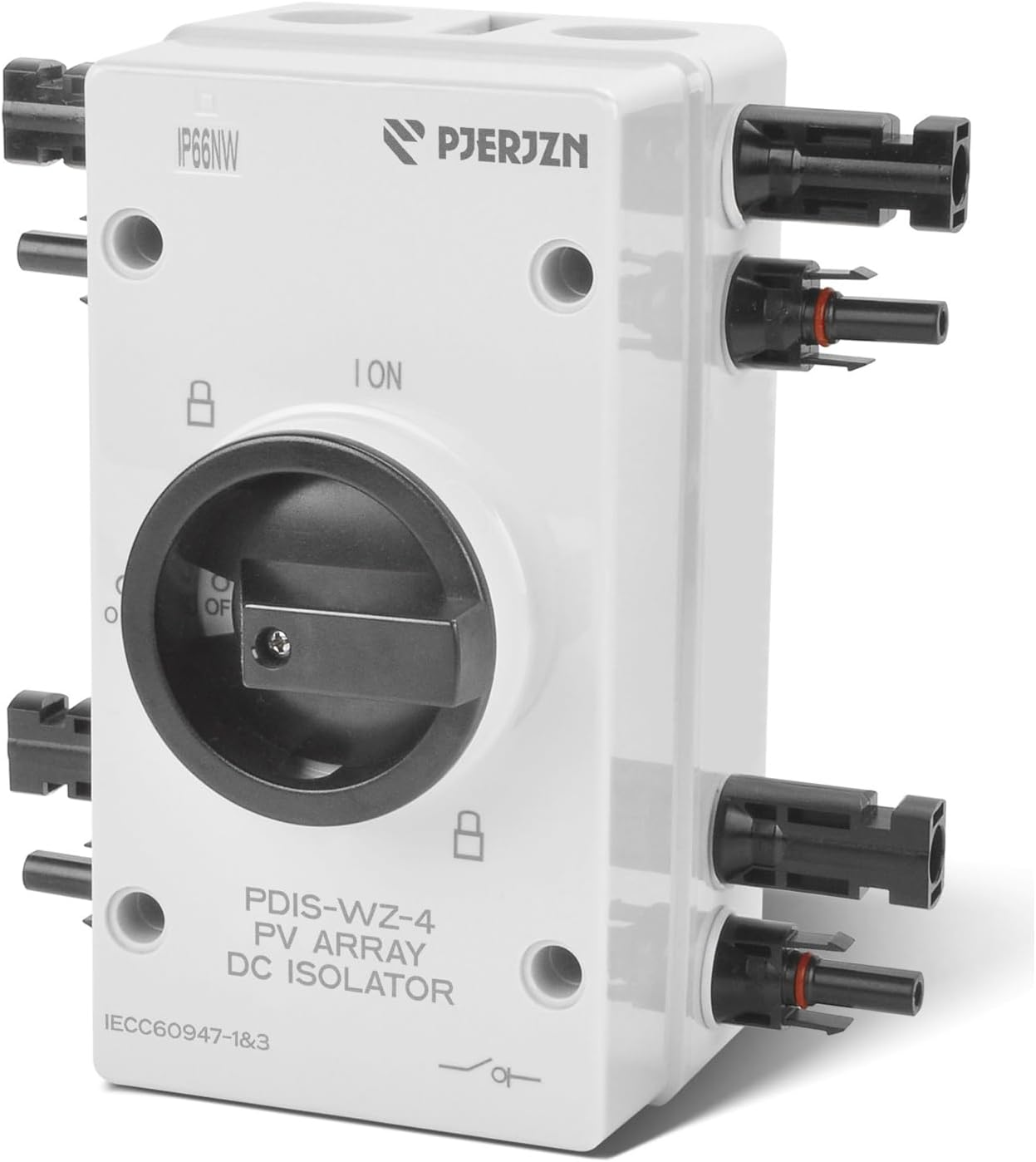

Solar Panel Disconnect Switch 4P 32A 1000VDC Isolator Switch PV System IP66 Waterproof - Ideal for Solar Power Outdoor Isolation Cut Off for Photovoltaic System Repair Replace(1000V 32Amps)
Product details
| Management number | 210755149 | Release Date | 2026/04/02 | List Price | $20.00 | Model Number | 210755149 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 𝐃𝐞𝐬𝐢𝐠𝐧𝐞𝐝 𝐟𝐨𝐫 𝐒𝐨𝐥𝐚𝐫 𝐏𝐨𝐰𝐞𝐫: Specifically engineered for solar power systems, solar panel disconnect switch is capable of efficiently handling the DC output generated by solar panels, providing a reliable and safe solution for power cutoff.
- 𝐒𝐮𝐩𝐞𝐫𝐢𝐨𝐫 𝐐𝐮𝐚𝐥𝐢𝐭𝐲: The 4-Pole 32A 1200V PV solar disconnect switch is made of high quality flame retardant material, flame retardant and high temperature resistant, waterproof and UV resistant, and internally it uses thickened copper parts as well as silver contacts to eliminate arcing and protect the circuit,ensure durability and long-lasting.

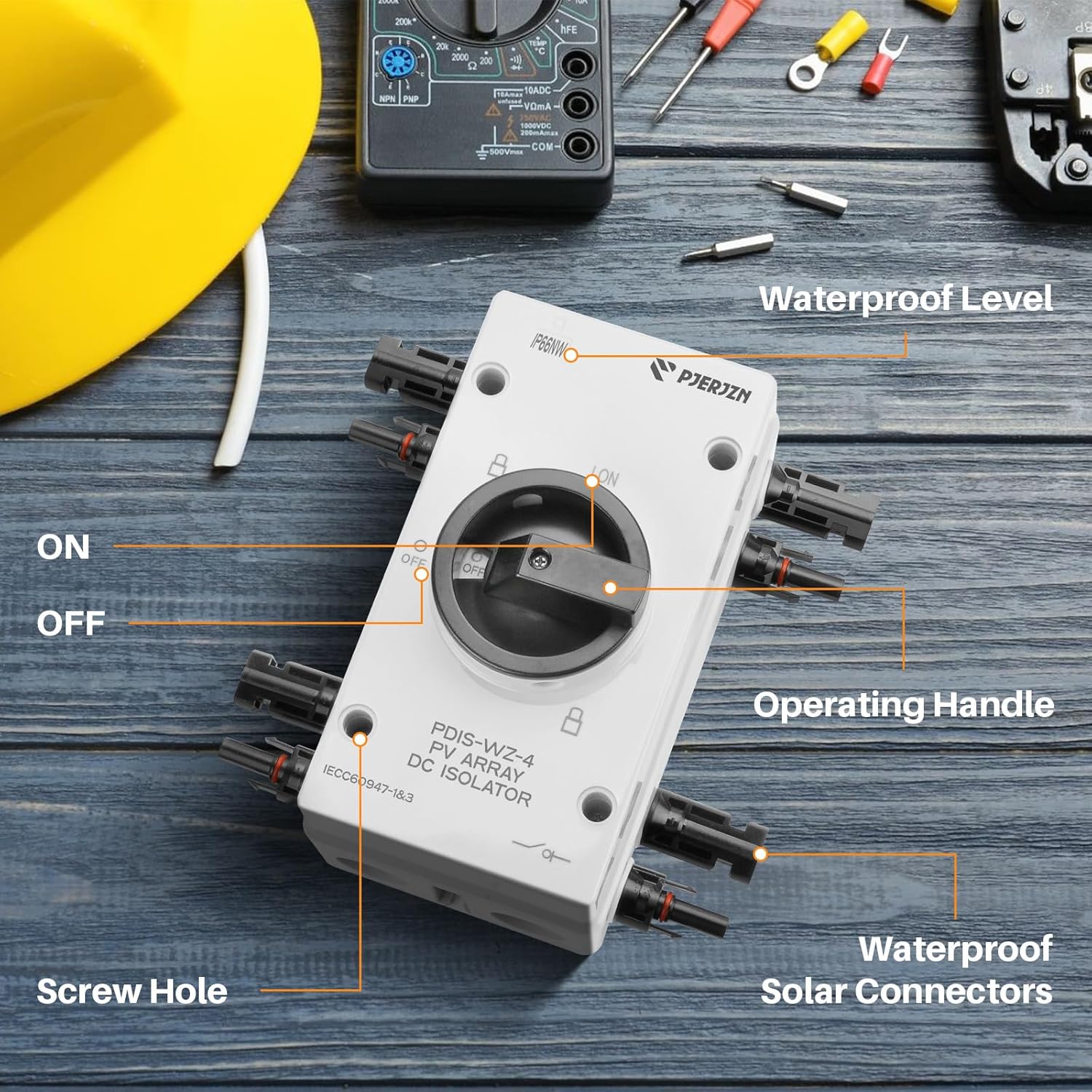

- 𝐄𝐚𝐬𝐲 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧: Isolator switch comes with a user-friendly design, making installation hassle-free. The switch pre-wired installation contains 2 pairs of solar connector mc4 connectors, which allows for quick connection to PV systems, solar PV panels, solar cables and other equipment.The included instructions guide you through an easy setup process for seamless integration into your solar power system.
- 𝐖𝐞𝐚𝐭𝐡𝐞𝐫𝐩𝐫𝐨𝐨𝐟 𝐈𝐏𝟔𝟔: Solar panel disconnect switch can withstand various weather conditions, ensuring uninterrupted power supply even during heavy rain or snow. Its robust construction also protects against dust and other outdoor elements.
- 𝐕𝐞𝐫𝐬𝐚𝐭𝐢𝐥𝐞 𝐚𝐧𝐝 𝐑𝐞𝐥𝐢𝐚𝐛𝐥𝐞: Solar PV Isolator are suitable for a wide range of applications, including residential, commercial, and industrial settings. Whether you need to protect your home appliances or safeguard your business equipment, our DC isolator wwitch are a reliable choice.
- 𝐒𝐩𝐞𝐜𝐢𝐚𝐥𝐭𝐢𝐞𝐬 𝐚𝐧𝐝 𝐒𝐞𝐫𝐯𝐢𝐜𝐞𝐬: You can feel confident in choosing our DC Isolator switches for your electrical protection needs. Package includes 1x dc disconnect,1x solar connectors, 4x screws, 2x screw washer, 1x spanner wrench and 1x product manual.We have found that some of our customers have received damaged products due to logistics, please feel free to contact us, we provide update service, we will continue to upgrade our products as well as packaging.
| Color | White |
|---|---|
| Model | 1000V 32Amps |
| Wattage | 32000 watts |
| Terminal | Blade |
| Brand Name | Pjerjzn |
| Unit Count | 1.0 Count |
| Switch Type | Rotary |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | Pjerjzn |
| Actuator Type | Rotary |
| Material Type | Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 32 Amps |
| Item Type Name | Solar Panel Disconnect Switch |
| Operation Mode | ON-OFF |
| Item Dimensions | 3 x 3 x 9 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 1000 Volts (DC) |
| Included Components | 1x dc disconnect, 4x screws, 2x screw washer, 1x wrench and 1x product manual |
| Number of Positions | 4 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP66 |
