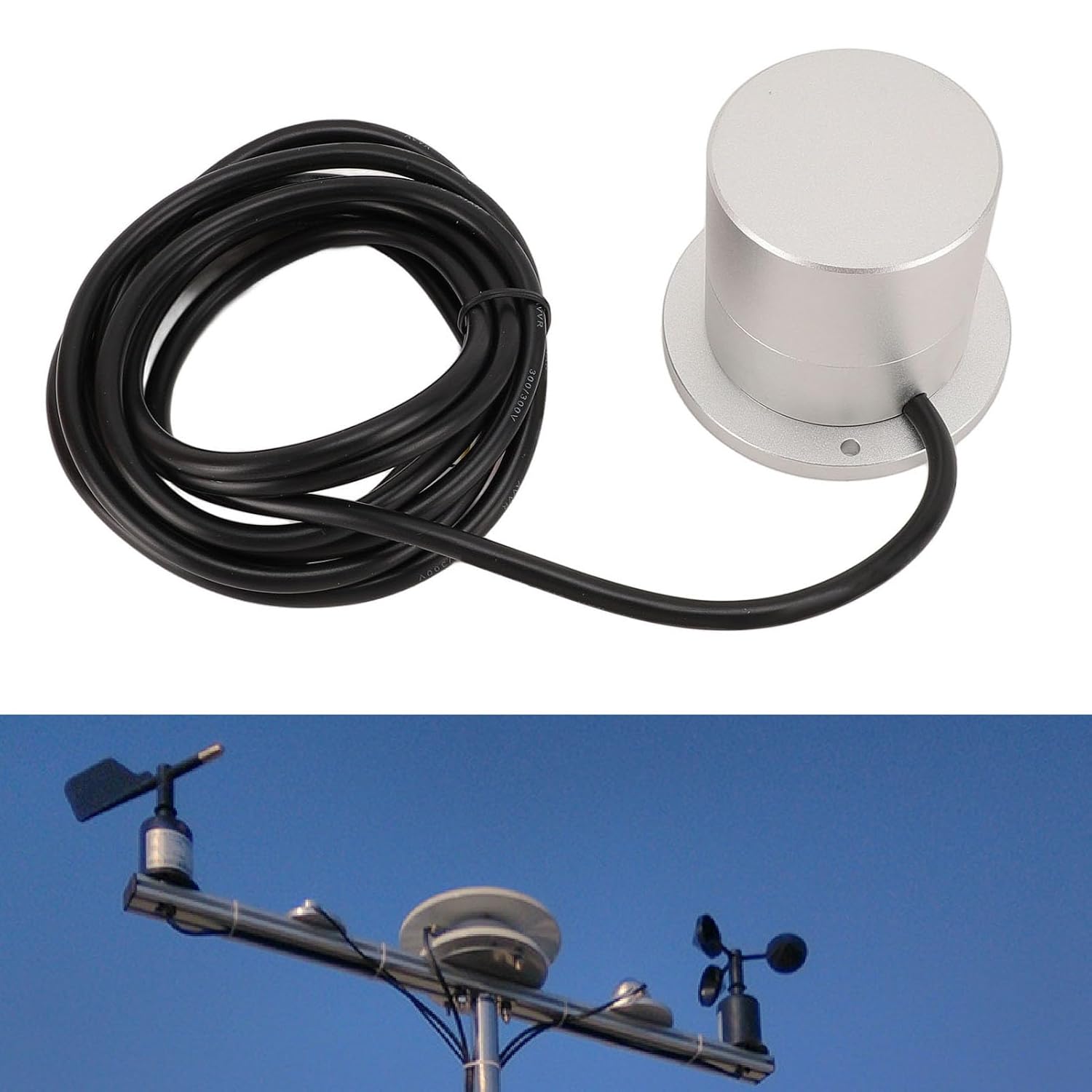

Solar Radiation Sensor for Weather Station, Total Solar Irradiance Sensor 0.3 to 1.1m High Accuracy Compatible with Modbus RS485, for Meteorology Energy (9 to 30V)

Spec: Item Type: Solar Radiation Sensor Wire Color: Red: Output signal RS485: Power Black: Output signal RS485: A+ Yellow: Output signal RS485: B- Green: Output signal RS485: Power Negative Power Supply: 9-30V Output: RS485 (default for Modbus protocol) Product Size: Approx. 65 x 52 x 49mm / 2.6 x 2 x 1.9in, Bottom Hole Distance: Approx. 57mm / 2.2in Material: Aluminum Alloy Spectrum Range: 300-1100nm Resolution: 1W/㎡ Measurement Range: 0-1500W/㎡ Sensitivity: 7-14μV/W ㎡ Accuracy: ±5% Load Capacity: Current Output Impedance RL≤250Ω Voltage Output Impedance RL≥1KΩ Response Time: Cosine Response: Non Linearity: Yearly Variation: Operating Environment: Temperature -40℃ to 60℃; Humidity ≤100%RH Power Consumption: 0.48 W Weight: Approx. 298.00g / 10.51oz For Modbus CRC checking steps :. 1. Preset the 16 bit register to hexadecimal​, call this register as CRC register; 2. Isolate the first 8 bit data with the lower bit of the CRC register and put the result in the CRC register; 3. shift the contents of the register one bit to the right (towards the low bit), fill the highest bit with 0, and check the lowest bit; 4. if the lowest bit is 0: repeat step 3 (shift again) if the lowest bit is 1: the CRC register is iso-orthogonal to the polynomial A001 (1010 0000 0000 0001); 5. Repeat steps 3 and 4 until it is shifted right 8 times so that the entire 8 bit data is all processed; 6. repeat steps 2 to 5 for the next 8 bit data; The final CRC register obtained is the CRC code (the CRC code obtained is low before high). Package List: 1 x Solar Radiation Sensor 1 x User Manual How To Use: 1. Ensure the mounting bracket is parallel to the ground. 2. Use M3 screws and nuts to attach the sensor to the mounting bracket through the two mounting holes on the sensor. 3. Avoid

• [Durable Construction] The sensor features a robust aluminum alloy body and a quartz glass cover made through precision optical cold working. this design effectively shieldes the induction elements from environmental factors ensuring long term durability and consistent performance even in harsh weather conditions.
• [Easy to Use] Equipped with a protective covers that safeguards the instrument during transportation and bad weather this sensor is both user friendly and durable. simply rotate to unscrew the cover when in use. the rs485 modbus output with clear wire color coding (red black yellow green) ensures straightforward installation and integration with your existing systems.

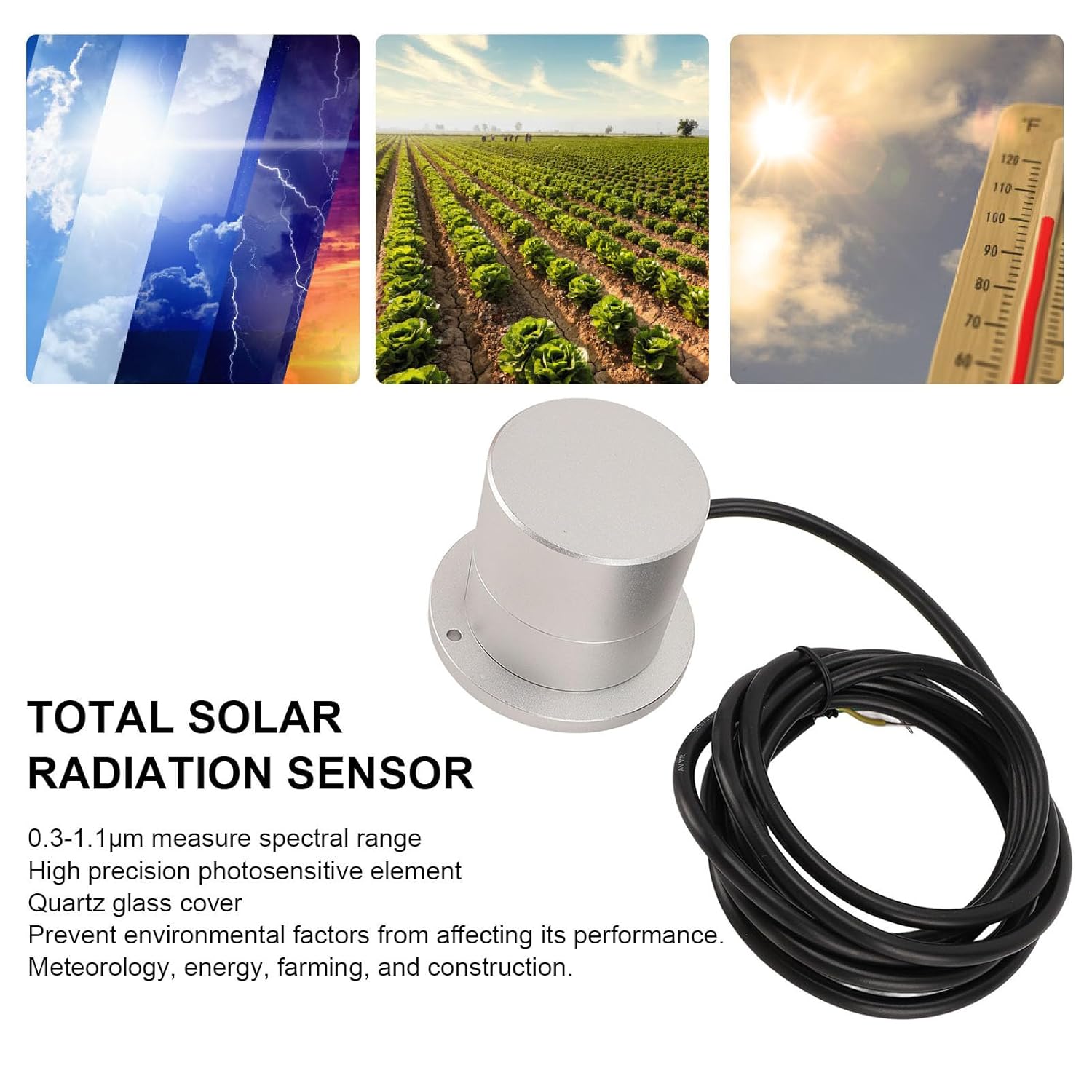

• [High Precision Measurement] This solar radiation sensor accurately measures total solar radiation in the spectrals range of 0.3 to 1.1μm with a sensitivity of 7-14μv/w㎡ and an impressive accuracy of ±5%. its high precision photosensitive elements ensures excellent stability and reliable performance in all conditions making it ideal for professional meteorological and environmental monitoring applications.
• [Reliable Performance] With a power supply range of 9 30v and a low power consumption of 0.48w this solar radiation sensor offers efficient and reliable operation. its compact size (65x52x49mm) and lightweight design (298g) make it easy to install in various settings while its high load capacity and quick response time ensure accurate and timely data collection.
• [Versatile Application] Designed for a wide range of industries this solar radiation sensor is perfect for meteorology energy farming and construction. it can measure reflected radiation when the inductive surface is down and with the shading ring it can also measure scattered radiation providing comprehensive data for various scientific and industrial needs.
