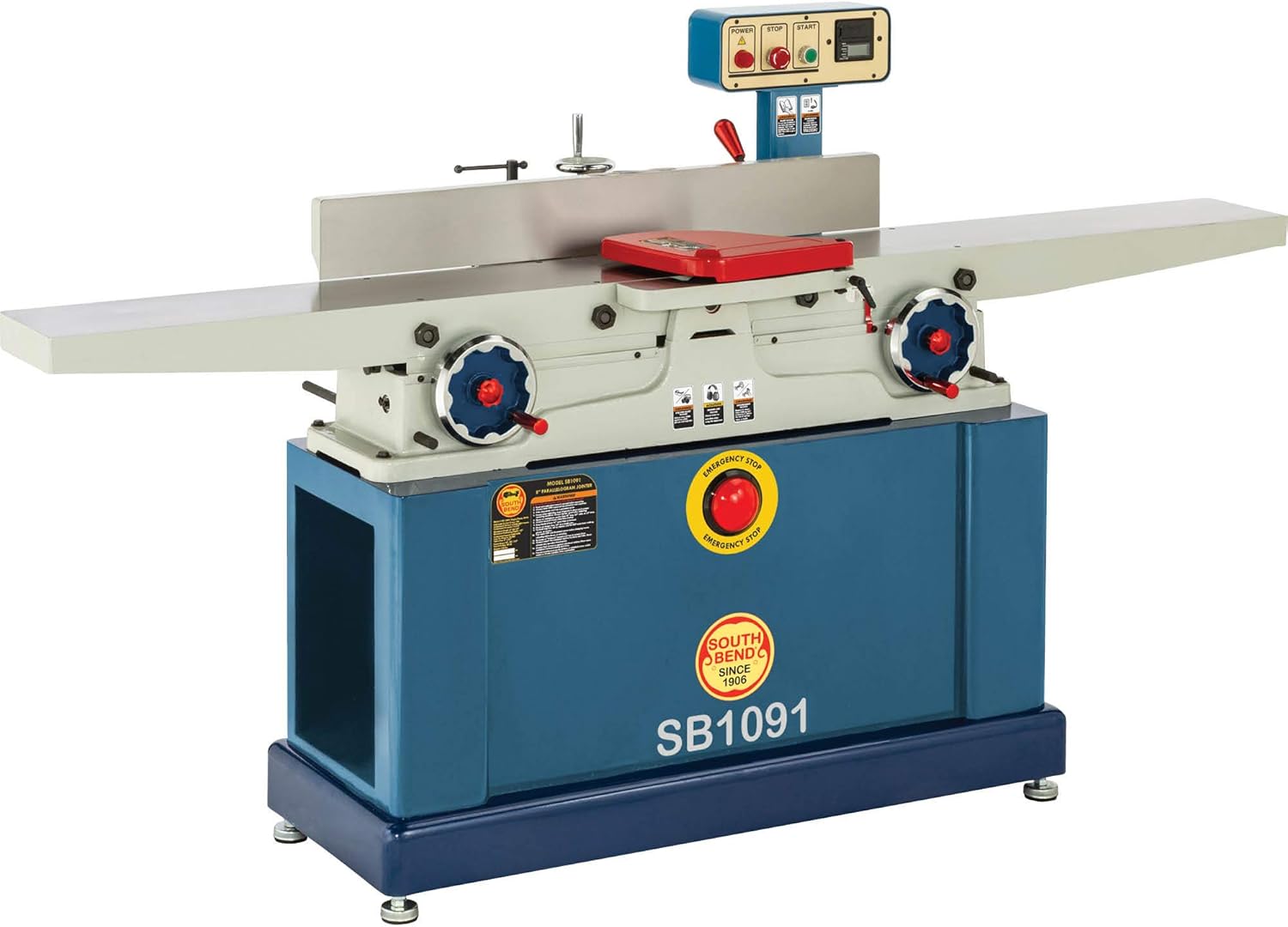

South Bend SB1091-8" Parallelogram Jointer with Helical Cutterhead

With South Bend's new line of woodworking machines, the SB1091 8" Parallelogram Jointer certainly lives up to the name. The parallelogram table setup allows for smooth, precise table alignment. And the digital readout for infeed table height and handwheel adjustment for both tables will give you dead-on table height accuracy. Equipped with a 4-row helical cutterhead with 36 indexable carbide inserts can each be rotated up to three times to expose a new sharp edge, you'll get the smoothest surfaces possible without ever having to sharpen a knife! Other features, such as a rabbeting table, a large Emergency Stop button on the cabinet stand below the cutterhead , pedestal-mounted controls, and center-mounted cast-iron fence with rack & pinion adjustment, make this South Bend jointer truly top-of-the-line! CSA Certified. Made in an ISO 9001 factory. SPECIFICATIONS: Motor: 3 HP, 230V, single-phase, 12A Maximum width of cut: 8" Maximum depth of cut: 1/8" Maximum rabbeting depth: 1/2" Cutterhead diameter: 3-1/16" Cutterhead type: 4-row helical with 36 inserts Insert size & type: 15 x 15 x 2.5mm, indexable carbide Cutterhead speed: 7000 RPM Table size: 8" x 83" Fence size: 38" L x 4-5/8" H Minimum stock length: 10" Minimum stock thickness: 1/2" Dust port size: 4" Footprint: 18" x 46" Overall dimensions: 83" W x 26" D x 46" H Approx. shipping weight: 730 lbs
