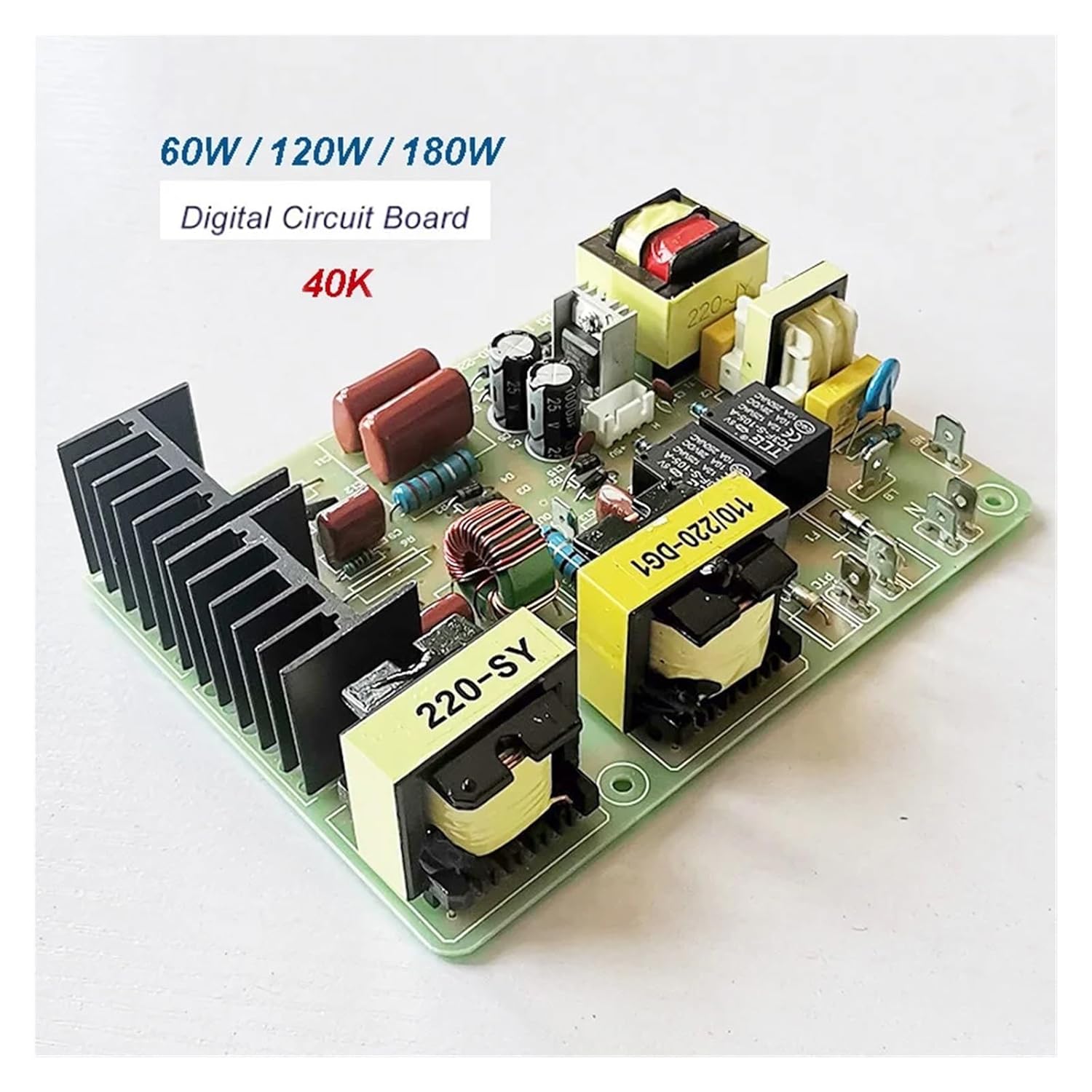

Ultrasonic Cleaner PCB Driver Boards Circuit Board Kit with 40KHz Ultrasounic Transducer(40K180W220V D-DG3)

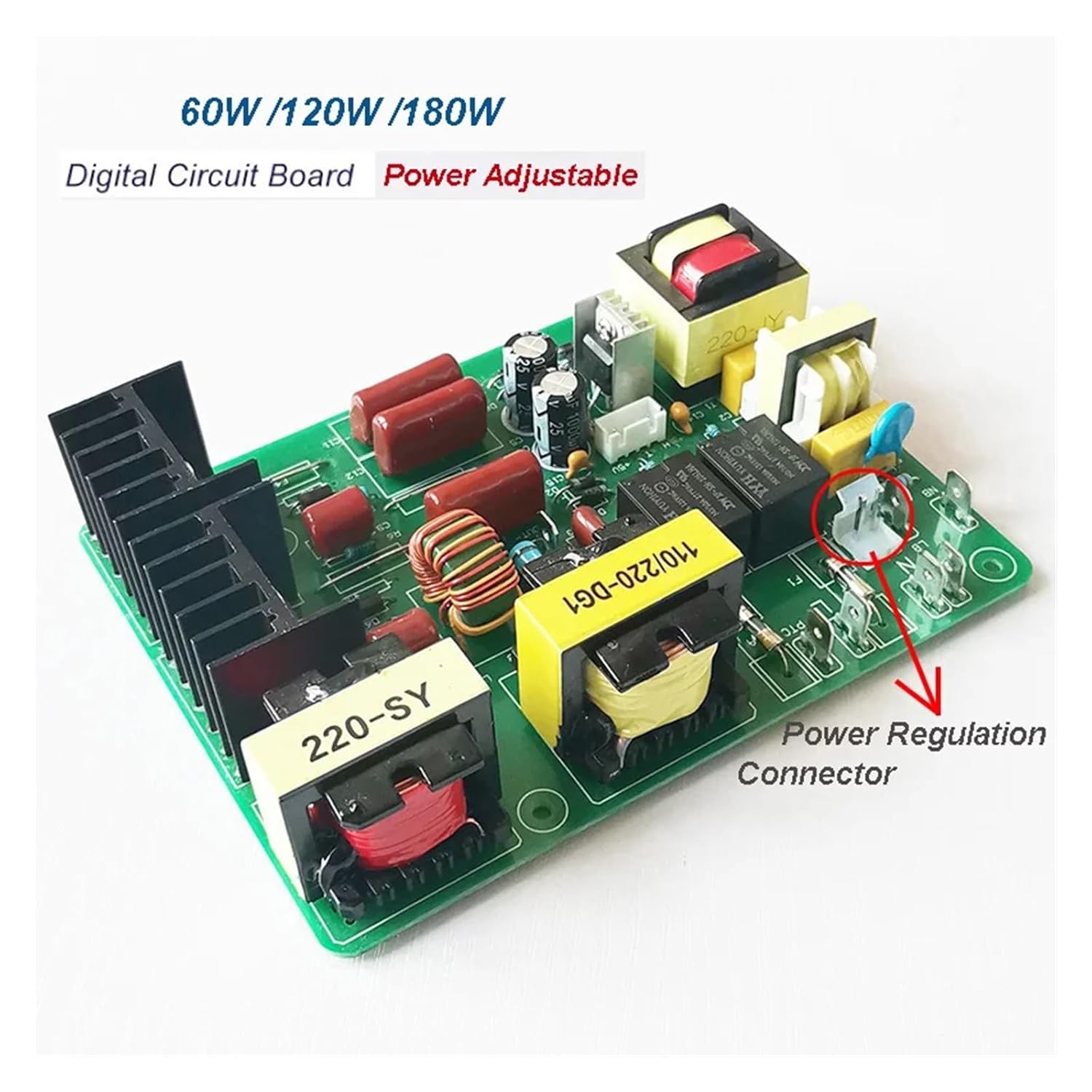

About Type:M- DG3 is Mechnical Ultrasonic PCB Board.D - DG3 is Digital Ultrasonic PCB Board (we can adjust the working time and temperature by digital panel).DD-DG3 is Digital Ultrasonic PCB Board with degassing function (we can adjust the working time and temperature by digital panel).DP- DG3 is Digital Ultrasonic PCB Board with power adjustment(we can adjust the working time and temperature and power).DPD- DG3 is Digital Ultrasonic PCB Board with power and degassing adjustment(we can adjust the working time and temperature and power).Relevant RecommendationThe Main Specification of 40KHZ Ultrasonic PCB Generator (Type: DG1 DG2 DG3)Powe Supply: AC110V (-15/+10%). 60HZ. 60-120w for the 110V PCB GeneratorAC 220V (-15/+10%). 60HZ. 60-180w for the 220V PCB GeneratorEnvironment Temperature: -10-40 Environment Humidity: 35-85%Attentions:60W PCB can drive 1pcs 60w transducer120W PCB can drive 2pcs 60w transducers180W PCB can drive 3pcs 60w transducersSize of PCB generator (Mechanical version which can not connect the display panel)103mm*101mm*40mmSize of PCB generator (Digital version which can connect the display panel)140mm*105mm*40mm working time(0-30mins) and temperature can be adjusted by display panelThe display panel can be selected according to the requirementsSome Common Technical Problem of Ultrasonic Generator& The ultrasonic generator cant power on under noload condition.& After installed we can not power on until lay cleaning fluid& Ultrasonic transducer has two lugsThe positive lay in the middle of two pieces of ceramicThe native near lowermetal column. Please do not make wrong when wiring.& The larger side with screw hole in ceramic transducer which has a function of vibrationcan be stuck in the bottom of cleaningmachine And please make sure the cleaning machine is safely grounding& The ceramic
