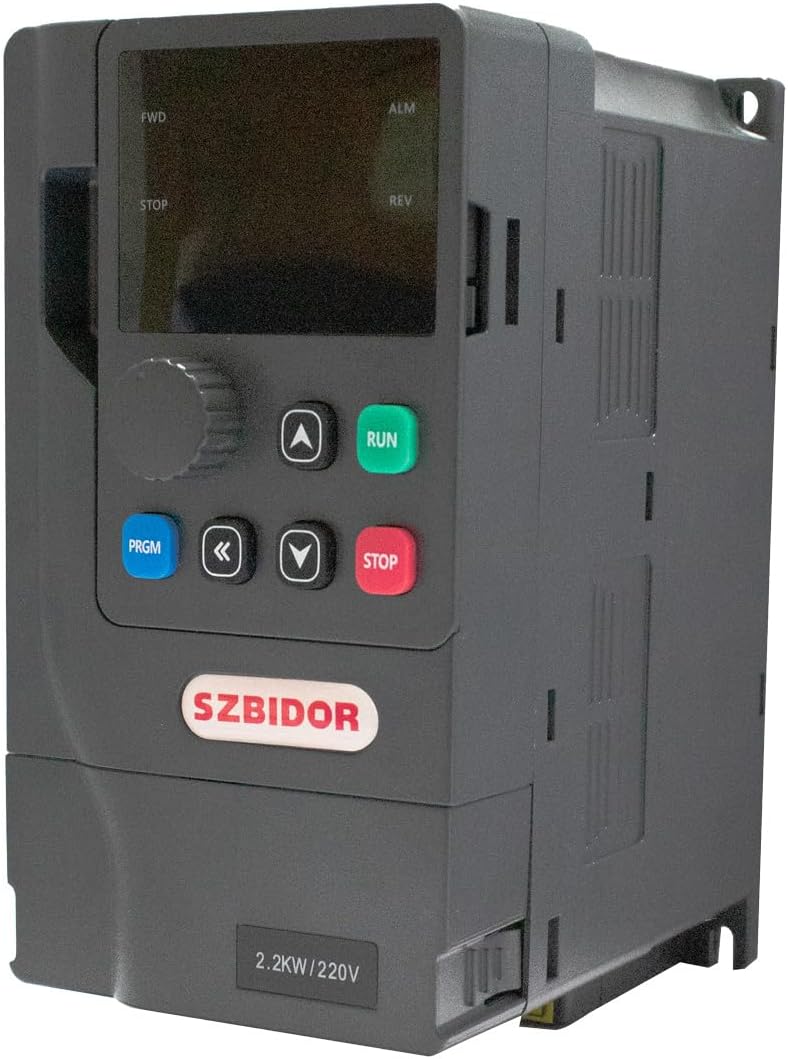

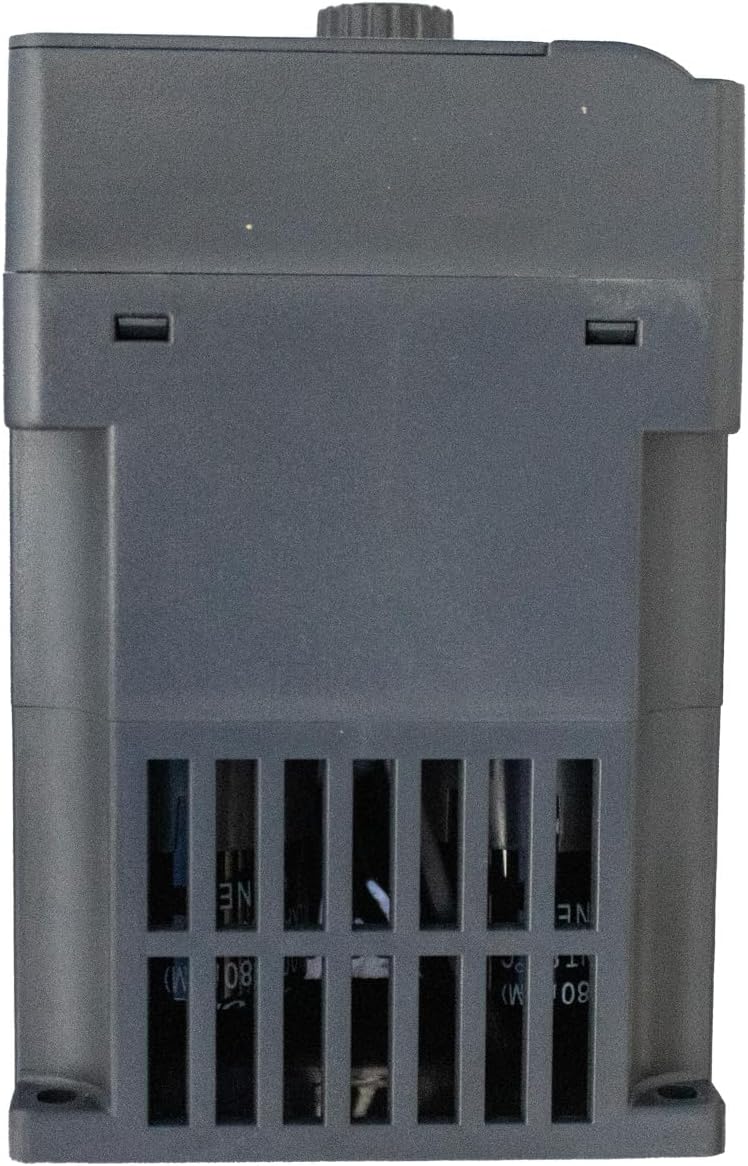

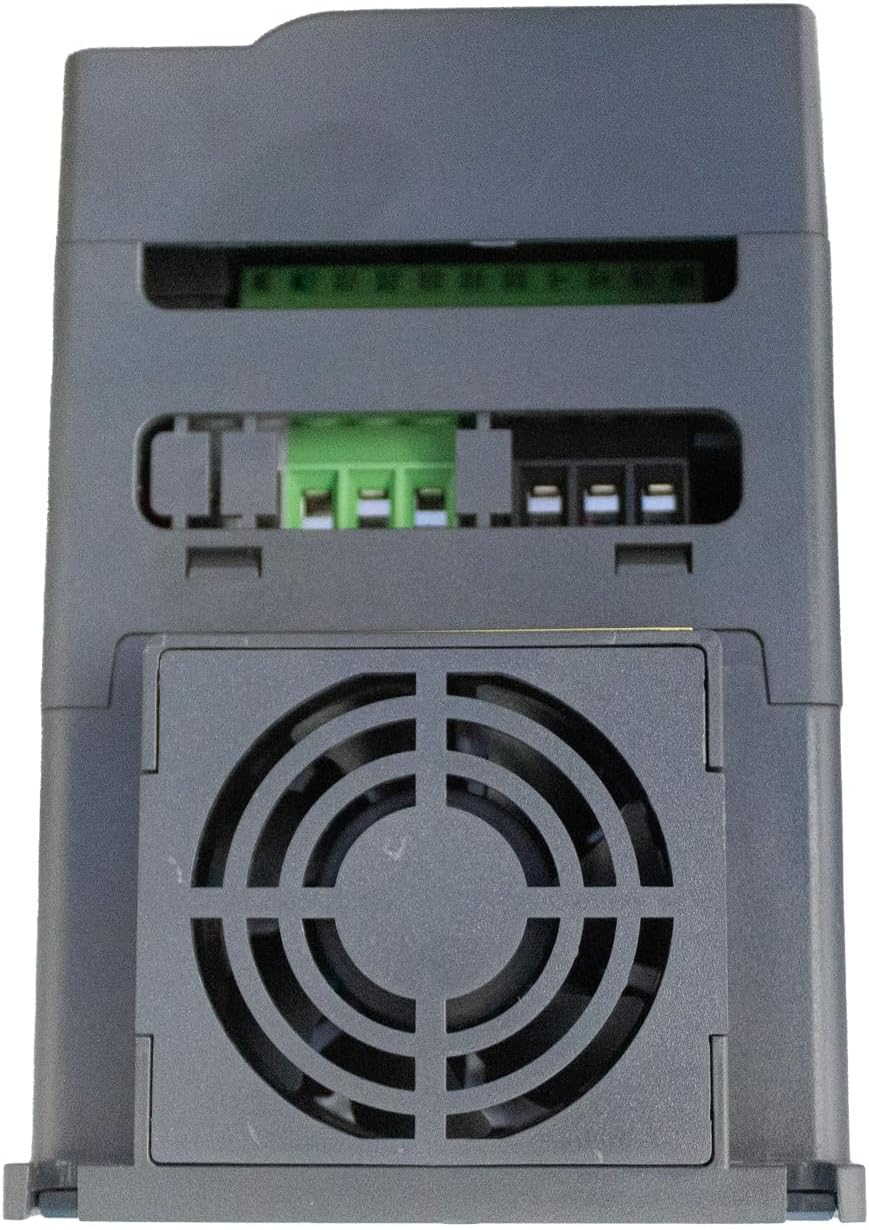

Variable Frequency Drive: AC 220V 2.2KW 3HP 10A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control (Single Phase Input, 3 Phase Output) Black
Product details
| Management number | 210095754 | Release Date | 2026/04/02 | List Price | $24.00 | Model Number | 210095754 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SZBIDOR VFD has better performance stability and adopt PWM vector control to enable motor to achieve high torque in LOW SPEED rotation to increase motor working efficiency. Specification: Application range: Universal Rated current: 10A Input Frequency: 50HZ/60HZ Output Frequency: 0-400 HZ Control Mode: Vector mode Power: 2.2KW, Horsepower: 1HP Input Phase: 1 phase, Output Phase: 3 phase Output voltage adjustable method: PWM control Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit protection Size: Approx. 17x 8.6 x 14.1cm / 6.69 x 3.39 x 5.55inch Weight: 3.2pounds Package List: 1 x Variable Frequency Drive; 1x English User Manual;1x data cable,1xPanel bracket Warranty: We are the original factory, Welcome to consult with our CS make best choice for your exact application. 1 Year replace or refund!
- Input voltage: 220V(+/-15%); Output voltage: 220VAC; Input frequency: 50/60 Hz; Output frequency: 0-3200 Hz; Input phase: 1 phase; Output phase: 3 phase.3HP 10A.
- Application: Spindle Motor, Drill Press, CNC, HVAC, Lathe, Production Lines, Processing Equipments, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor, etc.
- Features: (1)V/F control. (2)With RS485 communication port, using MODBUS RTU protocol. (3)DC cooling fan with low noise, large air volume. Low noise, low electromagnetic interference. (4)Built-in: 8-speed control, simple PLC, PID. (5)Timing operation function. (6)Supported multiple commands.
- The VFD machine is screwed to ensure the stability and reliability of the use, or installed on the rail with ABS flame retardant shell.The triple-proof paint is to improve and extend the life of the fuselage.Built-in chip, provides overload, overheat,Input output phase loss, over/under voltage protection.
- Using Note: ▲Altitude: Less than 1000m above sea level(when higher than 1,000m, every 100 m rise, 1 % reduction). ▲Temperature: -10 ℃ ~ +40 ℃ (when in 40 ℃ ~ 50 ℃, please reduce the amount of use). ▲Humidity: less than 95 % RH. ▲Vibration: less than 5.9 m / s². ▲Storage Temperature:-40 ℃ ~ +60 ℃.
| UPC | 037936121547 |
|---|---|
| Color | Black |
| Voltage | 220 Volts |
| Brand Name | SZBIDOR |
| Display Type | LED |
| Manufacturer | SZBIDOR |
| Material Type | Acrylonitrile Butadiene Styrene (ABS) |
| Included Components | Simple PLC, PID |
| Warranty Description | 1Year manifacturer |
| Item Dimensions L x W x H | 6.69"L x 3.39"W x 5.55"H |
